Intel® Server S2600WF Product Family Configuration Guide
88
Details
Description
CR CR
iPC
AXXCBL620CRCR
MM#
958263
UPC
00735858346191
EAN
5032037106474
MOQ
1

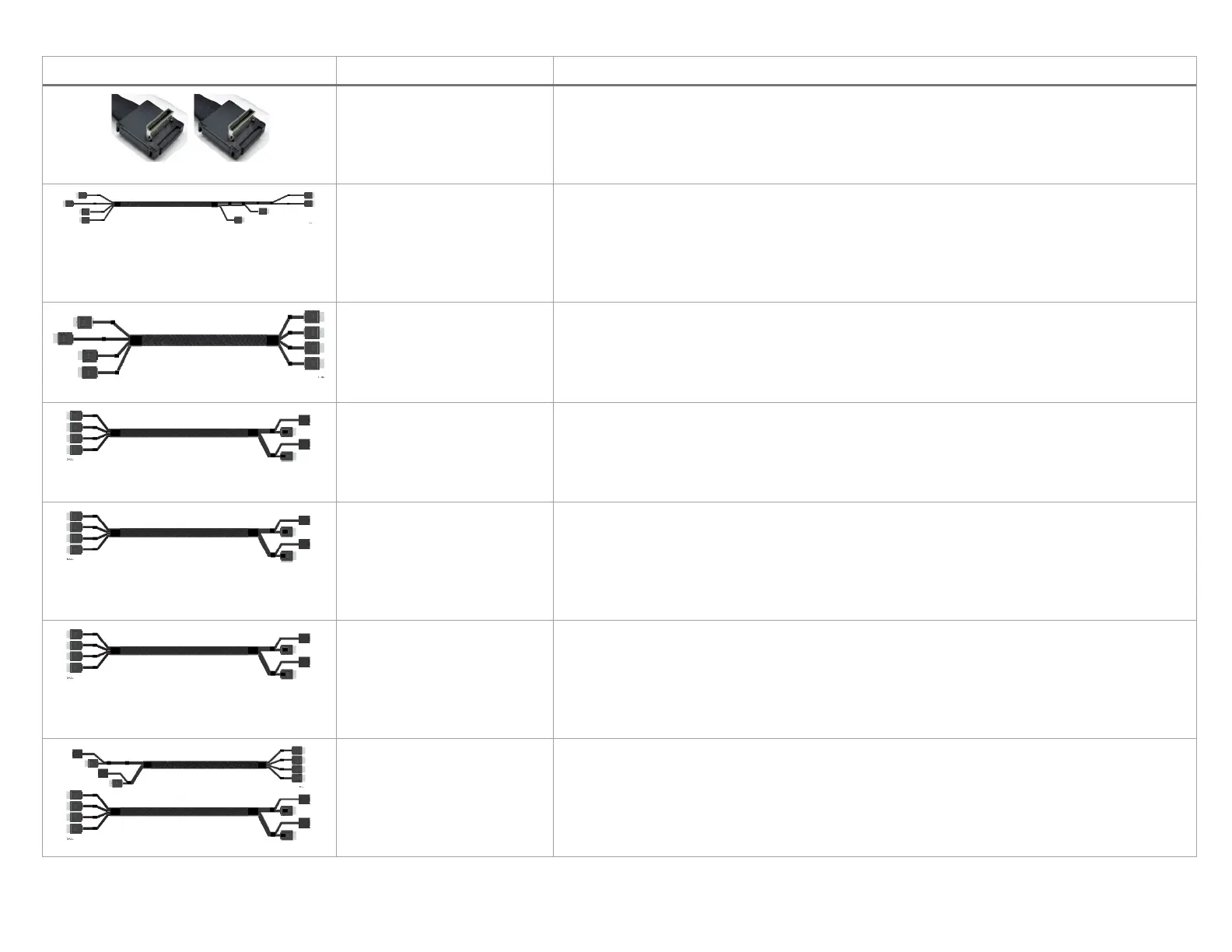

620 mm long, accessory cable kit (1 cable included), right angle OCuLink SFF-8611 connector to
right angle OCuLink SFF-8611 connector
Used to connect a server board OCuLink connector SSD#2 to HSBP drive 10 of the R2312 system
SKUs
iPC
A1U4PRTCXCXK
MM#
958358
UPC
00735858346207
EAN
5032037106481
MOQ
1
1U Retimer accessory cable kit, Riser 2 (1 cable included). Contains the following OCuLink bundled
cable:
945 mm long, four straight OCuLink SFF-8611connectors to four straight OCuLink SFF-8611
connectors
Used in the R1208 to connect AXXP3RTX16040 4-Port PCIe SSD Retimer AIC to a PCIe SSD
capable HSBP SSD ports 4-7
iPC
A2U4PRTCXCXK
MM#
958264
UPC
00735858346214
EAN
5032037106498
MOQ
1
2U Retimer accessory cable kit, Riser 2 (1 cable included). Contains the following OCuLink bundled
cable:
815 mm long, straight OCuLink SFF-8611connectors to straight OCuLink SFF-8611 connectors
Used in the R2208, R2216 and R2224 to connect AXXP3RTX16040 4-Port PCIe SSD Retimer AIC to
a PCIe SSD capable HSBP SSD ports (1 cable kit required per retimer installed)
iPC
A1U4PSWCXCVK
MM#
964522
UPC
00735858366502
EAN
5032037121002
MOQ
1
1U 4 port Switch accessory cable kit – 1U 4 port Switch accessory cable kit (1 cable included).
Contains the following OCuLink bundled cable:
890 mm long, bundled cable kit (1 cable included) right-angle OCuLink SFF-8611 connectors to
straight/right angle OCuLink SFF-8611 connectors
Used in the R1208 to connect switch AIC to HSBP PCIe SSD ports
iPC
A2U4PSWCXCXK1
MM#
958266
UPC
00735858346221
EAN
5032037106504
MOQ
1
2U 4 port Switch accessory cable kit, Riser 1 or Riser 2 (1 cable included). Contains the following
OCuLink bundled cable:
755 mm long, bundled cable kit (1 cable included) straight OCuLink SFF-8611connectors to
straight/right angle OCuLink SFF-8611 connectors
Used in the R2208, R2208+8 and R2224 to connect switch AICs to HSBP PCIe SSD ports (SSD ports
depend on installed location of the switch AIC)
iPC
A2U4PSWCXCXK2
MM#
958267
UPC
00735858346238
EAN
5032037106511
MOQ
1
2U 4 port Switch accessory cable kit, Riser 2 or Riser 3 (1 cable included). Contains the following
OCuLink bundled cable:
875 mm long, bundled cable kit (1 cable included) straight OCuLink SFF-8611connectors to
straight/right angle OCuLink SFF-8611 connectors
Used in the R2208+8 to connect switch AIC to HSBP PCIe SSD ports (SSD ports depend on
installed location of the switch AIC)
iPC
A2U8PSWCXCXK1
MM#
958268
UPC
00735858346245
EAN
5032037106528
MOQ
1
2U 8 port Switch accessory cable kit, Riser 1 or Riser 2 (2 cables included). Contains the following
OCuLink bundled cables:
725 mm long, bundled cable kit (2 cables included) straight OCuLink SFF-8611connectors to
straight/right angle OCuLink SFF-8611 connectors
Used in the R2208, R2208+8 and R2224 to connect switch AICs to HSBP PCIe SSD ports (SSD ports
depend on installed location of the switch AIC)
