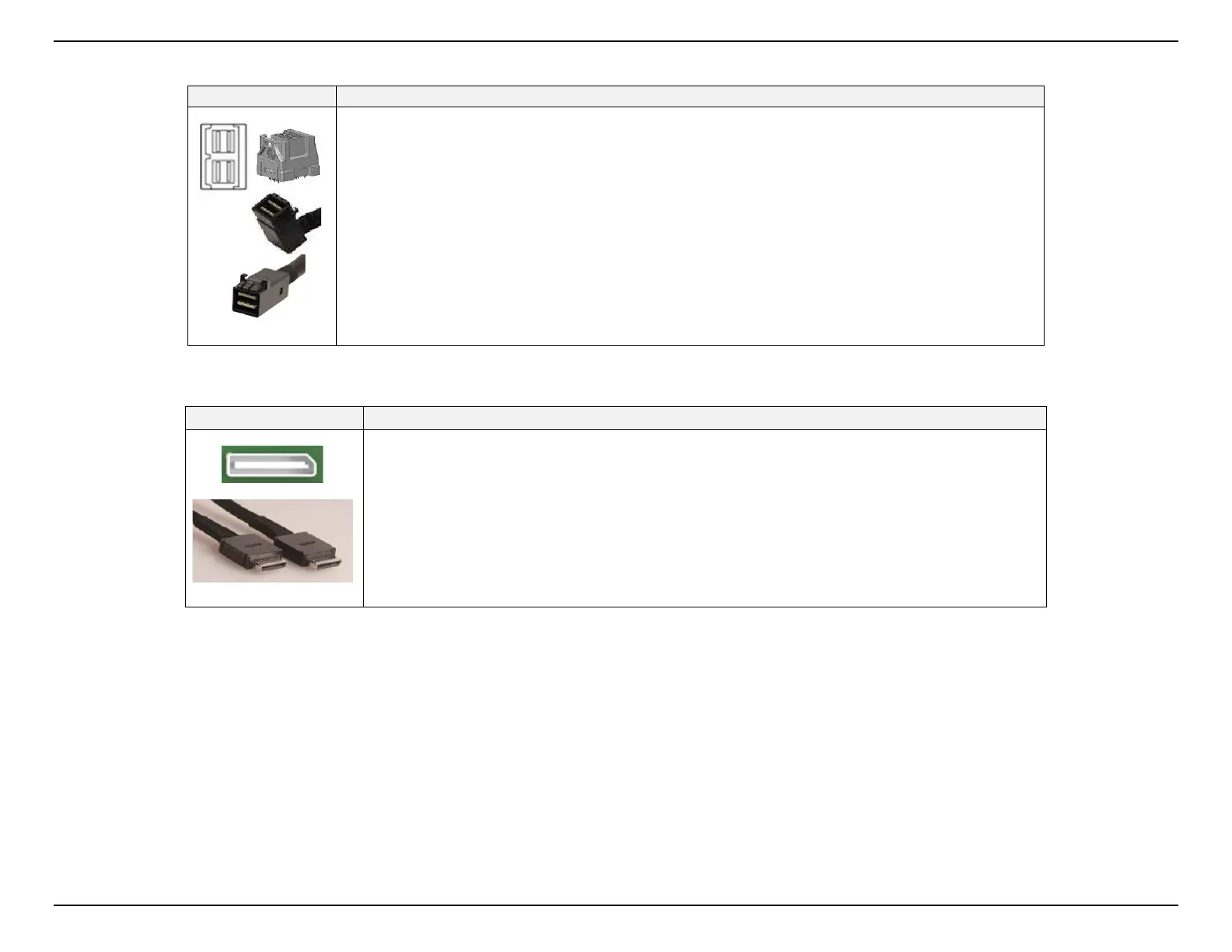

Table 9. Multiple Channel Mini-SAS HD Connectors
Description
Mini-SAS (SFF-8643)
Support for up to 12 Gb/Sec SAS and 6 Gb/sec SATA devices
Where used:
- 12Gb/sec 4x3.5” Hot-Swap Backplane (iPC - FUP4X35S3HSBP)
- 12Gb/sec 8x2.5” Hot-Swap Backplane (iPC - FXX8X25S3HSBP)
- All 12 Gb/sec SAS RAID Controllers
- All 12 Gb/sec SAS Expander Cards
Table 10. OCuLink Connectors
Description
OCuLink 42 pin connector
Support for one PCIe* NVMe SFF SSD
Where used:
- On the server board – 2 or 4 connectors (depending on the board model)
- All backplanes that include support for NVMe SFF drives
- NVMe Switch Card
- Tri-Mode Raid Card
