3.2.6.2 16x2.5” Hot Swap SAS/SATA Data Cable Guide (with SAS expander)
Drive configurations consisting of more than 8 drives may require the addition of a SAS Expander card. In a 16x2.5” system configuration, the
SAS expander RES3FV288 must be installed in any available PCIe add-in slot, or when using RES3TV360, the card must be installed between the
system fans and the backplane of the storage drive bays. The following table lists the features of both expanders:
Note: The onboard SATA ports are not compatible with SAS Expander cards. The onboard SATA ports can be cabled directly to a specified
backplane or drive only

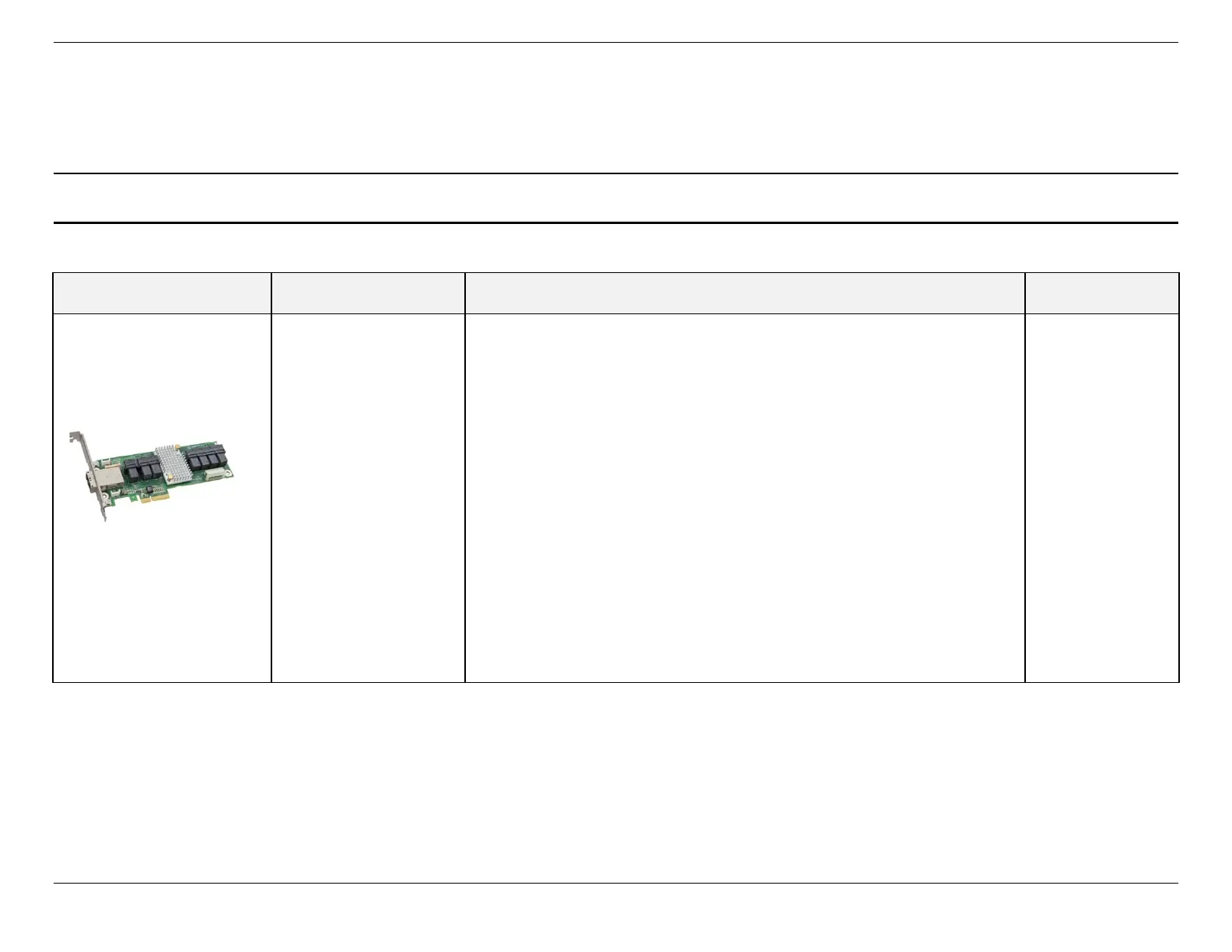

Table 18. SAS Expanders compatible with Intel® Server Board S2600ST Family
Intel Product Code
Order Information
Product Description
Product Type
1.1.1 iPC – RES3FV288
Intel
®
RAID Expander
RES3FV288
MM# – 932895
UPC –
00735858287548
EAN –
5032037067287
MOQ - 5
SAS 3.0 12 Gb/s expander
• Featuring 6Gbps data aggregation for 12Gbps data transfer with 6Gb/s devices
• Low Profile MD2 PCIe* add-in card form factor
• 28 internal ports and 8 external ports
• Redundant dual-port capable for HA and high performance systems
• Power from PCIe x1
• HD Mini-SAS 8643 Connectors
Kit includes: (1) SAS Expander card, (2) HD-HD 250mm Expander-to-RAID card cables,
PCI brackets for Low profile and Full height
Required (sold separately): HD-HD SAS DATA Cables – Expander to backplane – See
Table 19
•
Accessory Kit
