Intel® Server S2600ST Product Family Configuration Guide and Spares/Accessories List
28
1.1.2.1 16x2.5” Dual Port Hot Swap SAS Cable Guide
The 16x2.5” Dual Port hot-swap storage drive configuration is an upgrade option that requires a hot-swap storage drive bay kit - iPC
AUP8X25S3DPDK (Dual Port SAS Drive Kit). A second processor must be installed if more than two PCIe* Raid Add-in Cards are installed on the
server board.
The Mini-SAS cable kits - iPC AXXCBL380HDHD or AXXCBL650HDHD must be ordered separately.

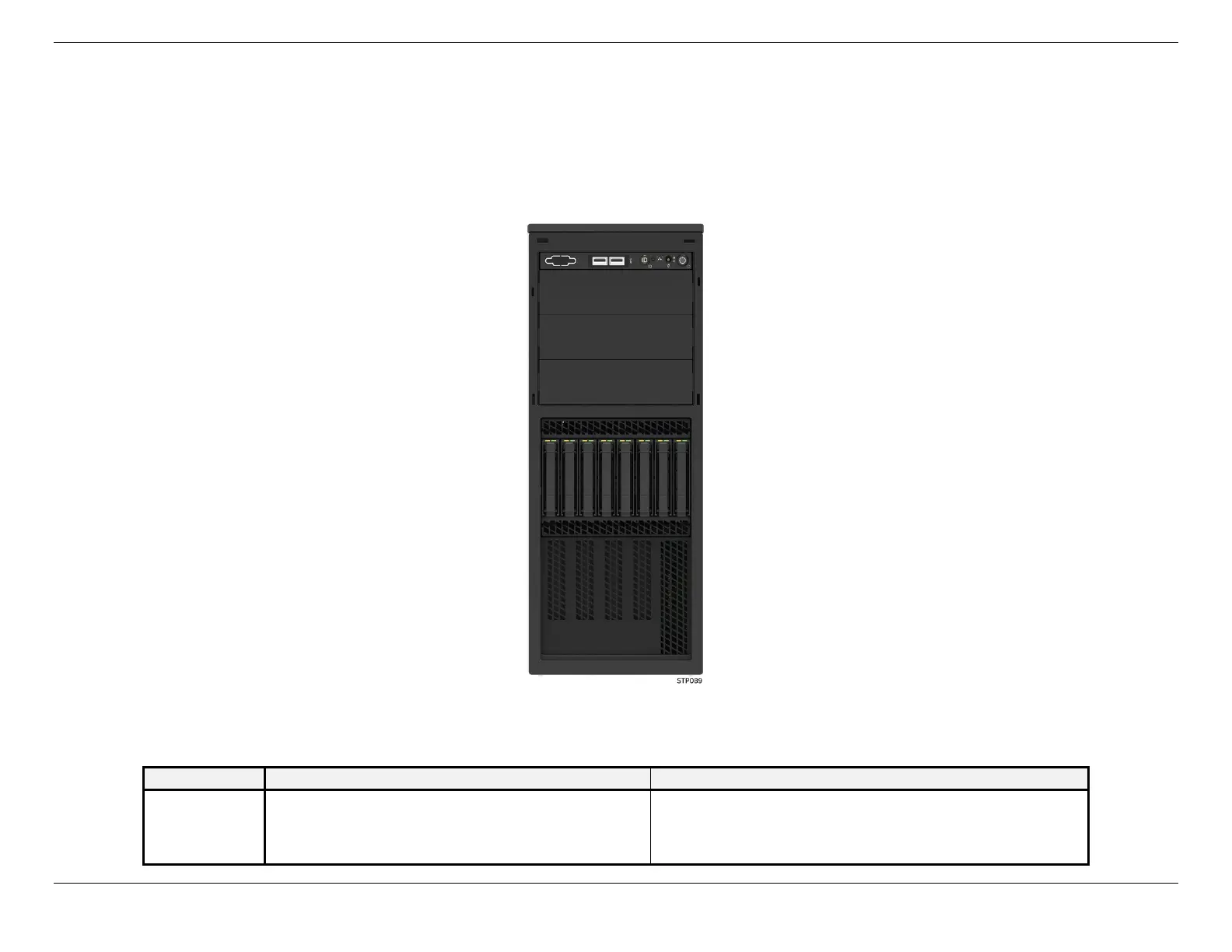

Figure 9. SATA/SAS 0-7
Table 20. 8x2.5” Hot-swap Drive Configuration Cable Guide
Drive Support
Cables for On-Board SATA Controller to Backplane
Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane
Hot-swap 8x2.5”
N/A
SAS Add-in card -> BP
650mm HD --- HD
(2) AXXCBL650HDHD
The kit includes two cables
