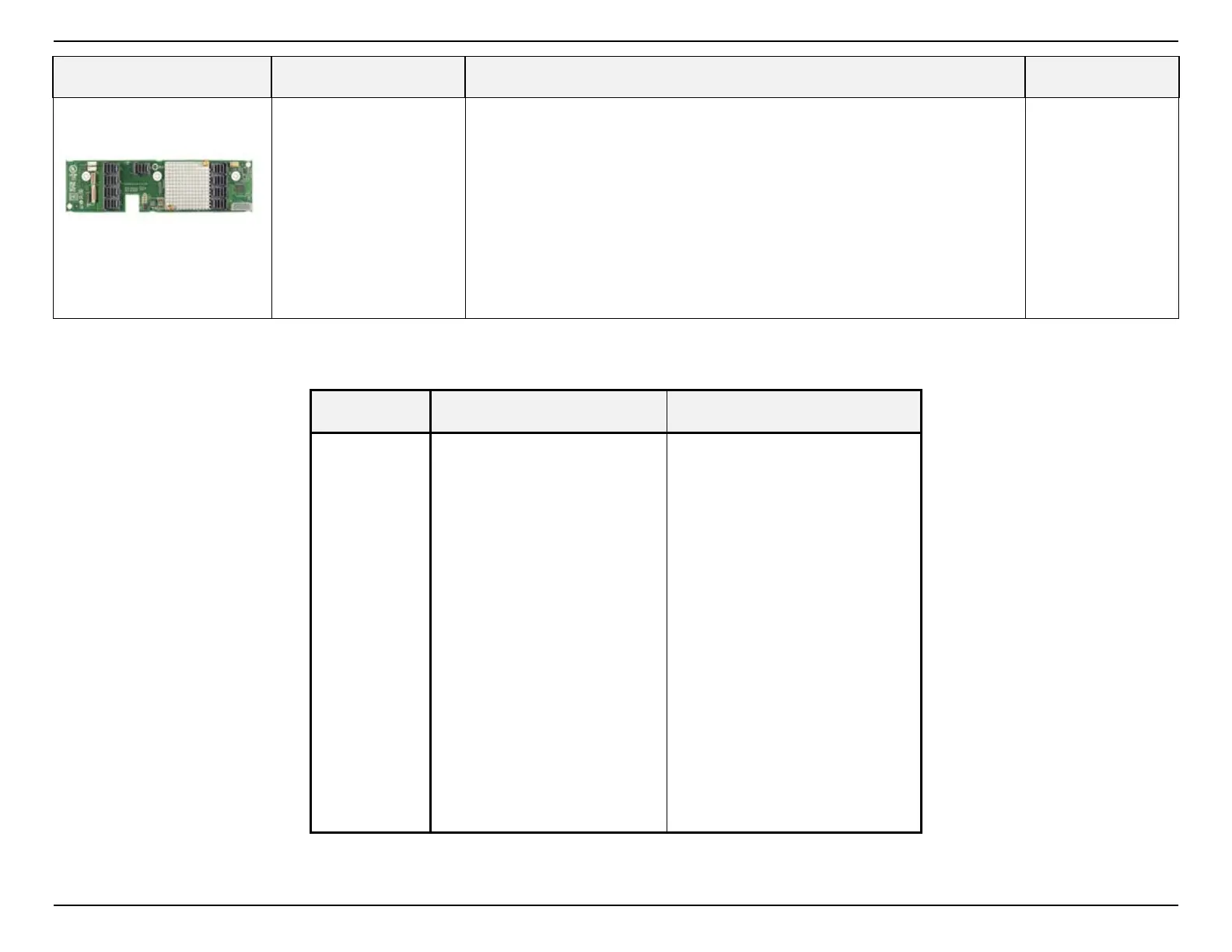

Intel® Server S2600ST Product Family Configuration Guide and Spares/Accessories List
27
Intel Product Code
Order Information
Product Description
Product Type
1.1.2 iPC – RES3TV360
Intel® RAID Expander
RES3TV360
MM# – 932894
UPC –
00735858287364
EAN –
5032037067102
MOQ - 5
SAS 2.0 12 Gb/s expander
• 36-port, 12 Gb/s-capable expander card
Kit includes: (1) 12 Gb/s SAS Expander card, (2) Cables to connect to 24-ports on
nearby drive backplane
Required (sold separately): HD-HD SAS Expander-to-RAID Data Cables for connecting
– See Table 19
•
Accessory Kit
Table 19. Hot-swap Drive Cable Guide (with SAS Expander)
Drive Support
Cables for On-Board SATA
Controller to Backplane
Cables for 12 Gb SAS RAID PCIe*
add-in card to Backplane
Top and Bottom
Hot-swap
8x2.5”
N/A
With RES3FV288 Expander installed
on PCIe slot:
- Use cables in Expander Kit to
attach PCIe SAS card to Expander
Card.
- To connect the expander to
Backplane, use cable
AXXCBL650HDHD, 2 per drive bay.
The kit includes two cables.
With RES3TV360 Expander installed
in the space between the system fans
and backplanes:
- Use cables in Expander Kit to
attach Expander to backplane.
- To connect the PCIe SAS to
Expander use cable
AXXCBL380HDHD.
The kit includes two cables.
