Intel® Server S2600ST Product Family Configuration Guide and Spares/Accessories List
25
3.2.6 16x2.5” Hot-swap SAS/SATA Data Cable Guide
The 16x2.5” hot-swap hard drive configuration is an upgrade option that requires two hot-swap hard drive bay kits that can be chosen from the
following list:
• iPC AUP8X25S3DPDK (SAS/SATA Dual Port backplane kit)
• iPC AUP8X25S3NVDK (SAS/SATA/PCIe NVMe Combo backplane kit)
The Mini-SAS cable kits - iPC AXXCBL380HDHD or AXXCBL650HDHD must be ordered separately.
Note: on the Intel® Server Chassis (P4304XXMFEN2 and iPC - P4304XXMUXX), NVMe Drives are not supported in 16x2.5” configurations.

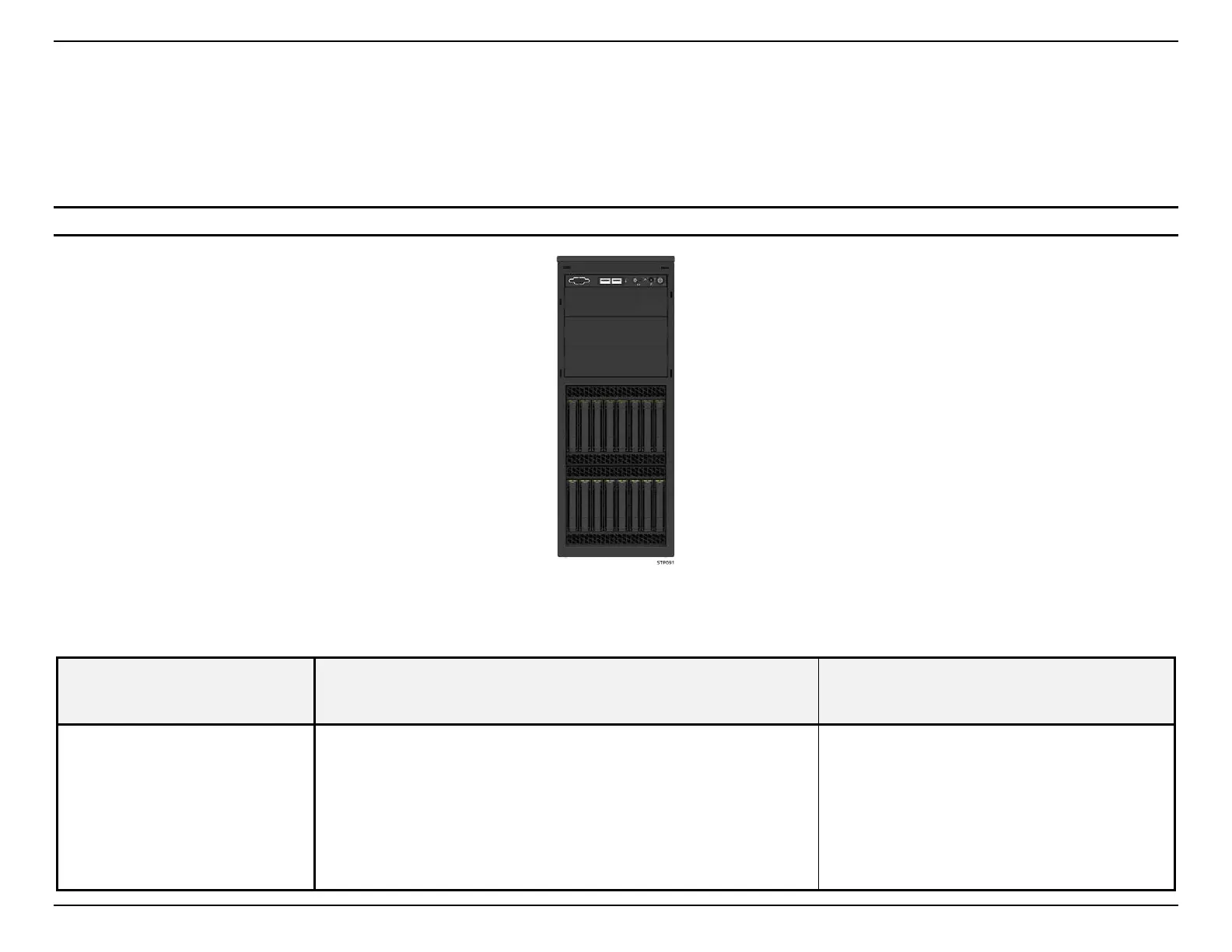

Figure 8. SATA/SAS 0-15
3.2.6.1 16x2.5” Hot-swap SAS/SATA Data Cable Guide (without SAS expander)
Table 17. Combo Backplane Module Placement – 16 x 2.5” front drive configurations
Drive Support
Cables for On-Board SATA Controller + 12 Gb SAS RAID
PCIe* add-in card to Backplane
Cables for 12 Gb SAS RAID PCIe* add-in
card to Backplane
Hot-swap 8x2.5” Combo
SAS / SATA / PCIe* SSD SFF (NVMe)
Cabling options are the same for Top
and Bottom Bay
On-Board SATA -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables.
SAS Add-in card -> BP
650mm HD --- HD
(2) AXXCBL650HDHD
The kit includes two cables.
SAS Add-in card -> BP
650mm HD --- HD
(4) AXXCBL650HDHD
The kit includes two cables.
