3.2.3 8x3.5” Hot-swap SAS/SATA Data Cable Guide
The 8x3.5” hot-swap hard drive configuration is an upgrade option that requires the following accessory kits (ordered separately):
- Hot swap drive bay kit (iPC - AUP4X35S3HSDK)
- Mini-SAS cable kit (iPC - AXXCBL380HDHD or AXXCBL650HDHD)

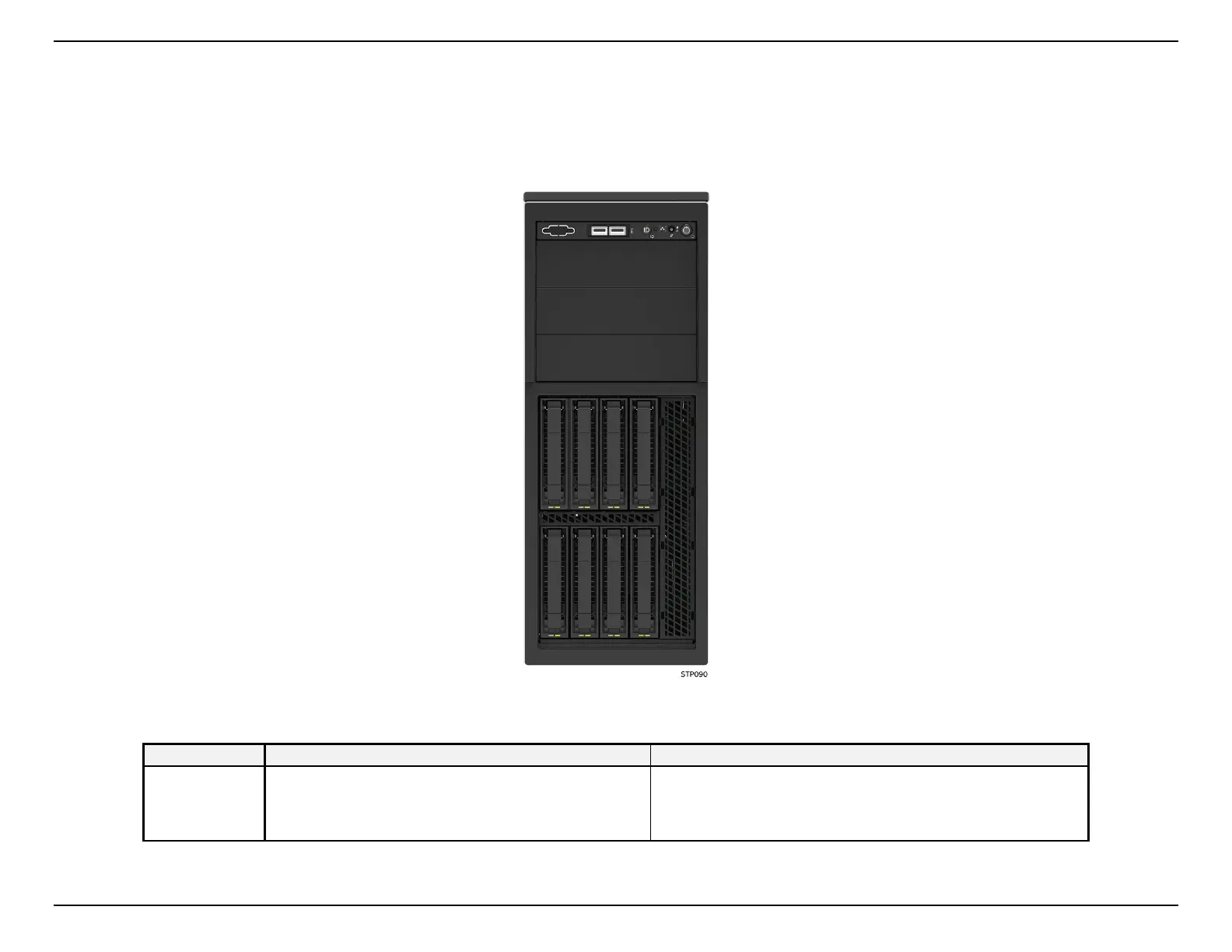

Figure 5. SATA/SAS 0-7
Table 14. 8x3.5” Hot-swap Drive Configuration Cable Guide
Drive Support
Cables for On-Board SATA Controller to Backplane
Cables for 12 Gb SAS RAID PCIe* add-in card to Backplane
Top and Bottom
Hot-swap 4x3.5”
On-board SATA -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables
SAS Add-in card -> BP
650mm HD --- HD
(2) AXXCBL650HDHD
The kit includes two cables
