Server Board S5000PSL 17

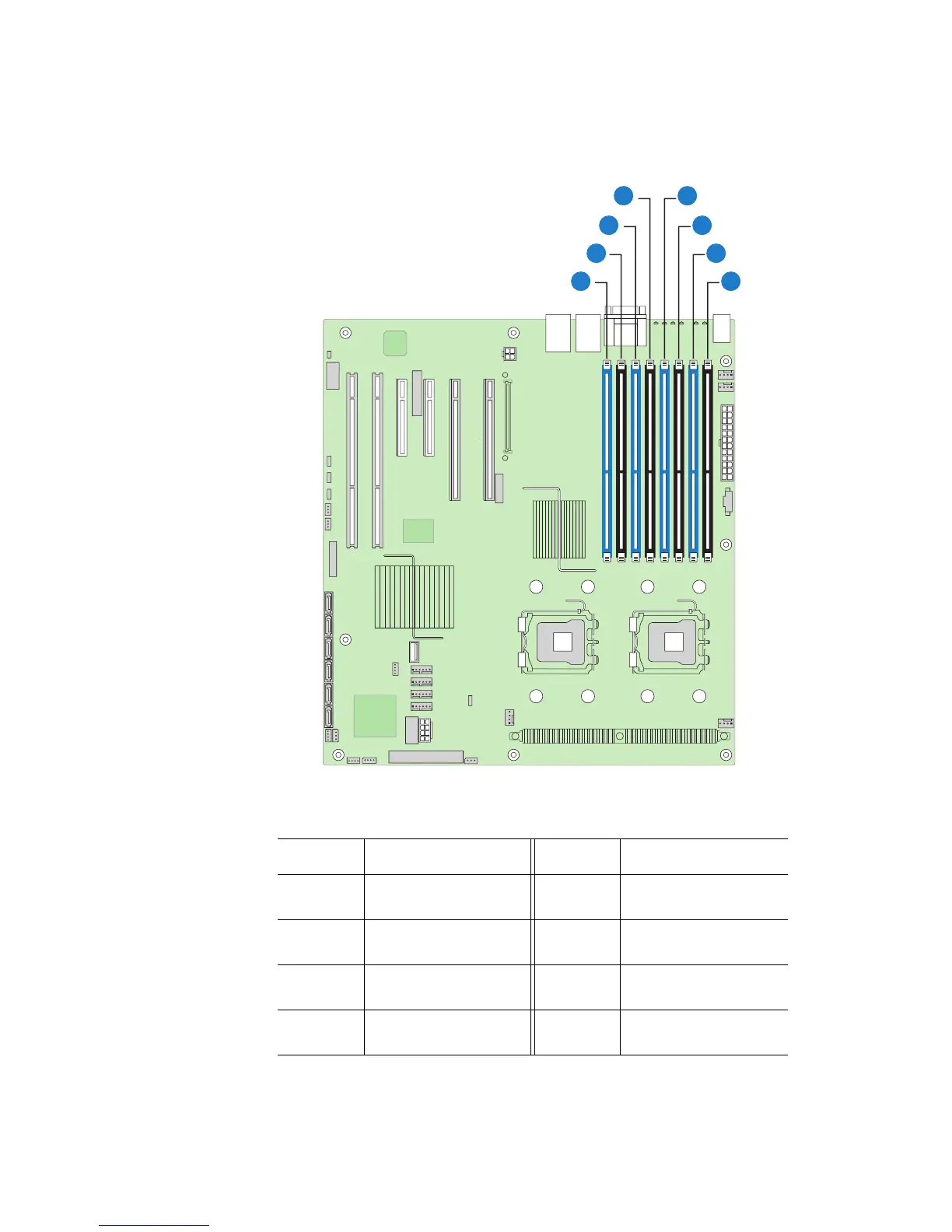

See the following diagram to identify the DIMM sockets.
Figure 5. DIMM Sockets
Callout DIMM Socket Callout DIMM Socket
A. Branch 1, Channel A,
DIMM_A1
E. Branch 2, Channel C,
DIMM_C1
B. Branch 1, Channel A,
DIMM_A2
F. Branch 2, Channel C,
DIMM_C2
C. Branch 1, Channel B,
DIMM_B1
G. Branch 2, Channel D,
DIMM_D1
D. Branch 1, Channel B,
DIMM_B2
H. Branch 2, Channel D,
DIMM_D2
AF000093
A
B
C
D E
F
G
H
