Intel
®
Server Board S5000PSL 35

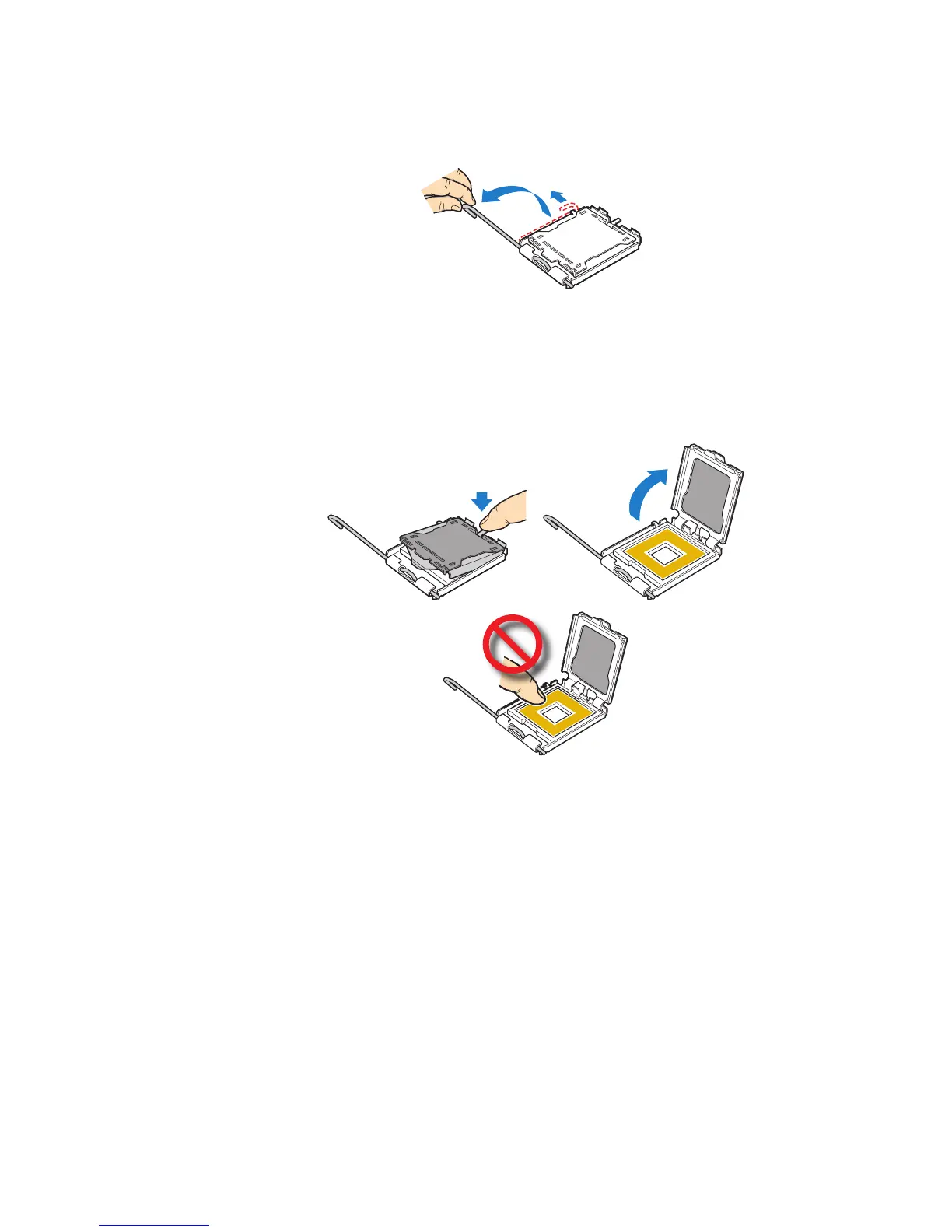

Figure 12. Opening Processor Socket Lever
8. Push down on the rear tab of the load plate to swing the front of the load plate up
slightly. Fully open the load plate. See Figure 13.
Figure 13. Opening Load Plate
AF000095
AF000096
