44 Intel
®
Server Board S5000PSL
1. Observe the safety and ESD precautions in “Safety Information” on page iii.
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the AC power cord from the server.
4. Remove the chassis cover and locate the CMOS battery. See the documentation that
came with your chassis for instructions on removing the cover.
5. Use a finger to pull the lever away from the top of the battery until it clears the
battery. Use caution so you do not bend the lever.
6. Lift the battery from the socket.

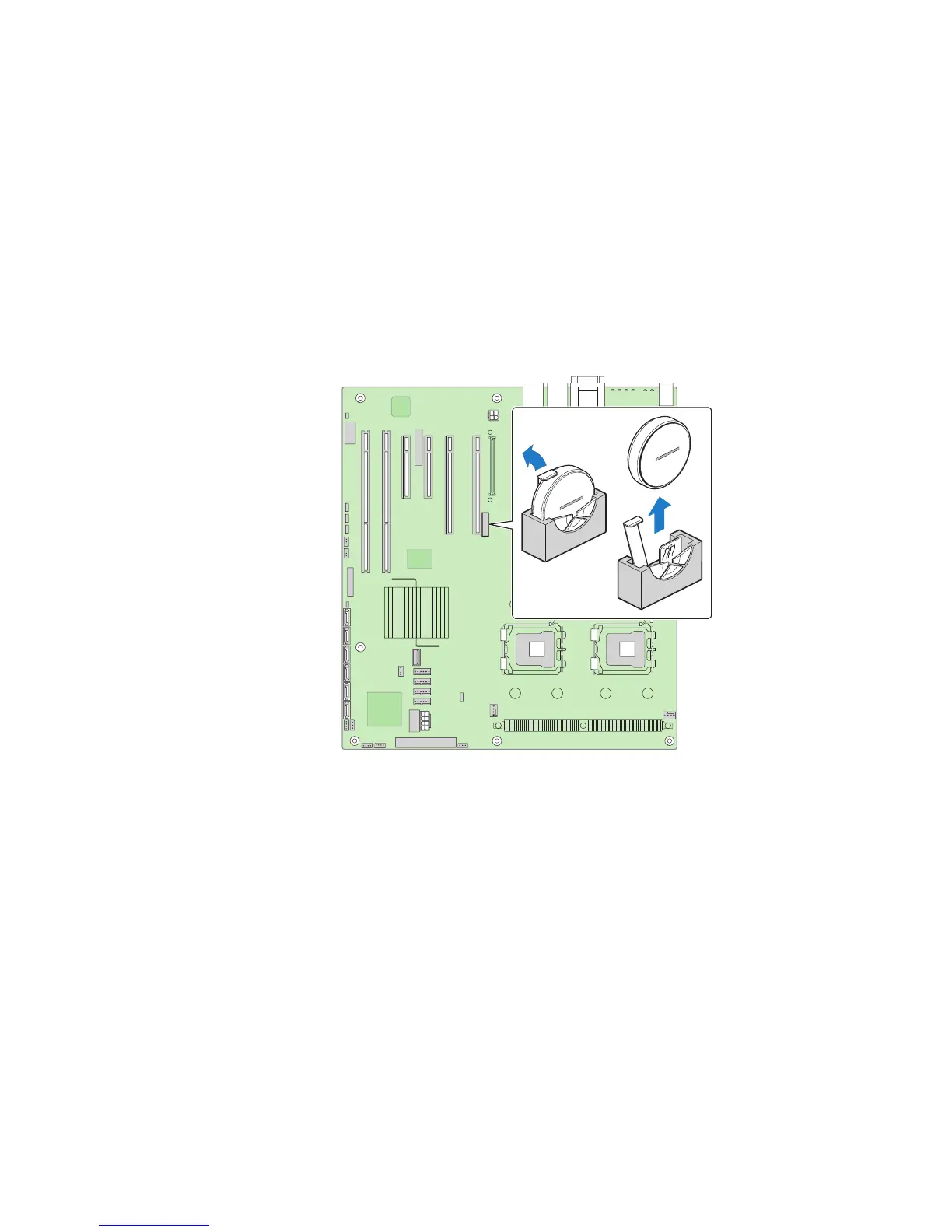

Figure 22. Locating and Removing the CMOS Battery
7. Dispose of the battery according to local ordinance.
8. Remove the new battery from its package.
9. Being careful to observe the correct polarity, insert the battery into the battery
socket. The “+” side of the battery must face the lever side of the socketbattery
socket, toward the add-in card slots.
10. Reinstall and reconnect any parts you removed or disconnected to reach the battery.
See the documentation that came with your chassis for instructions on installing
chassis components.
11. Replace the chassis cover and reconnect the AC power cord. See the documentation
that came with your chassis for instructions on installing the cover.
12. Run the BIOS Setup utility to restore the configuration settings to the real-time
clock.
