Intel S5520HC

VMware vSphere* 4.1 Installation Guide for ESX/ESXi* 4.1
50
17) Select the LUN assigned to a station according to the path ID (the Path ID in the table may have to be
expanded; select the bar between it and the LUN entry) with the appropriate IQN (iqn.2009-
04:dss.station<station #>, for example). Do not assign it to the local disk.

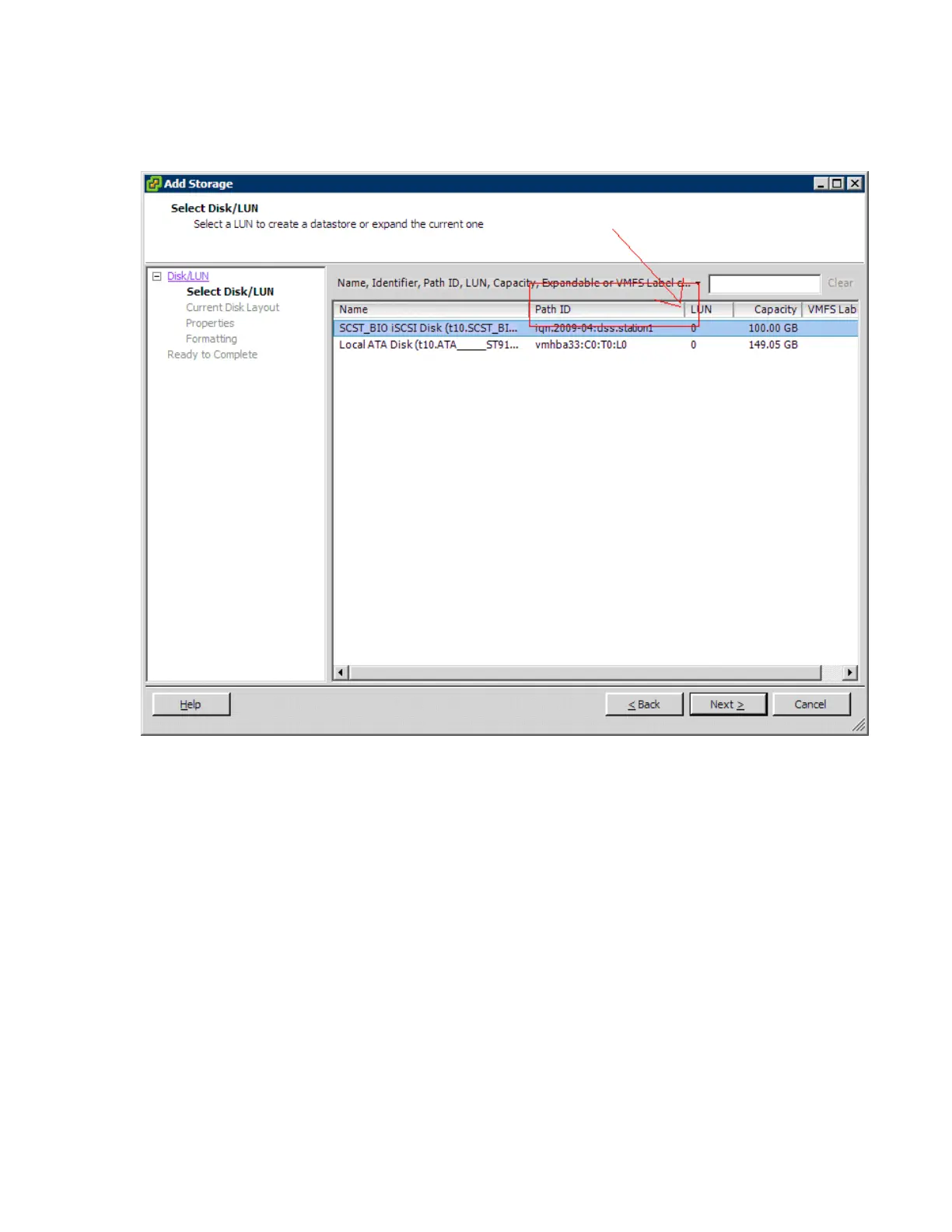

Figure 36 – Select Disk/LUN Window
