Note:
»
Do not install the product on surfaces that favor the propagation of ames, in case of a
short circuit in the wiring or equipment.
»
When possible, this equipment should be xed in a place protected from the sun, rain and
humidity, even with IPX4 protection level.
»
The electrier may cause interference to electronic equipment when installed nearby.
4.11. AC power connection (mains)
The AC terminal is used to connect the equipment to the 115 – 230 Vac mains. Next to the terminal is
located the protection fuse of the control unit. If you need to replace it, use a fuse of the same value (1
A) with a delay.

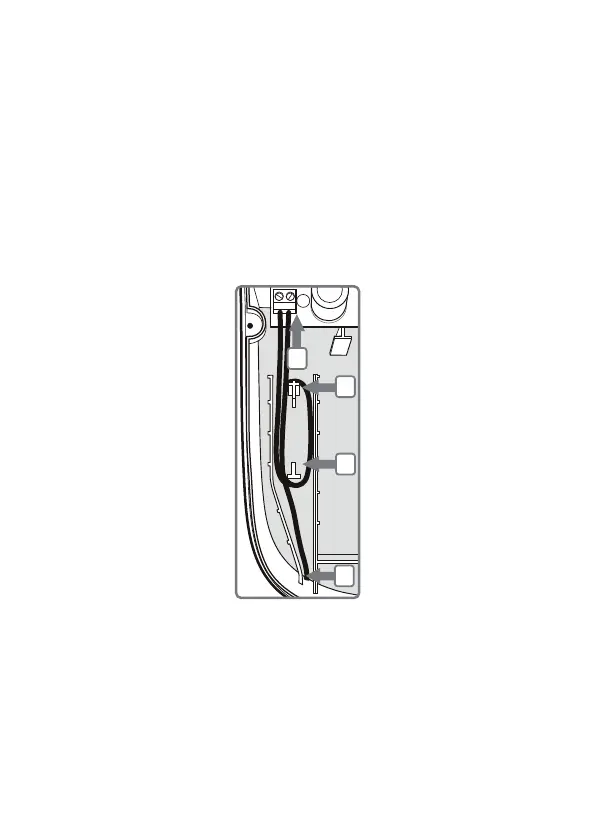

To guarantee the user greater safety in case of bumps in the power supply cable, it must be installed, as
shown in the following gure:
1. Leave approximately 27 cm of the power cable inside the cabinet, through point D;
2. Fold the cable between points B and C as shown in the gure above;
3. Push the cable to the surface of the base;
4. Connect the cable to the AC terminal on the board;
5. Check mains voltage.
Mains power wiring must have a safety switch or similar device, such as a circuit breaker. Such a device
must allow the disconnection of the electrical network, without the need to open the equipment cabinet,
in addition to protecting the installation against any shorts in the power input.
