4.13. Connection of high voltage cables and grounding

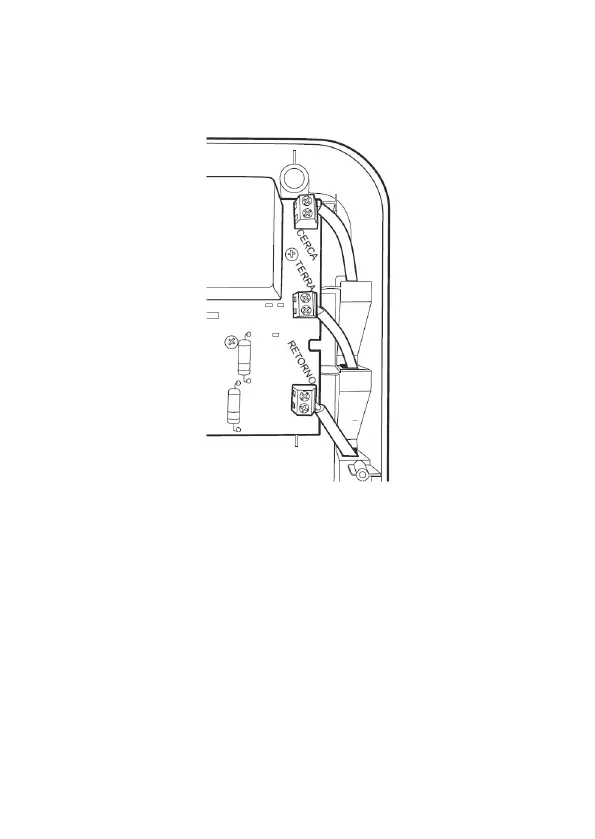

The high voltage input and ground cables must be installed through the holes on the right side of the
cabinet. After passing the cables, it is necessary to make the connection at their respective terminals,
as shown in the gure below, it is necessary to have a high voltage cable with a dielectric strength of
at least 15 kV.
A
B
C
A. High voltage output cable.
B. Ground cable.
C. High voltage return cable.
Note: a minimum distance of 0.5 m from the high voltage cables is recommended for any other
electronic device.
