t100W/t100Q – Marine Satellite Television System
116

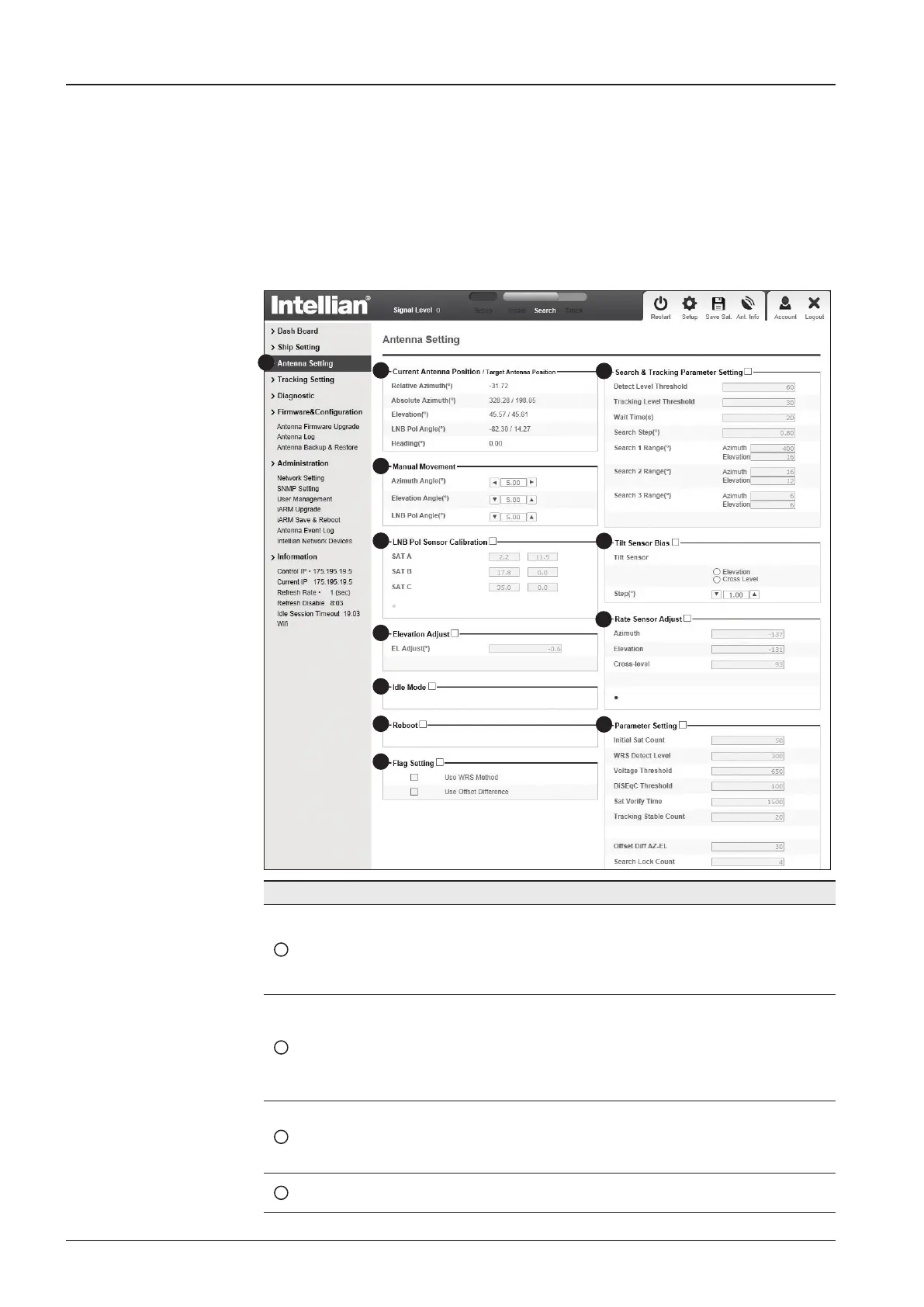

Antenna Position & Parameters
No. Item Description
1
Antenna Setting
Set current antenna position and Search and Track-
ing parameters. These parameters should only be
changed by an authorized service technician. Im-
proper setting of these parameters will render your
system inoperable.
2
Current Antenna Position/
Target Antenna Position
Display current antenna position.
-
Relative Azimuth: display antenna relative AZ angle.
-
Absolute Azimuth: display antenna absolute AZ angle.
- Elevation: display antenna elevation angle.
- LNB Pol Angle: display LNB pol angle.
- Heading: display ship’s heading information.
3
Manual Movement
Move antenna azimuth and elevation angles and
LNB pol angle to nd the desired satellite manually.
LNB Pol Angel can be adjusted at any time either in
SETUP Mode or Tracking Mode.
4
LNB Pol Sensor Calibration
Calibrate the LNB pol angle when the control board,
potentiometer or LNB Assembly is replaced.
1
3
4
5
6
7
8
9
10
11
12
2
To Next Page
