Interlogix Simon XT Installation Manual

Simon XT Installation Manual 21

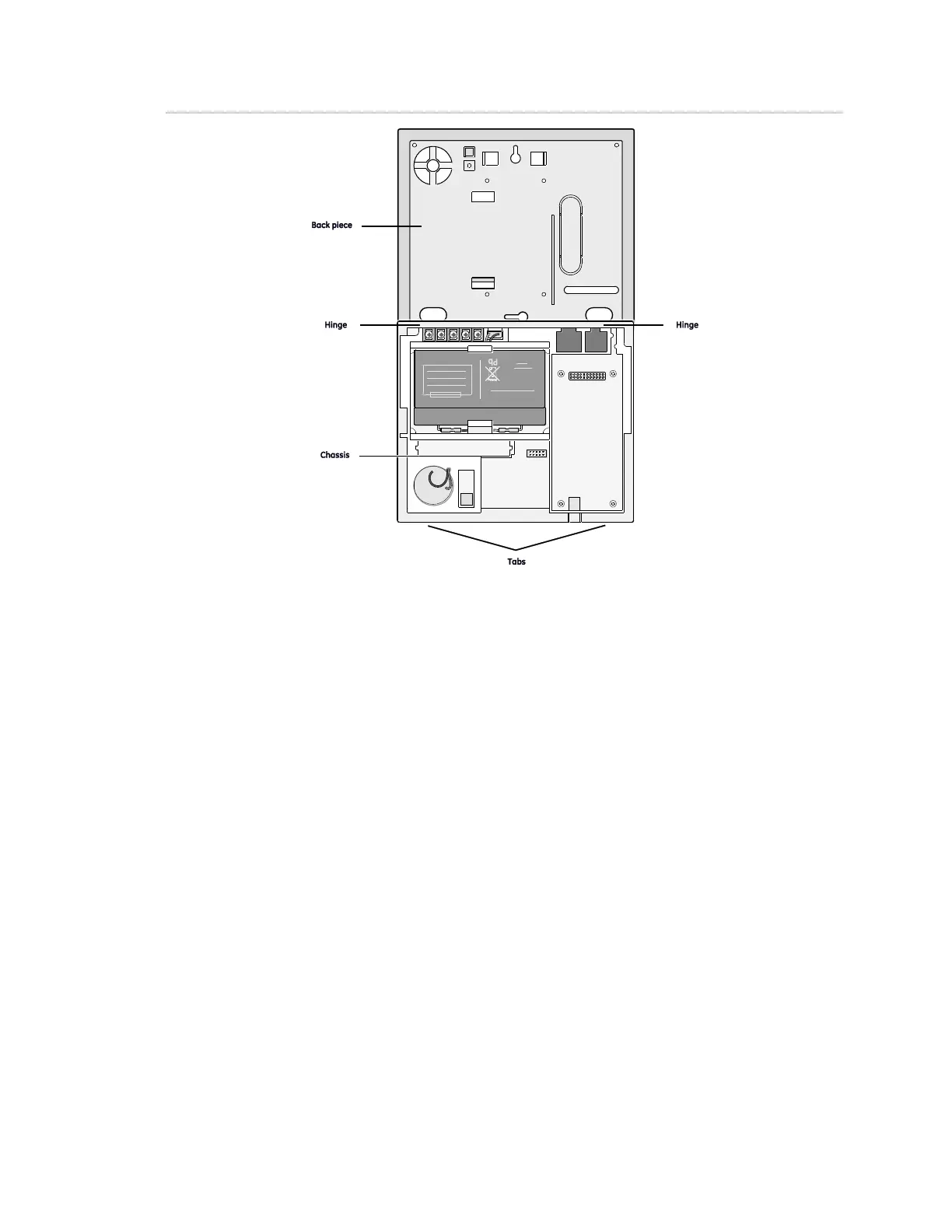

Figure 3: Opening the panel cover and chassis
Mounting the panel
To mount the panel on a wall, do the following:
1. Choose a panel location.
2. Run all necessary power, phone, siren, and hardwired contact wires to the
desired panel location.
Note: When choosing the AC outlet location for the AC power transformer,
make sure the outlet is not controlled by a switch or that it is not part of a
ground fault circuit interrupt (GFCI).
3. Hold the panel against the wall and mark the mounting hole locations with a
pencil.
4. Mount the back piece to the wall through the two horizontally centered
mounting holes near the top and bottom using the supplied mounting
hardware. Use wall anchors if no studs are present (Figure 4 on page 22).

Interlogix Simon XT Specifications

Power

power requirements	6V nominal
standby current	30mA (10mA in PowerSave Mode)
peak current	1.7 A

Operating Environment

operating temperature	32 to 120°F (0 to 49°C)
storage temperature	-30 to 140°F (-34 to 60°C)
max. relative humidity	90% non-condensing

Dimensions

height	4 1/16 in.
width	1 7/8 in.
