Installation Guide 39

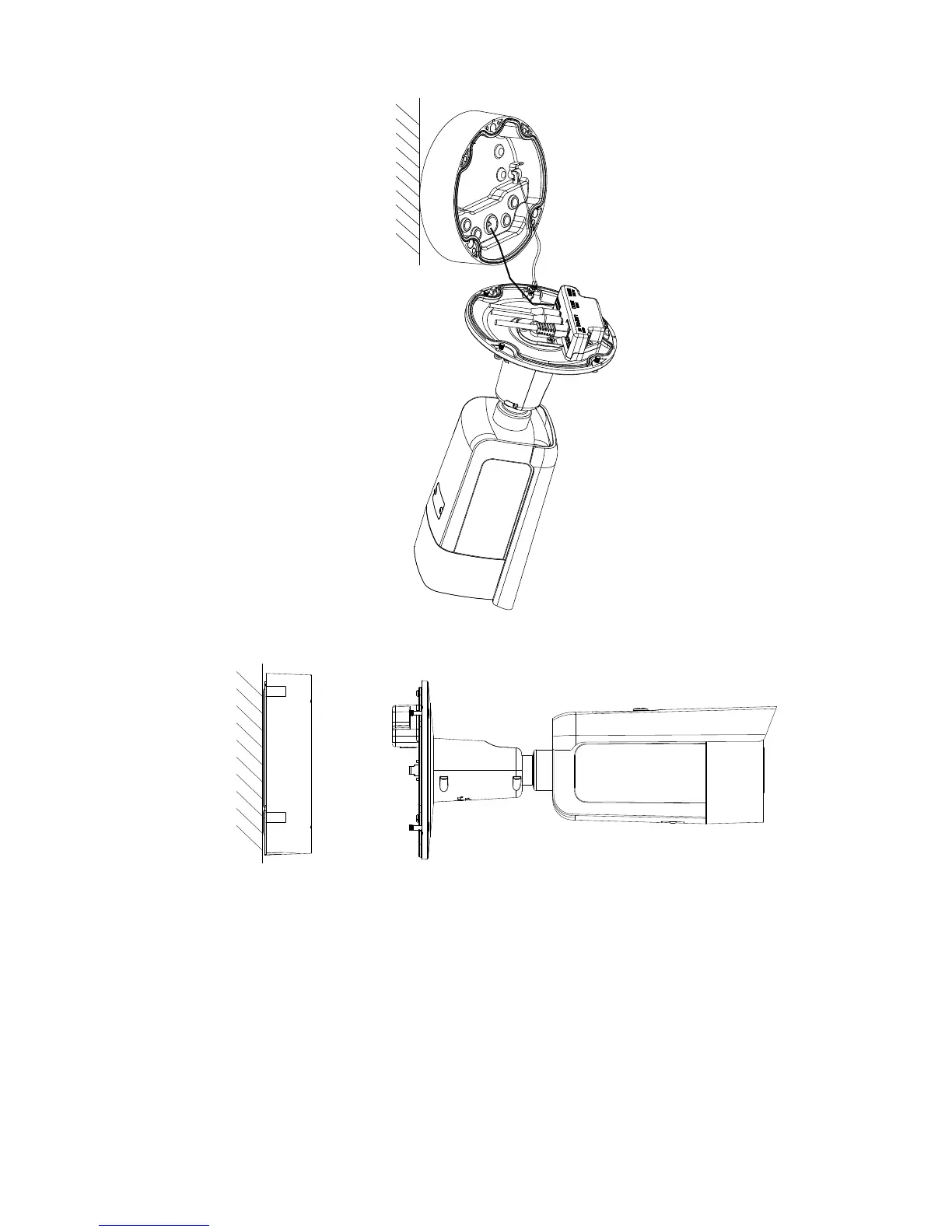

5. Secure the camera to the back box with the screws.
6. Adjust the viewing angle.
3-axis adjusting (pan/tilt/rotation) allows you to adjust for
optimum camera rotation and placement. Follow the
steps below to adjust the viewing angle.
a) Loosen the lock screw using the supplied wrench.
