Installation Guide 25
Camera description

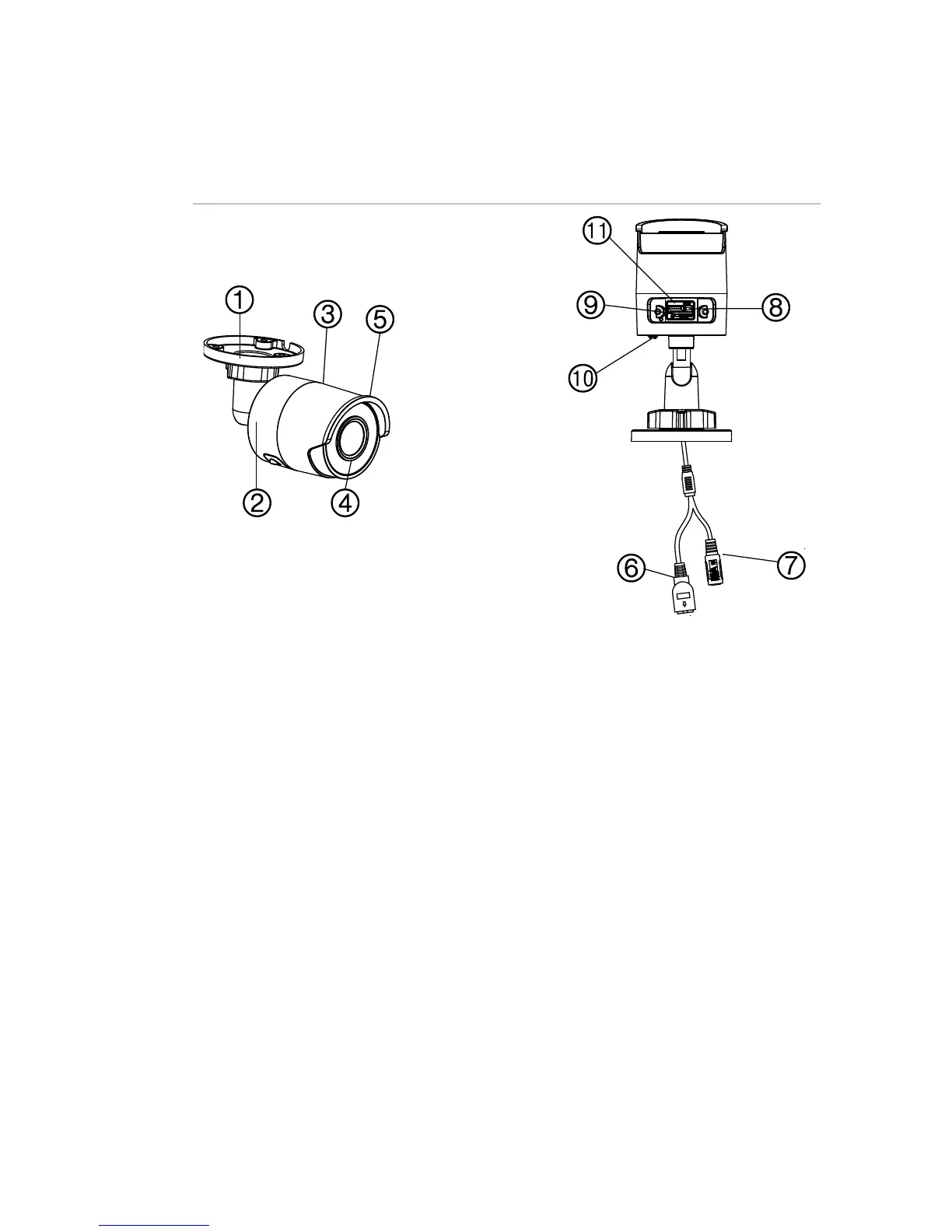

Figure 1: IP fixed lens bullet camera
1. Adjustable bracket
2. Back housing
3. Front housing
4. Lens
5. Sunshield
6. Ethernet RJ45 PoE
port
7. 12 VDC power
8. Reset button
9. Micro SD card slot
10. Grounding screw
11. Serial port (factory use)
Note: To reset the camera to default settings, press and hold
the RESET button and power on the camera. After the camera
has started up, hold the RESET button for an additional 20
seconds.
