26 Installation Guide

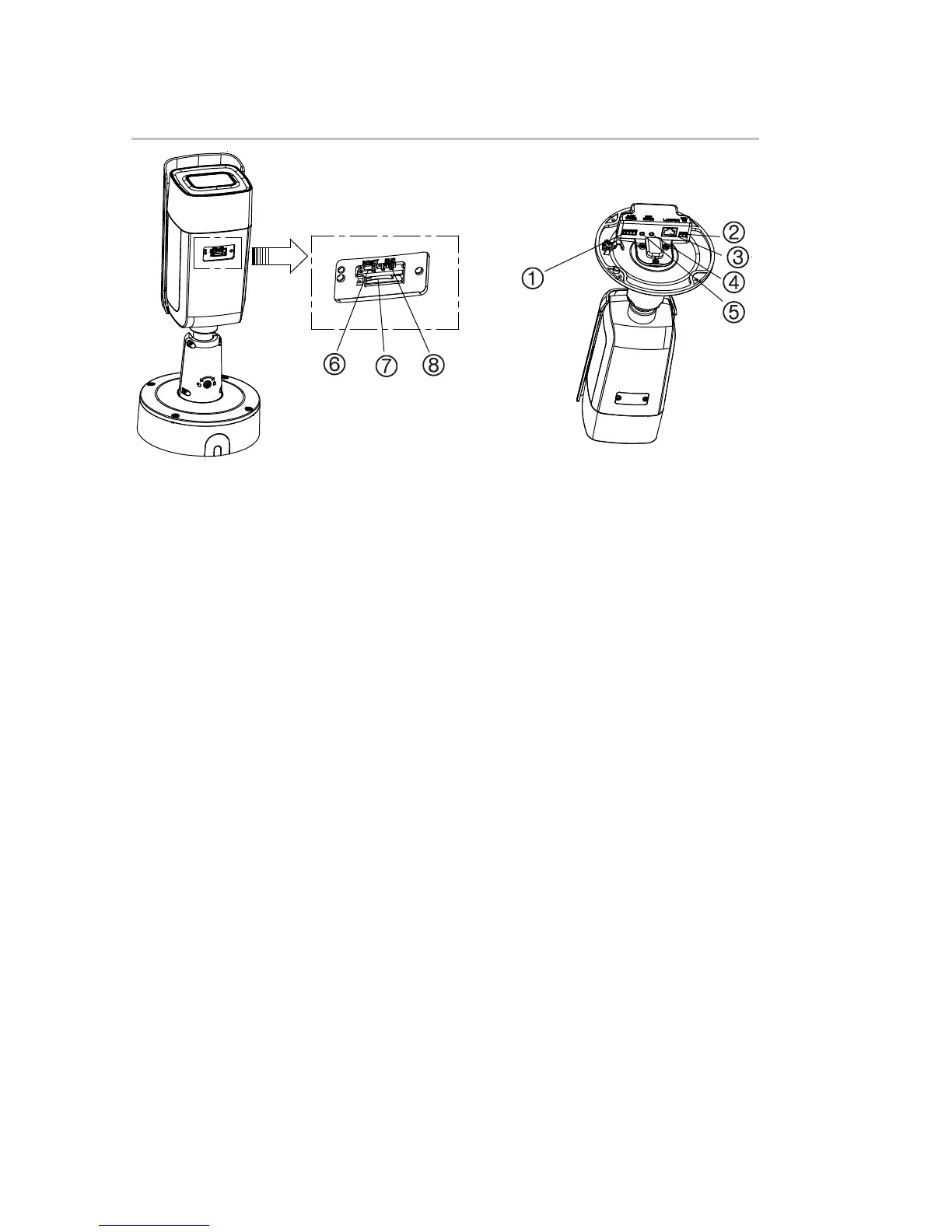

Figure 2: IP motorized lens bullet camera
1. Alarm 1 input /1 output
(up to 12 VDC, 30 mA)
2. 12 VDC power
3. Ethernet RJ45 PoE
port
4. Audio 1 input (line
in/mic in)
5. Audio 1 output (line
out)
6. Reset button
7. Micro SD card slot
8. 960H analog output
Note: To reset the camera to default settings, press and hold
the RESET button and power on the camera. After the camera
has started up, hold the RESET button for an additional 20
seconds.
