Interlogix TruVision 6 Series User Manual

42 Installation Guide
b) Rotate the lens assembly to adjust the pan angle.
Rotate the lens assembly to adjust the tilt angle.

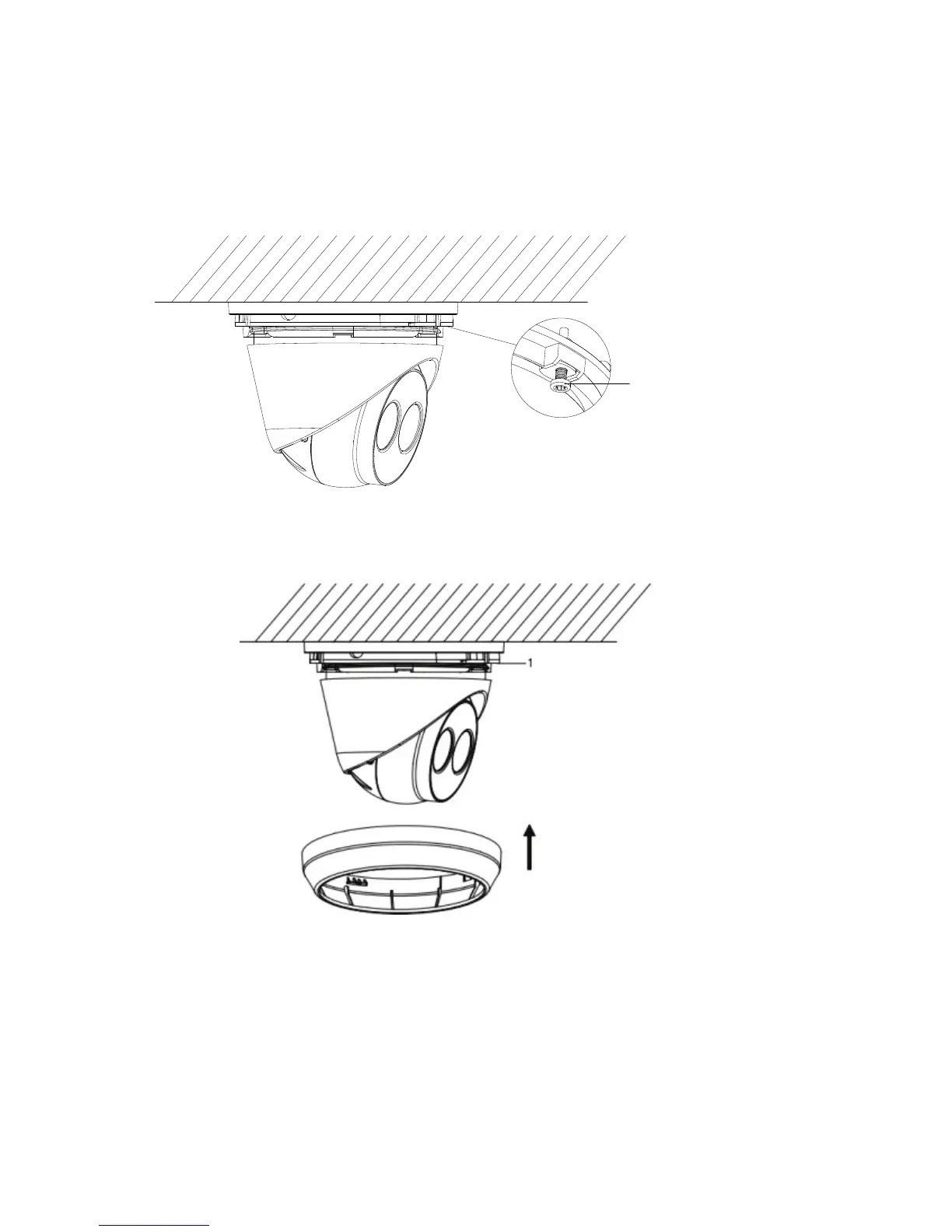

c) Tighten the Torx screw to secure the lens at the
desired surveillance angle.
Torx screw
7. Attach the trim ring to the camera and rotate it clockwise
to secure it.
