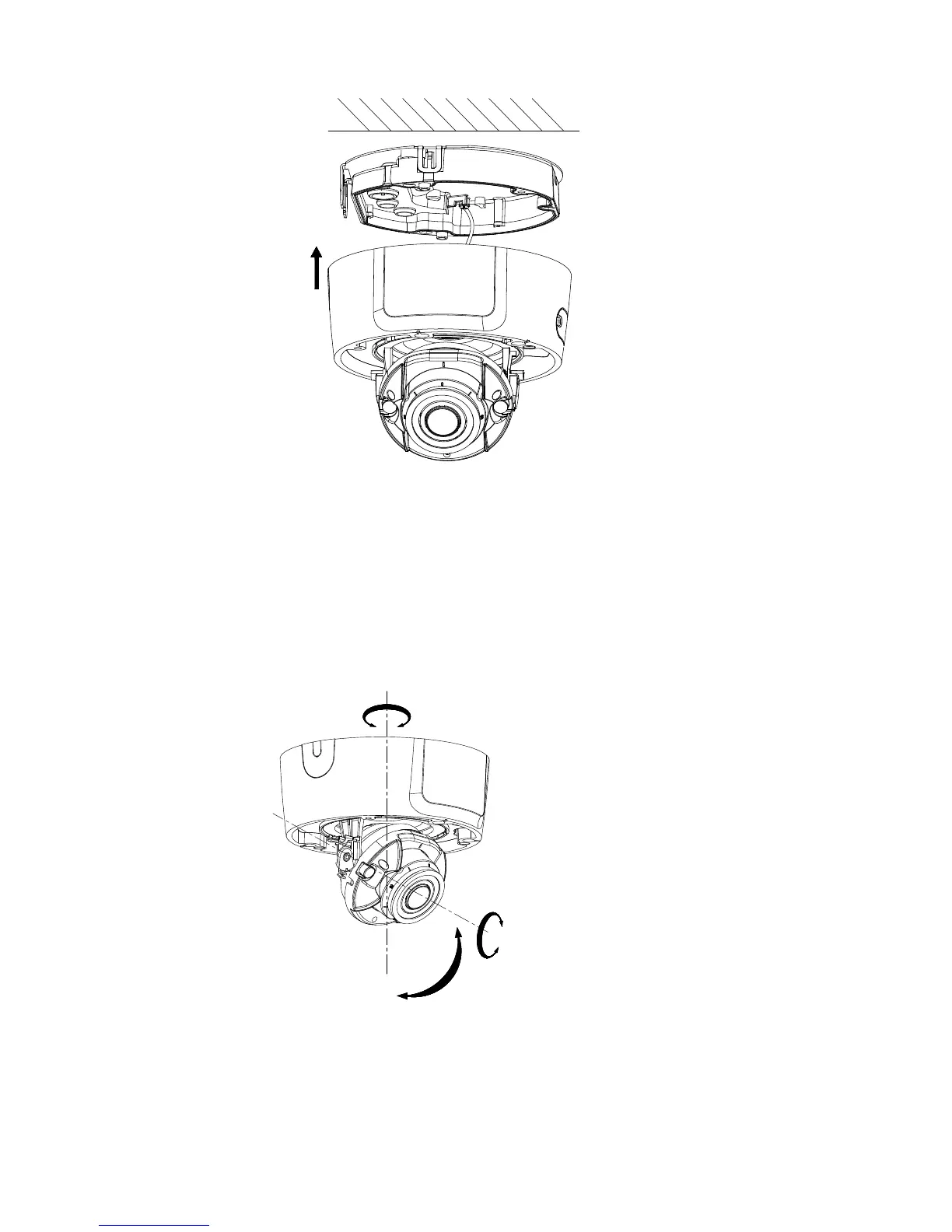

11. Loosen the tilt adjust screws and adjust the tilt position of
the lens assembly within a range of 75 degrees.
Retighten the tilt adjust screws. Rotate the dome liner to
adjust the pan position within a range of 355 degrees.
Rotate the lens assembly (0 to 355°) to obtain the desired
surveillance angle.
0°~355°
0°~355°
0°~75°
