Chapter 10: Camera setup
72 TruVision DVR 15HD User Manual
Motion detection
The motion detection menu allows you to enable or disable motion detection for each
camera, as well as create motion grids, set the sensitivity of the motion detection and
link motion detection to a specific action.
To set up motion detection:

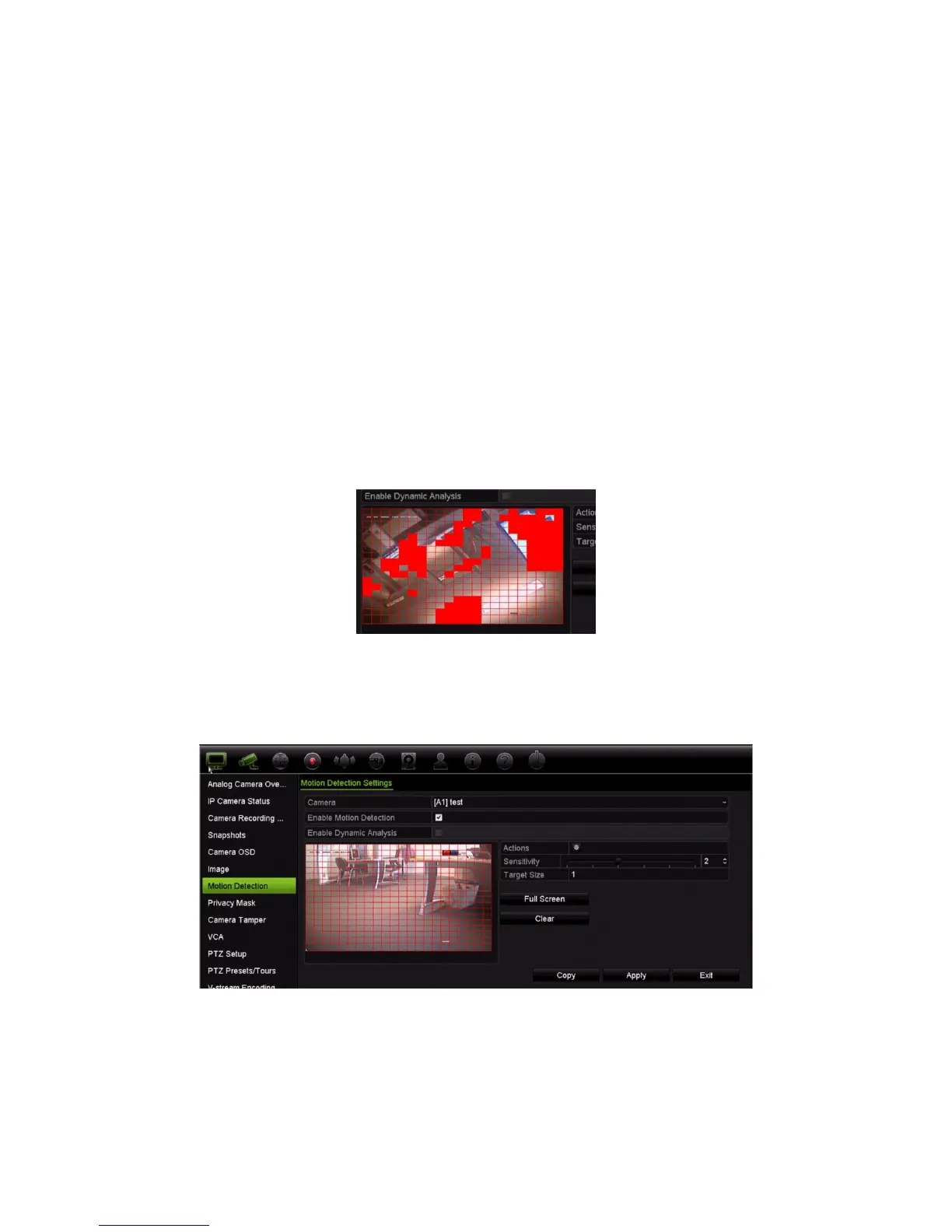

1. From the menu toolbar, click Camera Setup > Motion Detection.
Areas covered by the red grid are sensitive to motion detection.
2. Select the camera to detect motion. Each camera must be set up individually.
3. Check Enable Motion Detection. If this is not enabled, motion will not be recorded.
4. For IP cameras only: Check Enable Dynamic Analysis. This allows you to see on-
screen motion being detected while setting up the feature. Areas where motion is
detected are shown as solid red squares in the motion grid.
Note: Dynamic analysis is always enabled for analog/HD-TVI cameras.
5. Create the areas on-screen to be sensitive to motion.
Click and drag the mouse cursor across the window to select areas sensitive to
motion detection, which are shown as a red motion grid.
Click Full Screen to activate the whole screen or Clear to clear the screen.
6. Set the sensitivity level.
Drag the Sensitivity scroll bar to the desired sensitivity level. Default is 3. Maximum
sensitivity is 5.
