Chapter 10: Camera setup
78 TruVision DVR 15HD User Manual

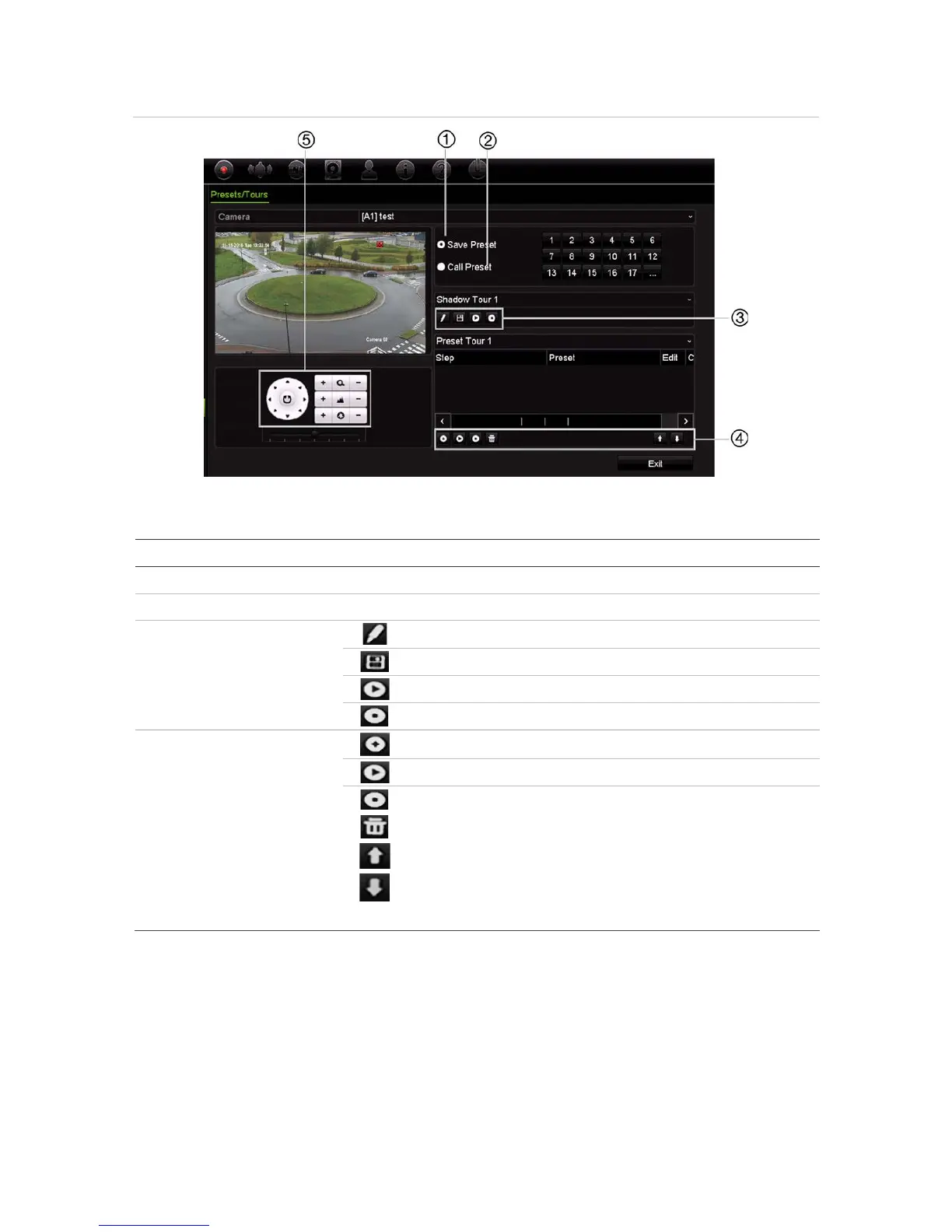

Figure 22: PTZ configuration window
Table 13: Description of the PTZ Presets/Tours configuration window
Name Description
1
. Save Preset Saves preset.
2
. Call Preset Calls up pre-existing preset.
3
. Shadow Tour toolbar
Starts recording the shadow tour.
Saves the shadow tour.
Starts the selected shadow tour.
Deletes the selected shadow tour.
4
. Preset Tour toolbar
Adds a step to a selected preset tour.
Starts the selected preset tour.
Stops the selected preset tour.
Deletes all the preset tour steps.
Scroll up the list.
Scroll down the list.
5
. Preset control panel
To set up a preset:
1. From the menu toolbar, click Camera Setup > PTZ Presets/Tours.
2. Use the directional, zoom, focus and iris buttons to position the analog camera in
the desired preset location.
3. Check Save Preset and enter a preset number (1 to 255). The preset is enabled
and stored in the camera.
