Intermatic MultiWave

33Filter Pump Installations
4 3 2 1
5 4 3
2 1
RS485
GREEN
YELLOW
BLACK
RED
COMMON INPUT 4 INPUT 3 INPUT 2 INPUT 1
Remote
Control
CAT5-568B Cable
Motor
Control
Input
White/Green, White/Orange, White/Blue, White/Brown
Brown
Blue
Green
Orange
Back of Pump
Controller

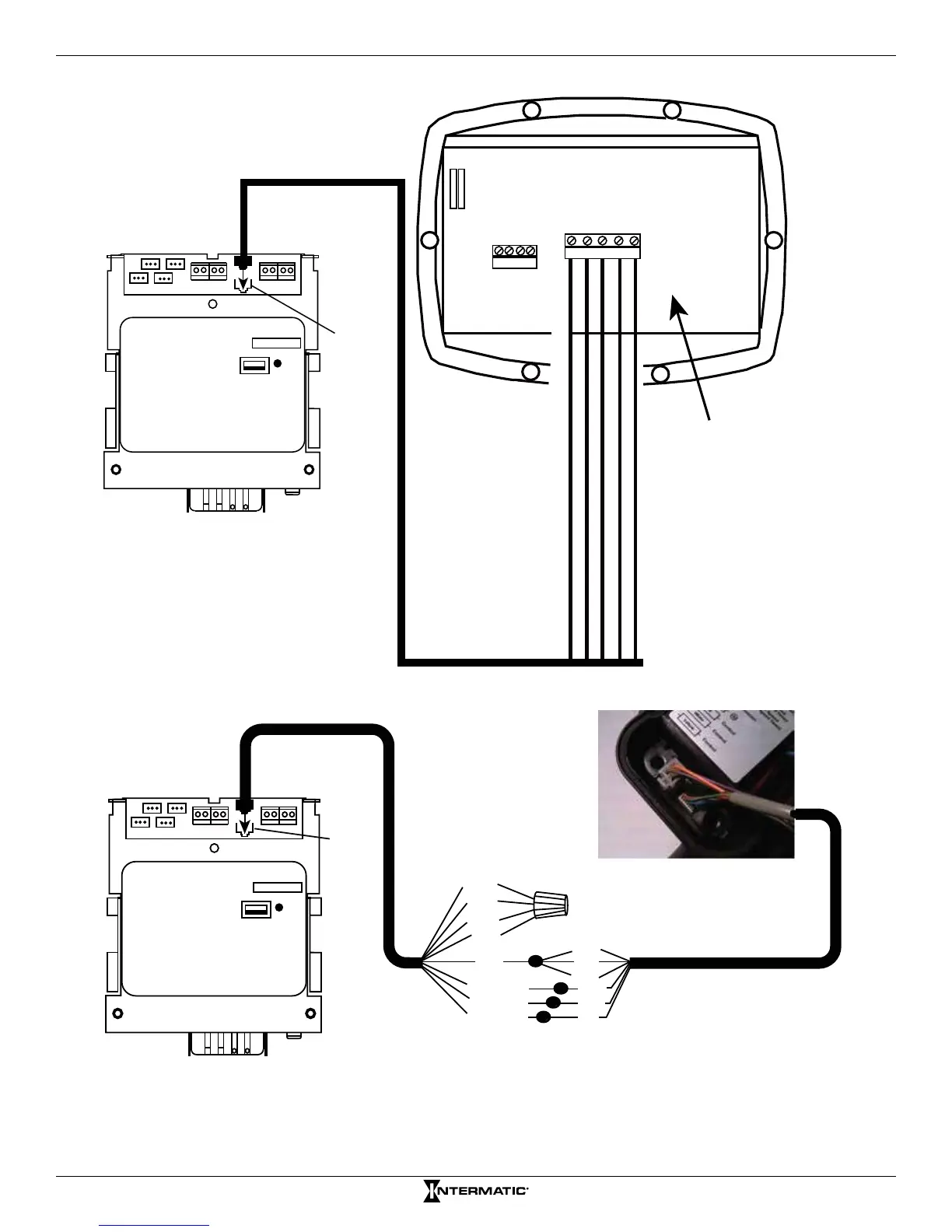

Figure 4-14. Connecting the Jandy
®
Variable Speed Pump to the P5043ME.
Marathon/Speck
6-Conductor Cable
CAT5-568B Cable
Motor
Control
Input
Orange
Green
Blue
Brown
Low Voltage Remote Cable
White/
Brown
White/Green
White/Blue
White/Orange
Green
Blue
White
Brown
Red
Black
Figure 4-15. Connecting the Marathon
®
or Speck
®
Variable Speed Pump to the P5043ME.
