Getting Started
1-5
1
Preparing the Printer for Installation
Before connecting your printer to your data collection system, you need to
•
plug in the printer.
•
open the printer and load media.
•
print a configuration test label.
Plugging In the Printer
The back of your printer contains the AC power receptacle, the serial
communications port, the On/Off switch, and two banks of DIP switches.

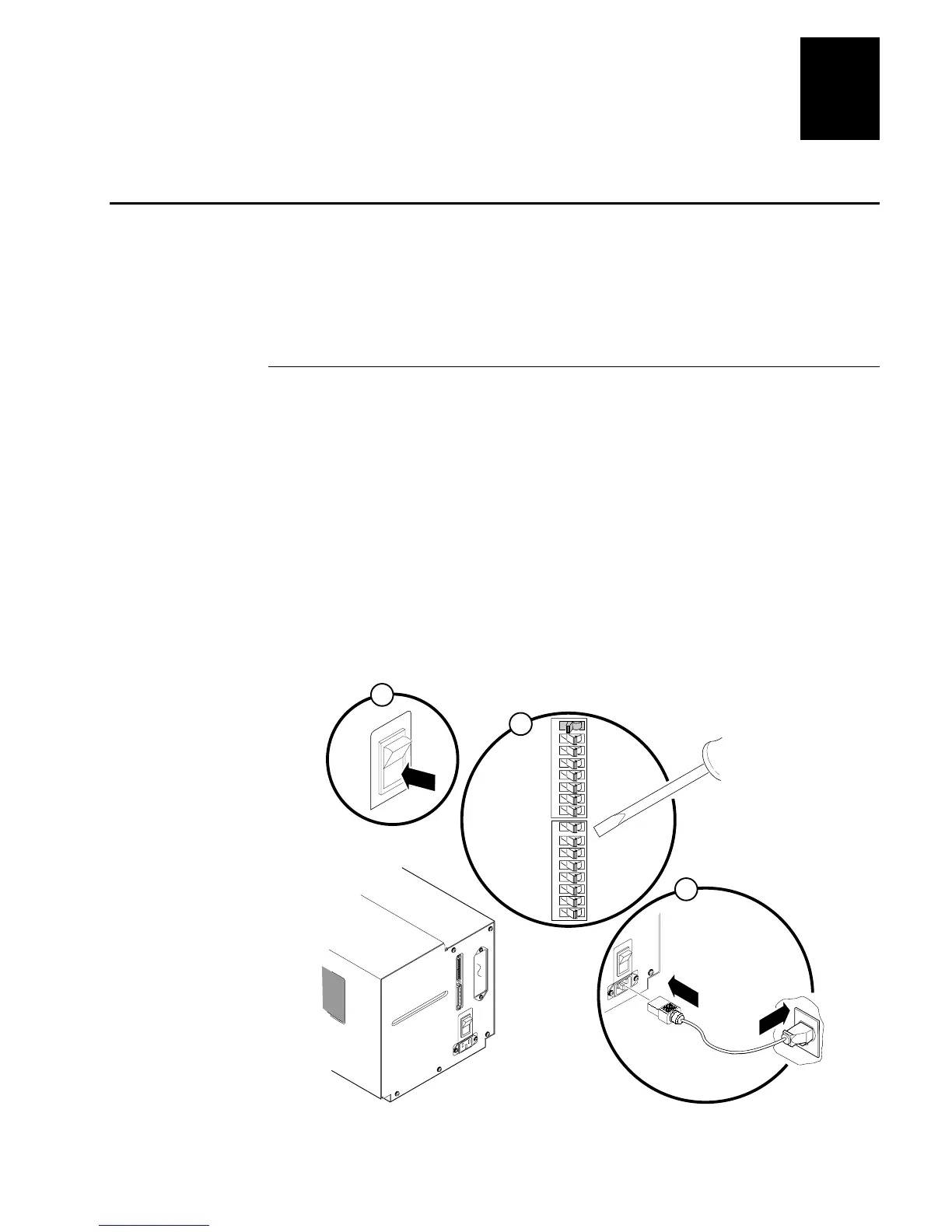

To plug in the printer
1. Turn the On/Off switch to the off position.
2. Make sure you set the DIP switches to their factory default settings.
Top Bank
Set switch 1 on (
I
). Set switches 2 through 8 off (O).
Bottom Bank
Set switches 1 through 8 off (O).
For a description of the DIP switch settings, see “Configuring the Serial Port
for Communications” later in this chapter.
O
I
O
I
1 2 3 4 5 6 7 8
O
1 2 3 4 5 6 7 8
I
O
I
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
O
I
3XXXU.004
