Loading Media for Self-Strip Printing
5. Unscrew the edge guide and slide it to the outer edge of the lower media
guide. Screw it in place.
Note: If you are replacing the empty media roll with a new roll of the same width,
you do not need to adjust the edge guide.
6. Pull down on the lower media guide to allow easy access to the media path.
7. Unroll several inches of media, insert it between the upper media guide and
the lower media guide, and out the front of the printer.
8. Release the lower media guide and adjust the edge guide to position the
media firmly against the inside wall of the printer.
9. Pull out 10 to 12 inches of media and remove the exposed labels from the
media liner.
10. Open the media access door and thread the media liner under the self-strip
assist roller and over the rewinder hub in a clockwise direction.
11. Remove the clasp from the rewinder hub and wind approximately 2 inches
of media liner clockwise over the rewinder hub.

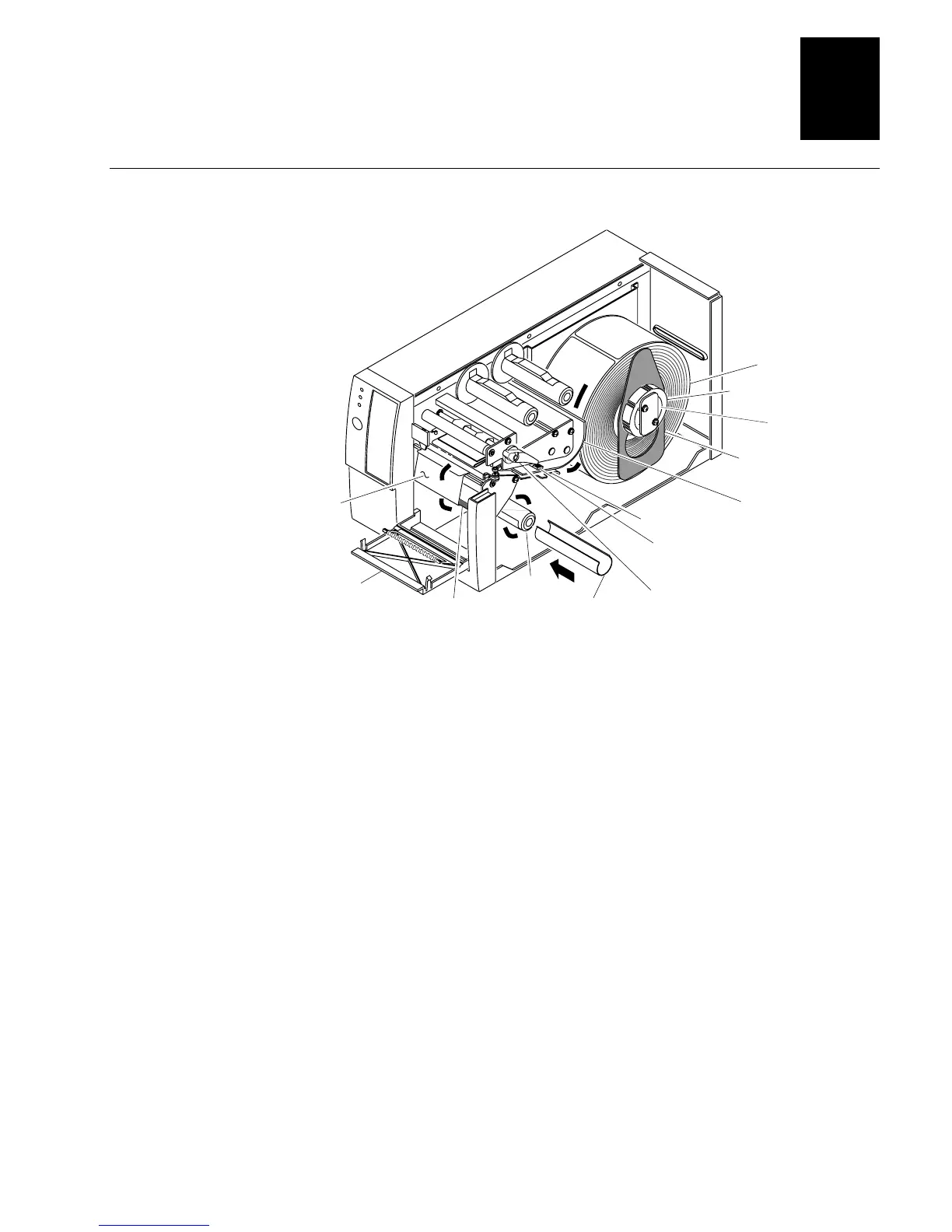

Power/Data
