To adjust the label rest point
1. Turn the On/Off switch to the off position.
2. Press and hold the Feed/Pause button while turning on the printer.
The printer prints the hardware configuration test label and then enters
Data Line Print mode.
3. In the top bank of the Test and Service DIP switches, turn off switch 1 and
turn on switches 2 and 3.
To adjust the label rest point forward (feed more label), turn off DIP
switch 4.
To adjust the label rest point backward (retract label), turn on DIP switch 4.
3XXXU.48
OFF
ON
1 2 3 4
Top Bank

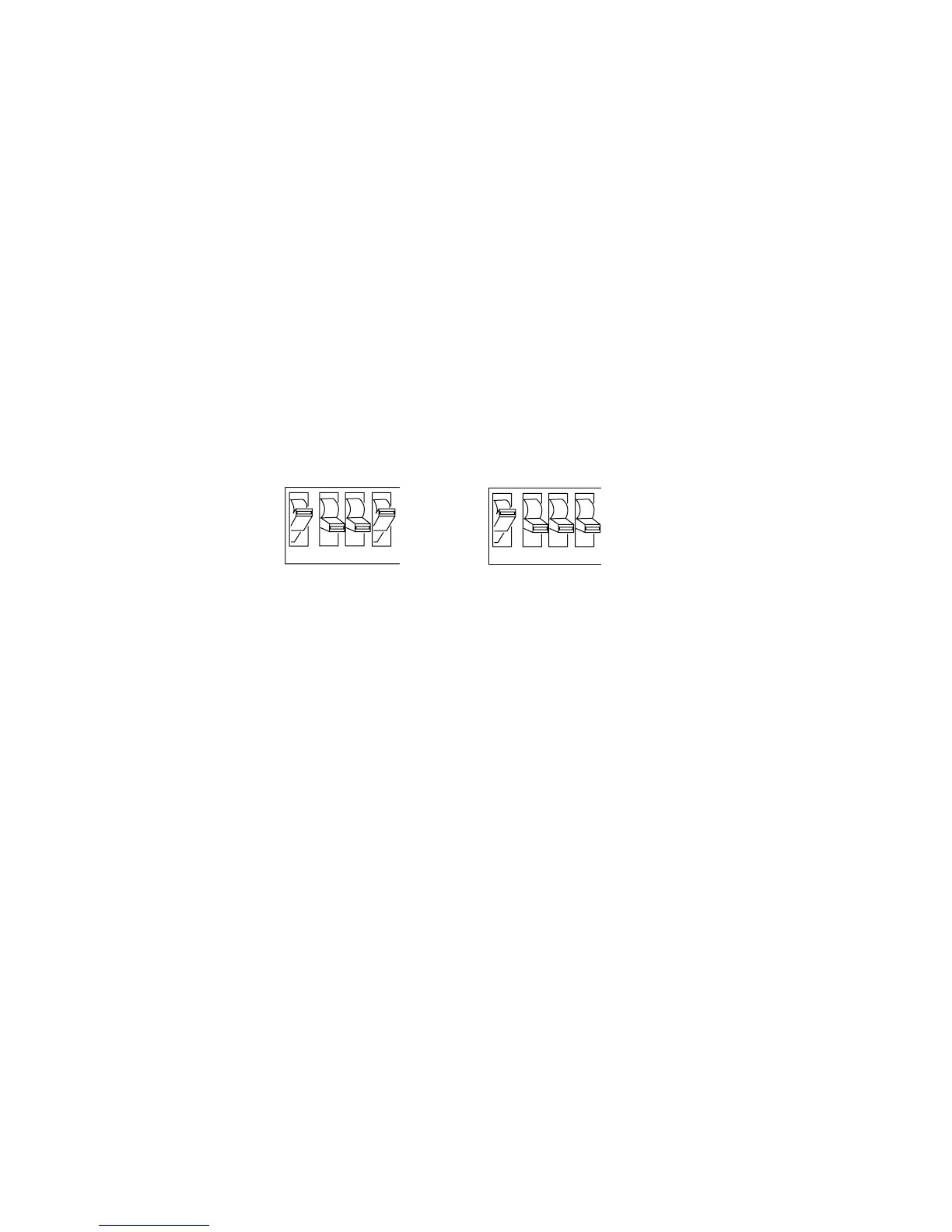

Switch settings
for retracting label
1 2 3 4
Switch settings
for feeding
label forward
Top Bank
OFF
ON
4. In the bottom bank of the Test and Service DIP switches, turn on or off the
appropriate DIP switches. See the Dot Increments DIP Switch Settings table
on page 6-10.
5. Press the Feed/Pause button.
The printer prints the software configuration label and stops at the new
location.
6. Verify that the label rest point number on the software configuration label
matches the number you set in Step 4.
7. Try printing again to see if you need to readjust the DIP switches in the
bottom bank.
8. If you need to readjust the DIP switches in the Bottom Bank, repeat Steps 4
through 7. If not, exit Test and Service mode by turning off the printer and
returning all DIP switches to their original settings.
