Appendix A — Specifications and Default Settings
96 CV41 Vehicle Mount Computer (Windows CE) User Guide
Virtual Wedge Settings
Use virtual wedge settings to configure the virtual wedge.
Virtual Wedge Setting
Port Pin Assignments
Use this section to learn about the ports pin assignments on the CV41,
smart dock, and cables.

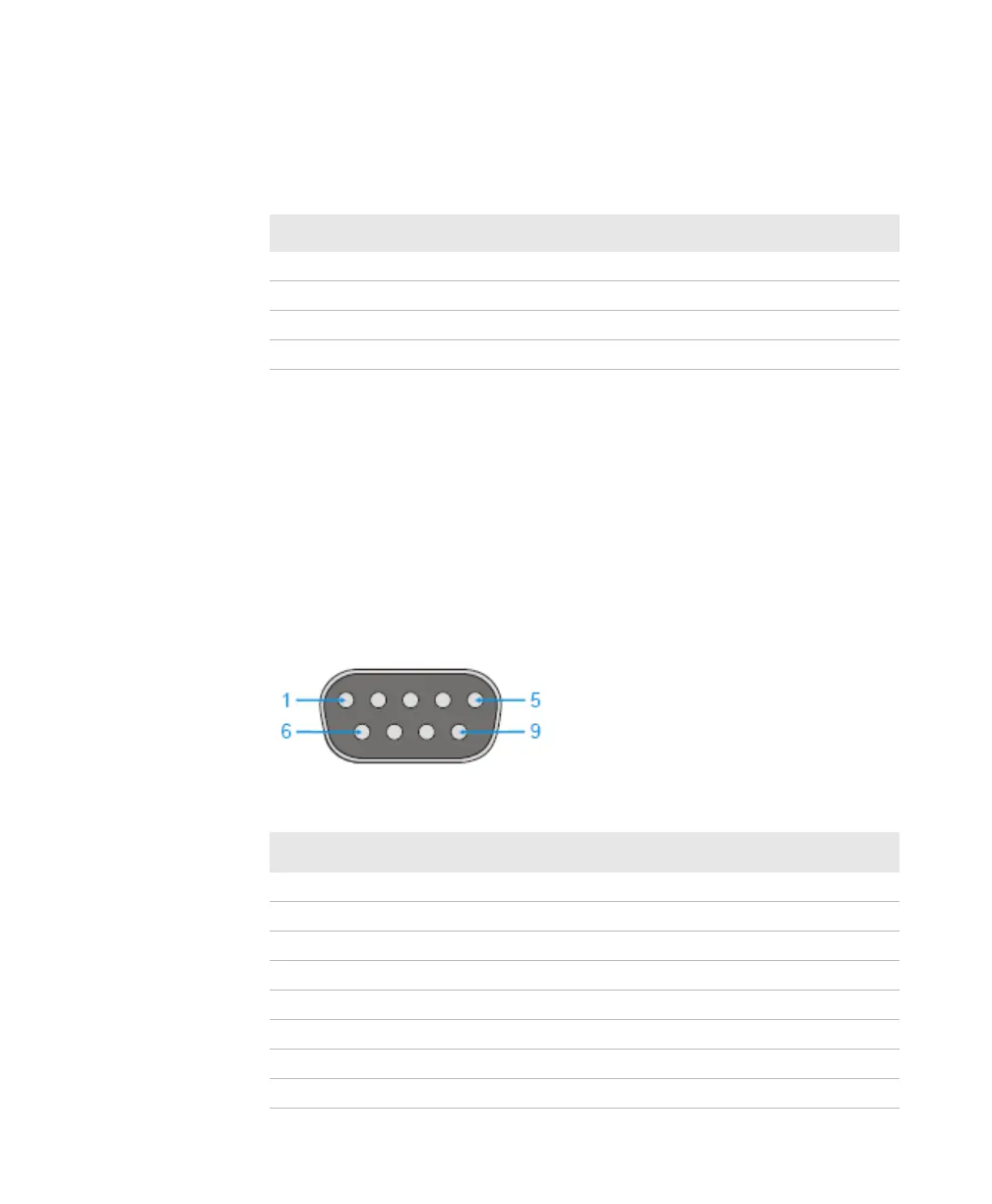

COM 1 and COM 2 Ports
The COM 1 and COM 2 ports are located on the smart dock. By
default, Pin 9 is configured to provide + 5 V for an external bar code
scanner, or it can be configured to provide RI.
COM 1 and COM 2 Port Pin Assignments
Virtual Wedge Settings Default Value
Virtual Wedge Enable
Virtual Wedge Method Adapt to Application
Barcode Scanner Grid Null
Label Encoding (Code Page) 1252(D)-ANSI Win3.1 US
Pin Signal Description
1 DCD Data carrier detect (input)
2 RXD Receive data (input)
3 TXD Transmit data (output)
4 DTR Data terminal ready (output)
5 GND Signal/power ground
6DSRData set ready (input)
7 RTS Request to send (output)
8 CTS Clear to send (input)
