Chapter 12 Maintenance
Printhead Replacement, cont.

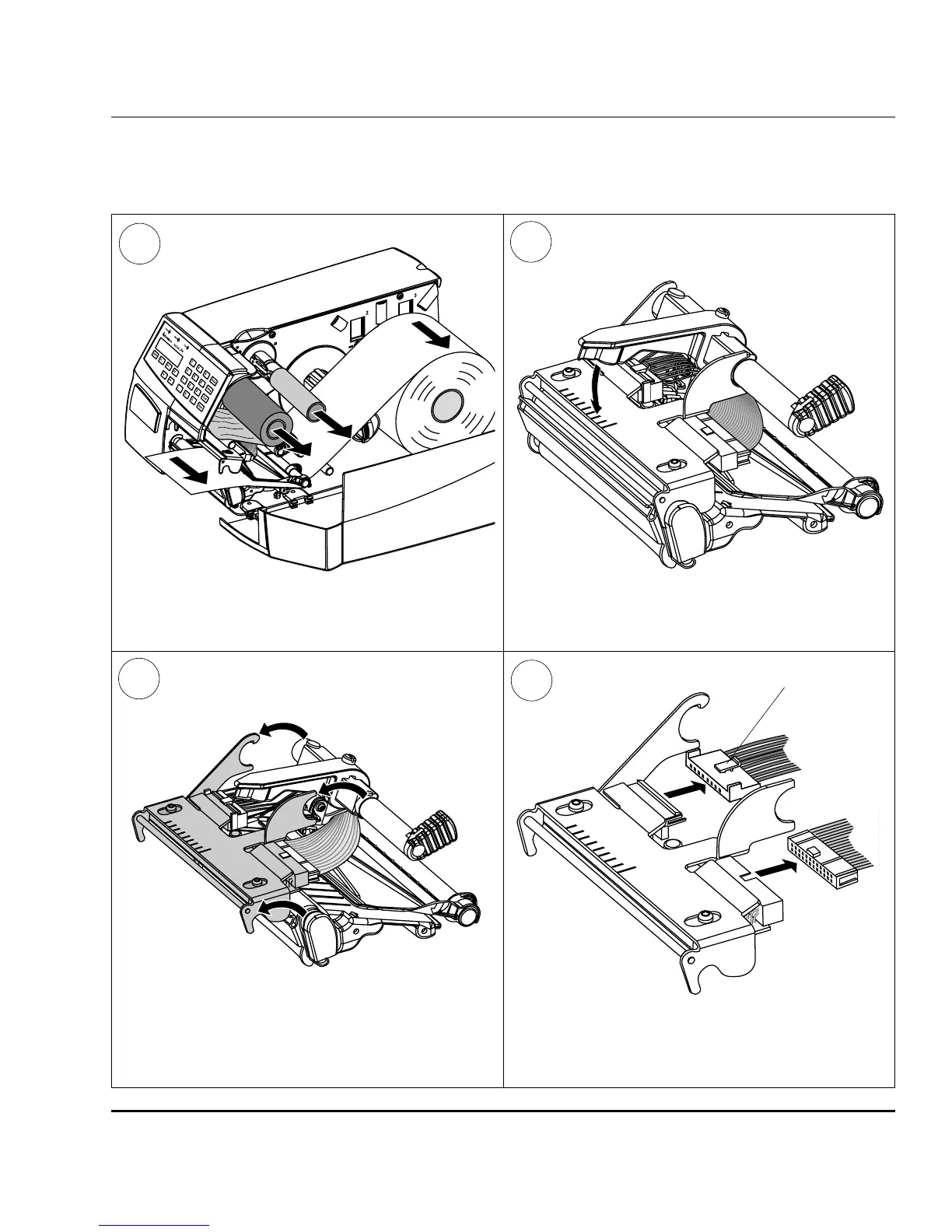

Pull the printhead bracket away from the
magnet in the pressure arm.
3
4
Disconnect the printhead bracket from the print
mechanism as indicated by the arrows and pull
out the printhead as far as the cables allow.
6
5
Disconnect the cables from the printhead. Note
the snap-lock on the inner connector. Pull at the
connectors–not the cables!
Remove any media and transfer ribbon.
Snap-lock
