4 EasyLAN Wireless Interface Kit Installation Instructions
Chapter 2 — Physical Installation
Step-by-Step Instructions
Switch off the printer and disconnect the power cord.
Disconnect all communication cables.
Remove the cover over the electronics compartment, as described on
the pages ahead.
e electronic compartment contains wires and
components with dangerous voltage (up to 380V). Make
sure that the printer is switched off and the power cord is
disconnected before the left-hand cover is removed.
EasyCoder PF2/4i Printers

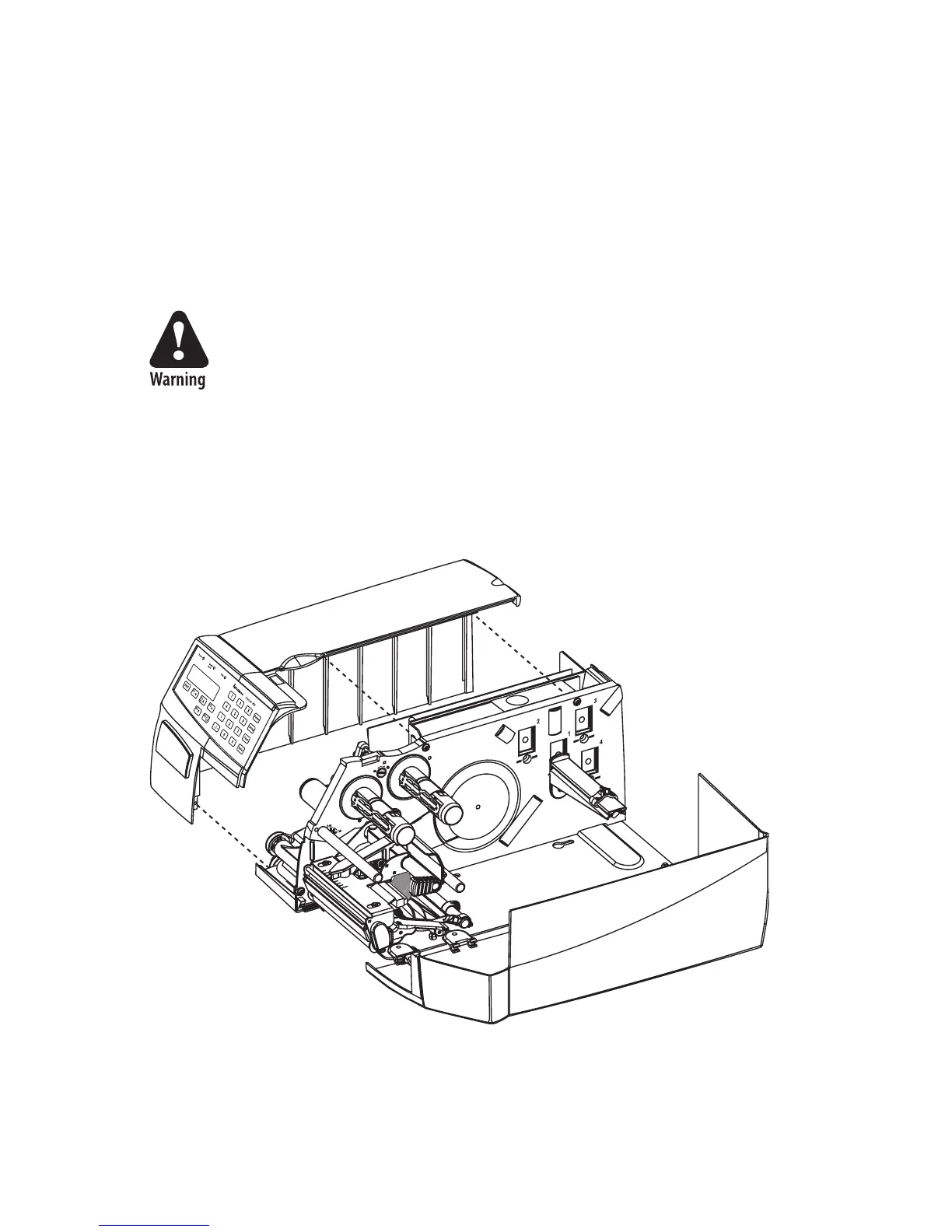

Open the right-hand door.
Using a #T20 Torx screwdriver, remove the three screws and lift the
cover up so it disengages the bottom plate.
Swing out the rear part of the cover so you can disconnect the console
cable from the CPU board.
Put the cover aside on a soft cloth or similar to avoid scratches.
