10 EasyLAN Wireless Interface Kit Installation Instructions
Chapter 2 — Physical Installation
Put back the cover over the electronics compartment.
Route the cable from the display unit above the ribbon motor.
Connect the cable to connector J50 at the upper front corner of the
CPU board.
Connect the power cord and switch on the power.
Enter Setup Mode and print the test label “Hardware Info” in
Fingerprint or “HW” in IPL to see if the printer detects the EasyLAN
Wireless interface board. For information on how to enter the Setup
Mode and print test labels, refer to the printer’s user's guide.

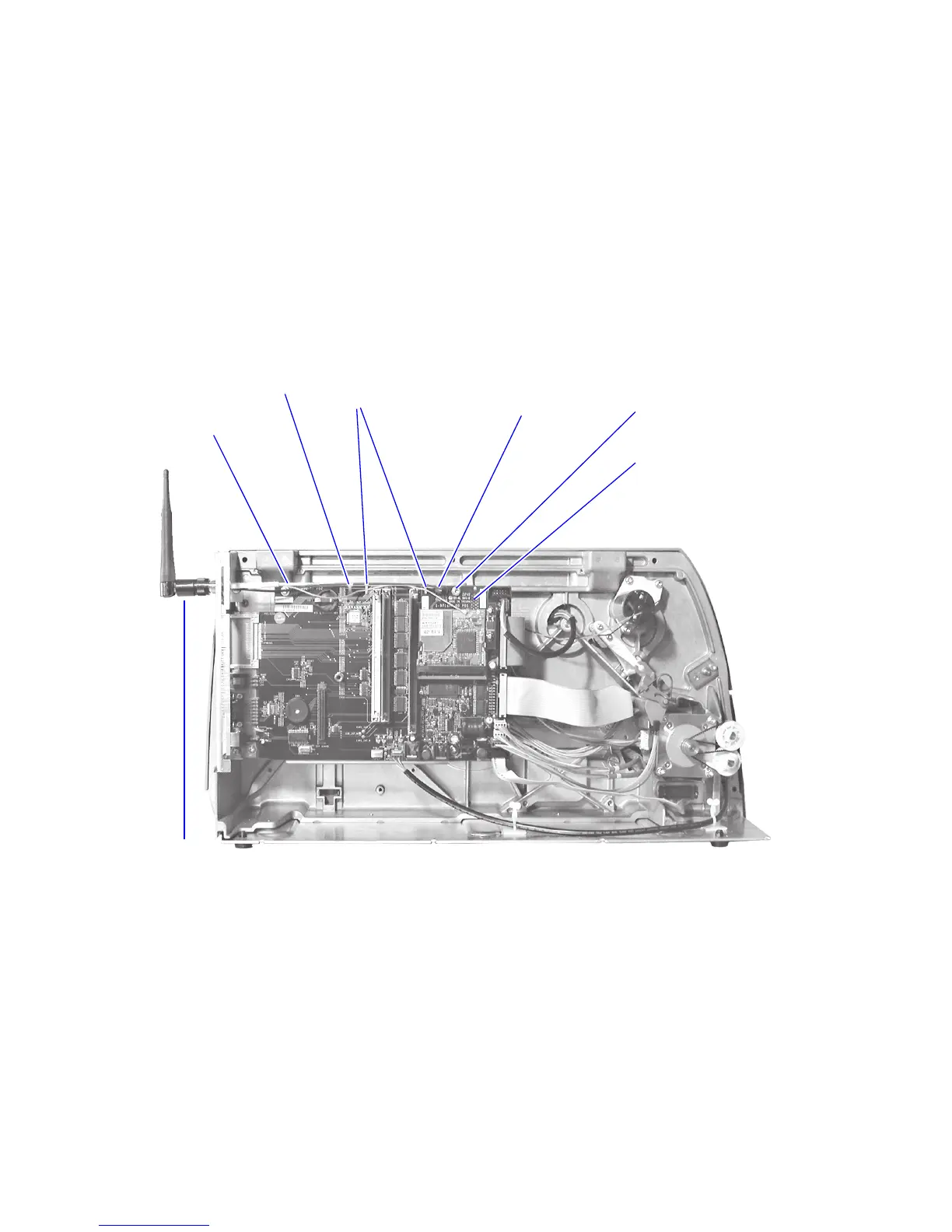

EasyCoder PM4i Printer
17
18
19
20
Antenna
EasyLAN adapter
board
Light guide
Cable clips
#T20 Torx screw
and spacer
Antenna
cable
Cable tie
