EasyLAN Wireless Interface Kit Installation Instructions 13
Chapter 2 — Physical Installation
From the inside of the electronics compartment, insert the antenna
connector through the round hole in the rear plate and lock it with
the washer and nut on the outside.
Fit the antenna to the connector of the antenna cable and bend the
hinge so the antenna points straight up.
From the outside, insert the thin end of the light guide through the
small hole next to the antenna on the rear plate. Press the clear plastic
“lamp” in place. Connect the other end to the black plastic socket
(D1) at the top of the EasyLAN adapter board. Secure it with the
cable tie through the hole at the upper edge of the CPU board.
Put back the cover over the electronics compartment.
Connect the power cord and switch on the power.
Enter Setup Mode and print the test label “Hardware Info” in
Fingerprint or “HW” in IPL to see if the printer detects the EasyLAN
Wireless interface board. For information on how to enter the Setup
Mode and print test labels, refer to the printer’s user's guide.
13
14
15
16
17
18

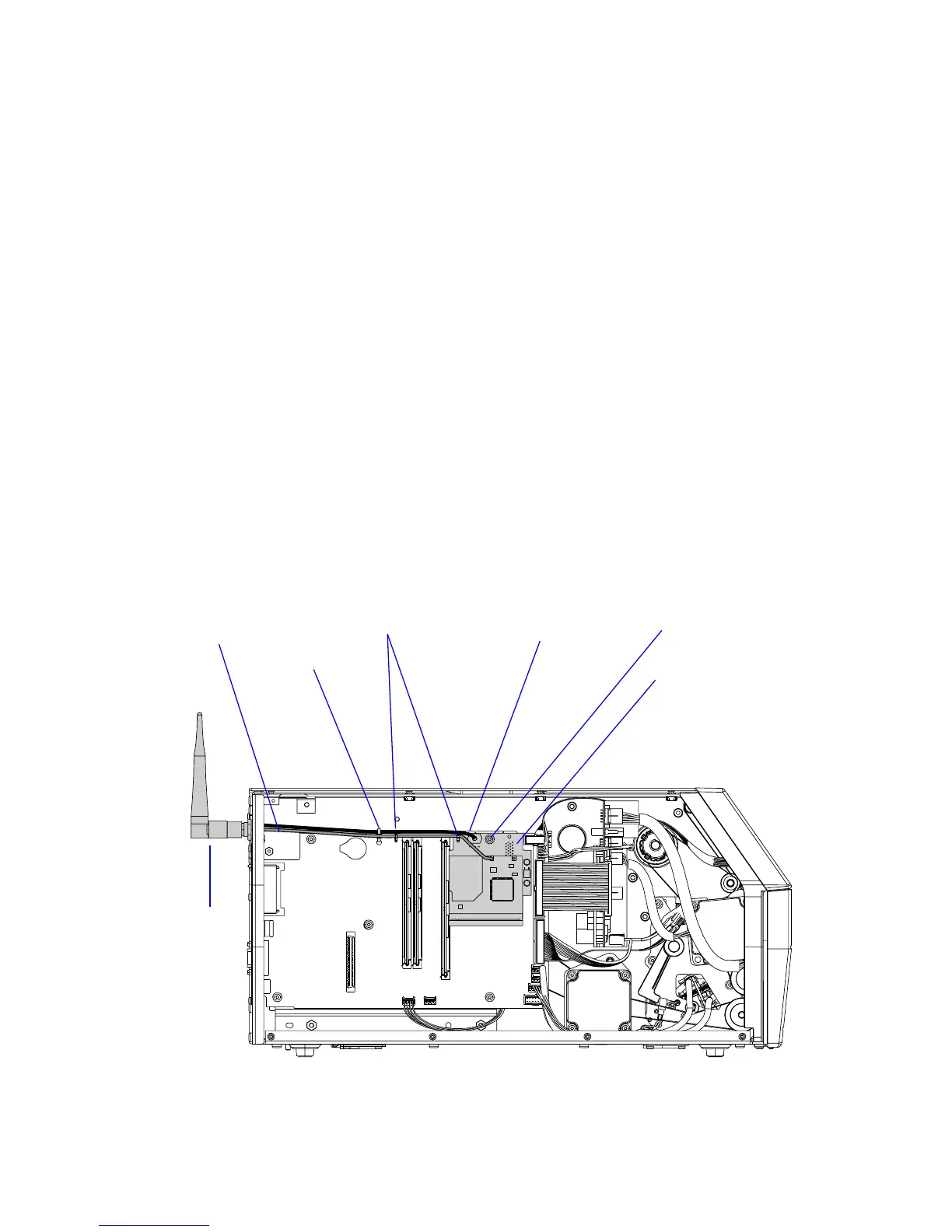

EasyCoder PX4/6i Printer
EasyLAN adapter
board
Light guide
Cable clips
#T20 Torx screw
and spacer
Antenna
cable
Cable tie
Antenna
