Chapter 2 — Configuring Interface Settings
30
SR60 Scanner Programm
er’s Reference
Manual

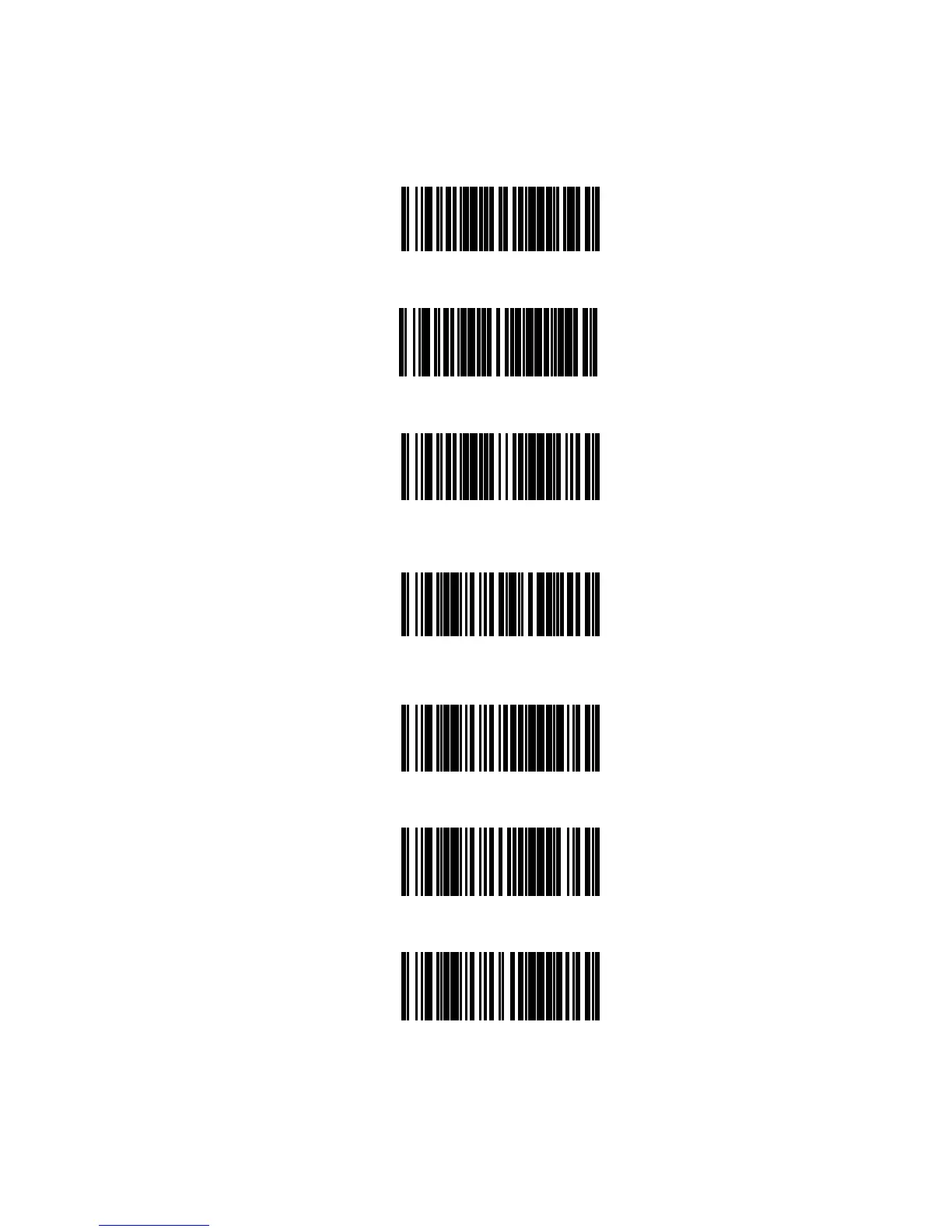

10 Milliseconds
---------
20 Milliseconds
---------
50 Milliseconds
---------
100 Milliseconds
---------
200 Milliseconds
---------
500 Milliseconds
---------
1 Second
---------
43
45
Table of Contents
Default Chapter
5
Table of Contents
5
Before You Begin
11
About Cautions and Notes
11
Global Services and Support
11
Warranty Information
11
Web Support
11
Telephone Support
12
Who Should Read this Manual
13
Related Documents
13
Learning about Programming the SR60 Scanner
15
What Is the SR60
16
Customizing Your Scanner's Operation
16
How to Program the SR60 Scanner
17
What Is Programming Mode
17
What Is a Programming Session
17
Three Sample Programming Sequences
19
Roadmap for Programming the Scanner
21
About the Scanner Leds and Beeper
21
Scanner Leds
21
Scanner Beeper
22
Integrating the Scanner with Your Host System
22
Changing the Interface Cable
23
Verifying that Your Scanner Supports the Interface
23
Removing and Replacing the Scanner Interface Cable
23
Reconfiguring the Interface Settings
24
Restoring Factory Default Settings
25
Trouble Scanning the Bar Codes in this Manual
26
Contacting Intermec Product Support
26
Configuring Interface Settings
27
Wand Emulation Interface
28
Wand Emulation Settings
28
Wand Emulation Pre/Post-Noise Settings
31
Keyboard Wedge Interface
33
PC Keyboard Interface Selection
33
Connect to a Laptop or PC and Send Control/Function Characters
36
Caps Lock
38
Country Mode
39
Intercharacter Delay
42
Quiet Interval
43
RS-232 Communication Parameters
45
Baud Rate
45
Data Format Settings
47
Handshaking
49
Hardware Handshaking
49
Software Handshaking
51
RS-232 ACK/NAK Options
53
RS-232 Intercharacter Delay
54
USB Interface
56
Configuring Label Transmit Settings
61
When to Configure Label Transmit Settings
62
How to Use the Prefix, Suffix, and Label ID
62
Setting Global Prefixes and Suffixes
63
Setting Global Prefixes
63
Setting Global Suffixes
64
Disabling a Global Prefix or Suffix
66
Setting a Prefix or Suffix
67
Setting a Prefix or Suffix for a USB Interface
68
Setting an EOM for a USB Interface
70
Setting a Prefix or Suffix for a Multi or Decoded Interface
72
Setting a Label ID
73
About Symbology-Specific Label Identifiers
73
Setting the Label ID Location
75
Setting a Symbology-Specific Label ID
76
Selecting the Symbology
77
Setting a Single-Character Label ID
81
Disabling a Symbology-Specific Label ID
82
Enabling and Configuring Symbologies
83
All Symbologies Supported by All Interfaces
84
Enabling Symbologies
84
Code 39/Pharmacode 39 Options
89
About Code 39 Options
89
Check Digit
89
Code 39 Full ASCII
89
Minimum Label Length
89
Read Verification
89
Start/Stop Characters
89
Code 39 Emulate Function Keys
90
Configuring the Code 39 Options
90
Minimum Label Length
91
Read Verification
94
Code 39 Emulate Function Keys
95
About Pharmacode 39 Options
96
Start/Stop Characters
96
Transmit Check Digit
96
Configuring the Pharmacode 39 Options
96
Code 128 and UCC/EAN 128 Options
97
About Code 128 and UCC/EAN 128 Options
97
Read Verification
97
Setting Minimum Label Length
97
Configuring the Code 128/And UCC/EAN 128 Options
98
Minimum Label Length
98
Read Verification
100
Interleaved 2 of 5 Options
101
About Interleaved 2 of 5 Options
101
Check Digit
102
Label Length Format
102
Read Verification
103
Configuring the Interleaved 2 of 5 Options
103
Label Length Format
104
Variable Length Format
104
Fixed Length Format
105
Read Verification
109
Codabar Options
110
About Codabar Options
110
Check Digit
110
Gap Check
110
Label Length Format
110
Start/Stop Characters
111
Start/Stop Match
111
Start/Stop Format
112
Read Verification
112
Configuring the Codabar Options
112
Label Length Format
113
Variable Length Format
113
Fixed Length Format
114
Read Verification
119
UPC/EAN Options
120
About UPC/EAN Options
120
Data Format Settings
120
UPC/EAN Add-Ons
120
UPC/EAN Expansion
120
Price/Weight Check Digit
121
Read Verification
121
Configuring the UPC/EAN Options
121
UPC Data Format Settings
121
EAN Data Format Settings
123
UPC/EAN Expansion
124
UPC/EAN Add-Ons
126
Custom Add-Ons
128
Price/Weight Check Digit
128
Read Verification
129
Code 93 Options
131
About Code 93 Options
131
Minimum Label Length
131
Read Verification
131
Configuring the Code 93 Options
132
Minimum Label Length
132
Read Verification
134
Standard 2 of 5/IATA Options
135
About Standard 2 of 5/IATA Options
135
Check Digit
135
Label Length Format
136
Read Verification
137
Configuring the Standard 2 of 5/IATA Options
137
Label Length Format
138
Variable Length Format
138
Fixed Length Format
139
Read Verification
142
IATA Options
143
Msi/Plessey Options
144
About Msi/Plessey Options
144
Check Digit
144
Label Length Format
144
Configuring the MSI /Plessey Options
145
Read Verification
145
Label Length Format
146
Variable Length Format
146
Fixed Length Format
147
Read Verification
151
Configuring General Features
153
Configuring the Green LED Idle State
154
Configuring the Beeper Settings
154
Configuring the Marker Beam
158
Configuring the Low Power Mode
160
Configuring the Low Power Shutdown Delay
162
Configuring the Half Angle
163
Factory Default Configuration
165
Factory Default Configuration
166
Reference Information
171
Sample Bar Codes
172
Keypad Bar Codes
174
RS-232 Host Commands
177
ASCII Character Set
178
Full ASCII Chart
179
ASCII Extended Chart
189
