Chapter 3 — Configuring Label Transmit Settings
62 SR60 Scanner Programmer’s Reference Manual
Setting a Symbology-Specific Label ID
You can configure a label ID for each symbology.
To set a symbology-specific label ID
1 Using the ASCII table on page 164, identify the ASCII
character(s) and the corresponding hex code(s) for the ASCII
characters you plan to use as the label ID.
For example, suppose you want to change the label ID for
UPC-A to A1. The ASCII chart shows that A equals 41 hex
and 1 equals 31 hex.
2 Scan the SET bar code on page 63.
3 Using the bar codes in “Selecting the Symbology” on page 63,
scan the bar code representing the symbology whose Label ID
you want to change.
For this example, you would scan the UPC-A symbology bar
code.
4 Using the list of bar codes that starts on page 160, scan the
four digits corresponding to the hex values you chose in
Step 1.
For this example, you would scan 4, 1, 3, and 1.

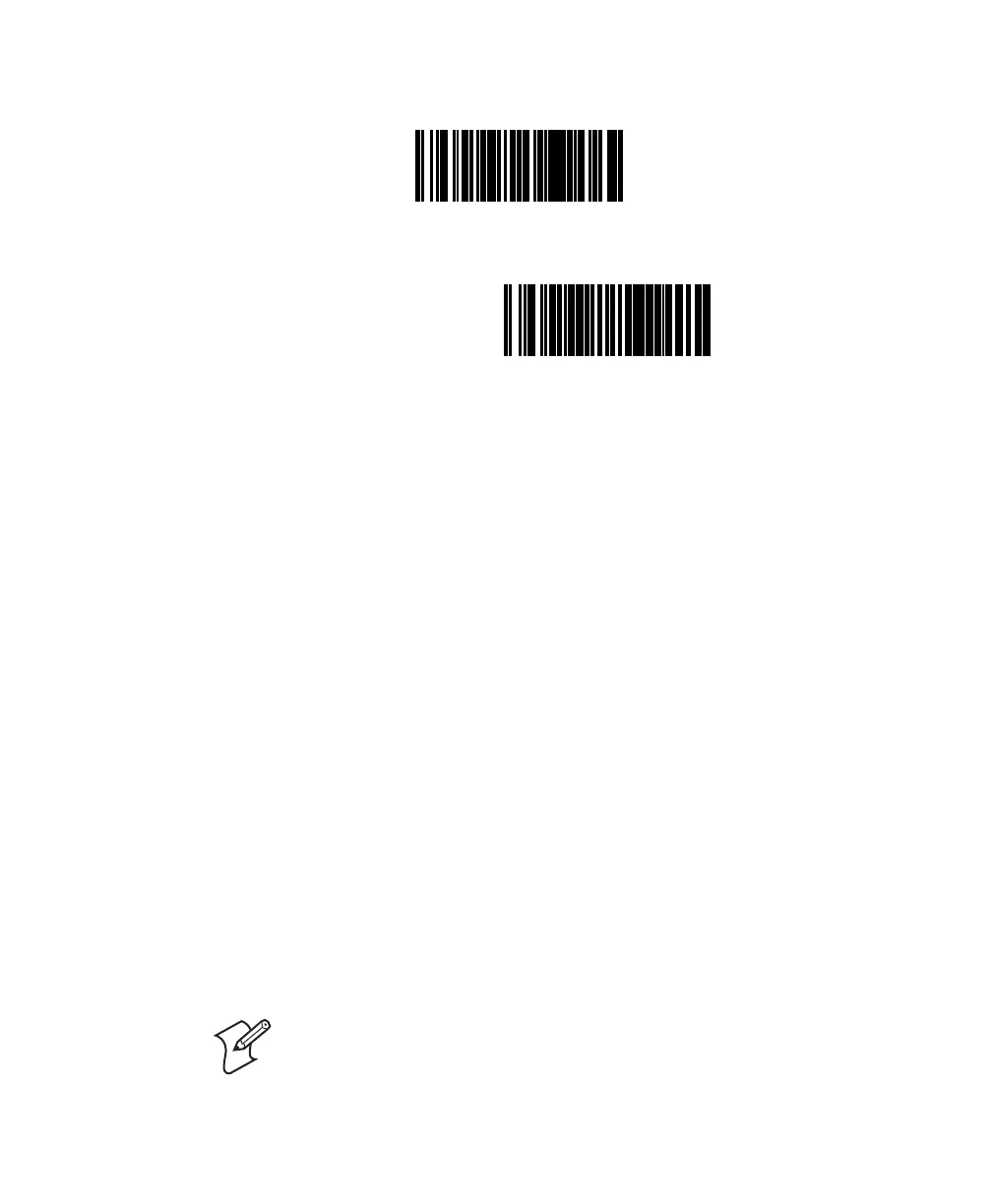

Position Label ID
as Suffix ---------
END------------------------------------
Note: Successful programming requires four digits for the
label ID.
