9006 Hybrid Control for RollerDrive
Principle of zones
Zone A has a package at the photoeye. The 9006 of zone A
recognizes its presence, checks zone B for availability and requests permission
to transfer the package to zone B. Since zone B has also a package, its
9006 denies the permission until this package has been transfered to
zone C (singulation mode), or has at least started being transfered (enhanced
singulation mode). The singulation method depends on the setting of DIP switch
SW3.
The 9006 of zone A will only start to operate the RollerDrives in its
zone after it gets permission from the 9006 of zone B.

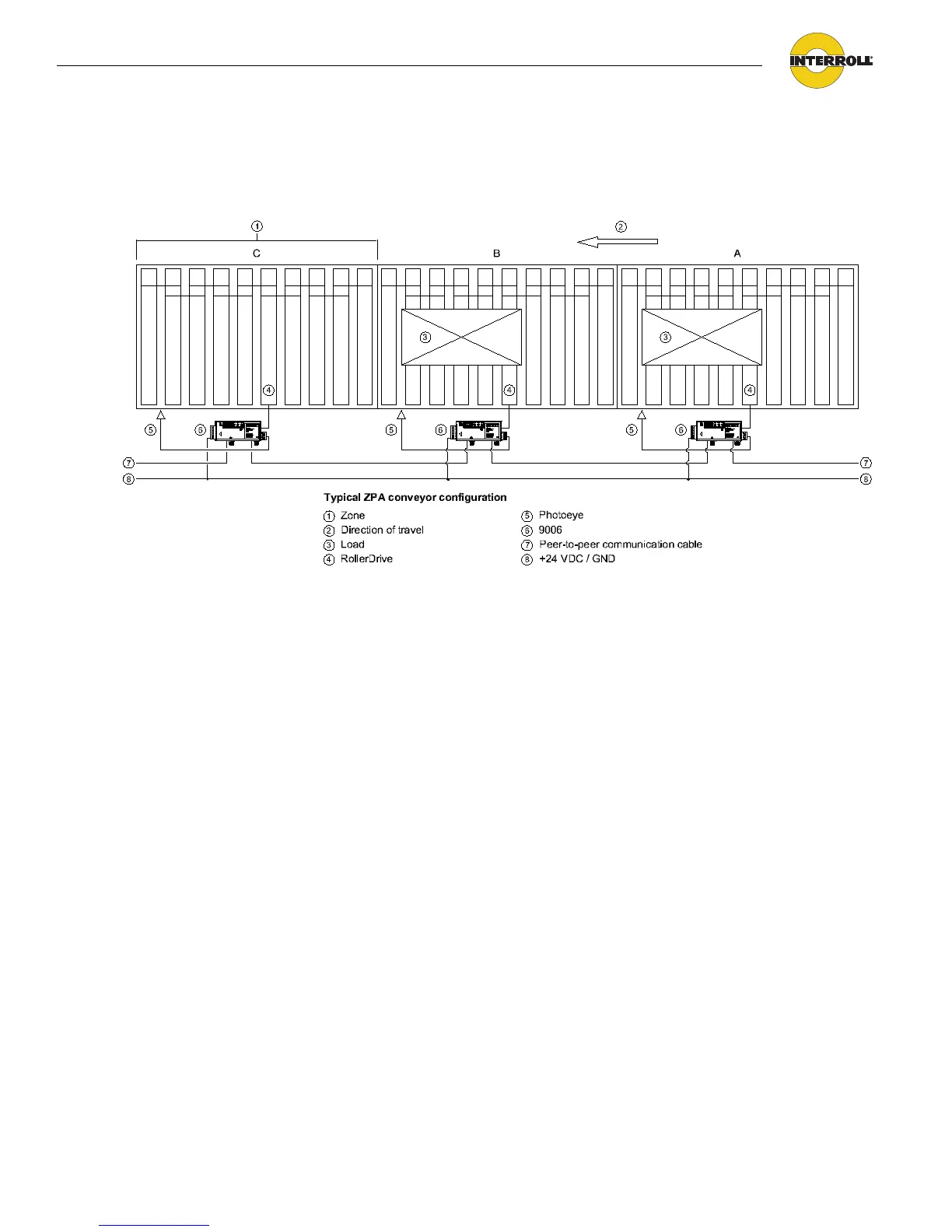

1 Zone
2 Direction of travel
3 Load
4 RollerDrive
5 Photoeye
6 HC-DriveControl
7 Peer-to-peer communication cable
8 +24 VDC / GND
