9006 Hybrid Control for RollerDrive
Product information
• Local jog and reverse are always enabled, but upstream and downstream
propagation are controlled by DIP switch 4 and DIP switch 5 respectively.
• It is now simple to use DIP switch 4 and DIP switch 5 to define jog/reverse
groups, or to defeat jog and reverse completely (recommended whenever not
in use).
• If the RollerDrive is mounted with the cable exiting the opposite side of the
conveyor frame, switch SW2 has to be set in the opposite position to maintain
equal direction of travel.
• For special cases see "Setting options and wiring diagrams", page 20

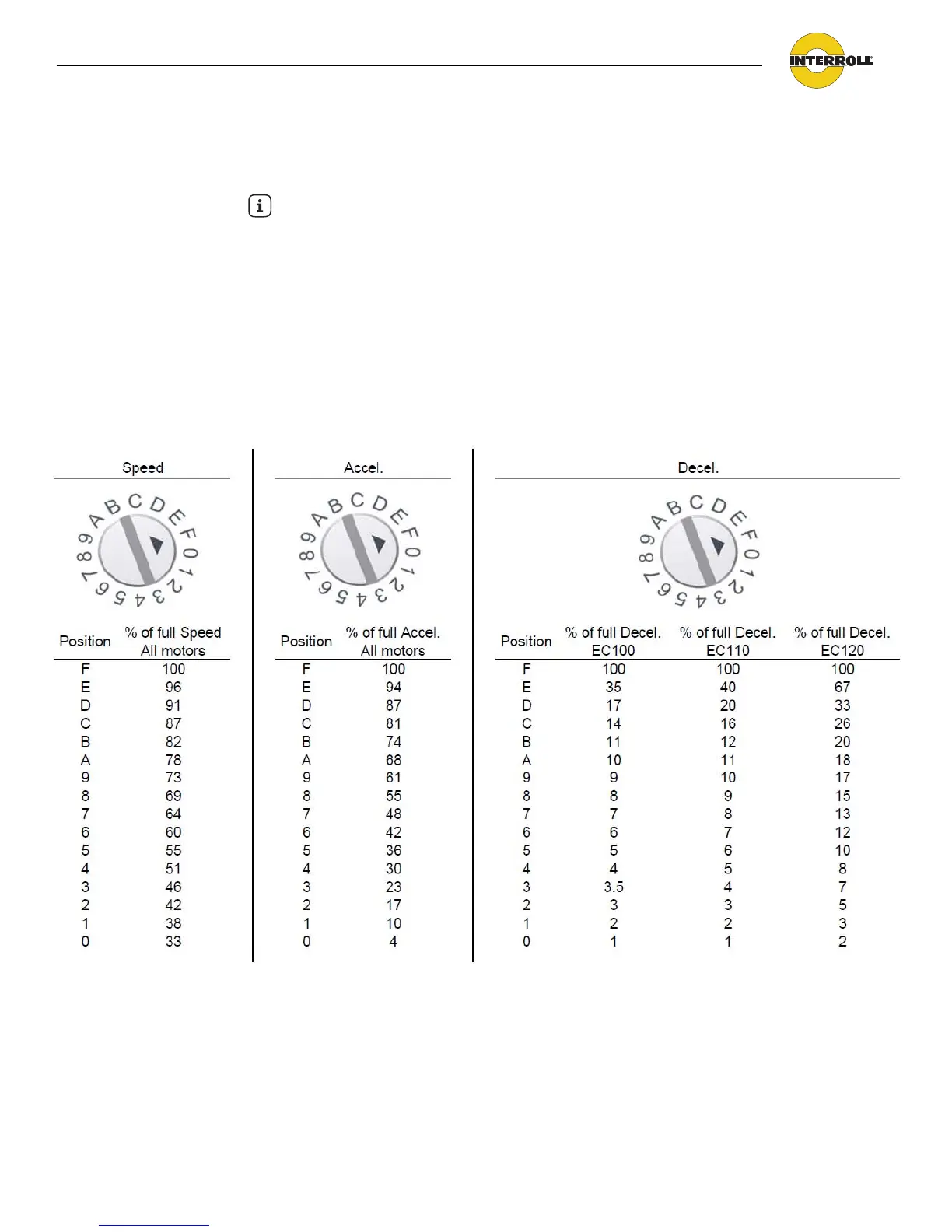

Rotary switches (16 position)
