Assembly
RollerDrive EC200

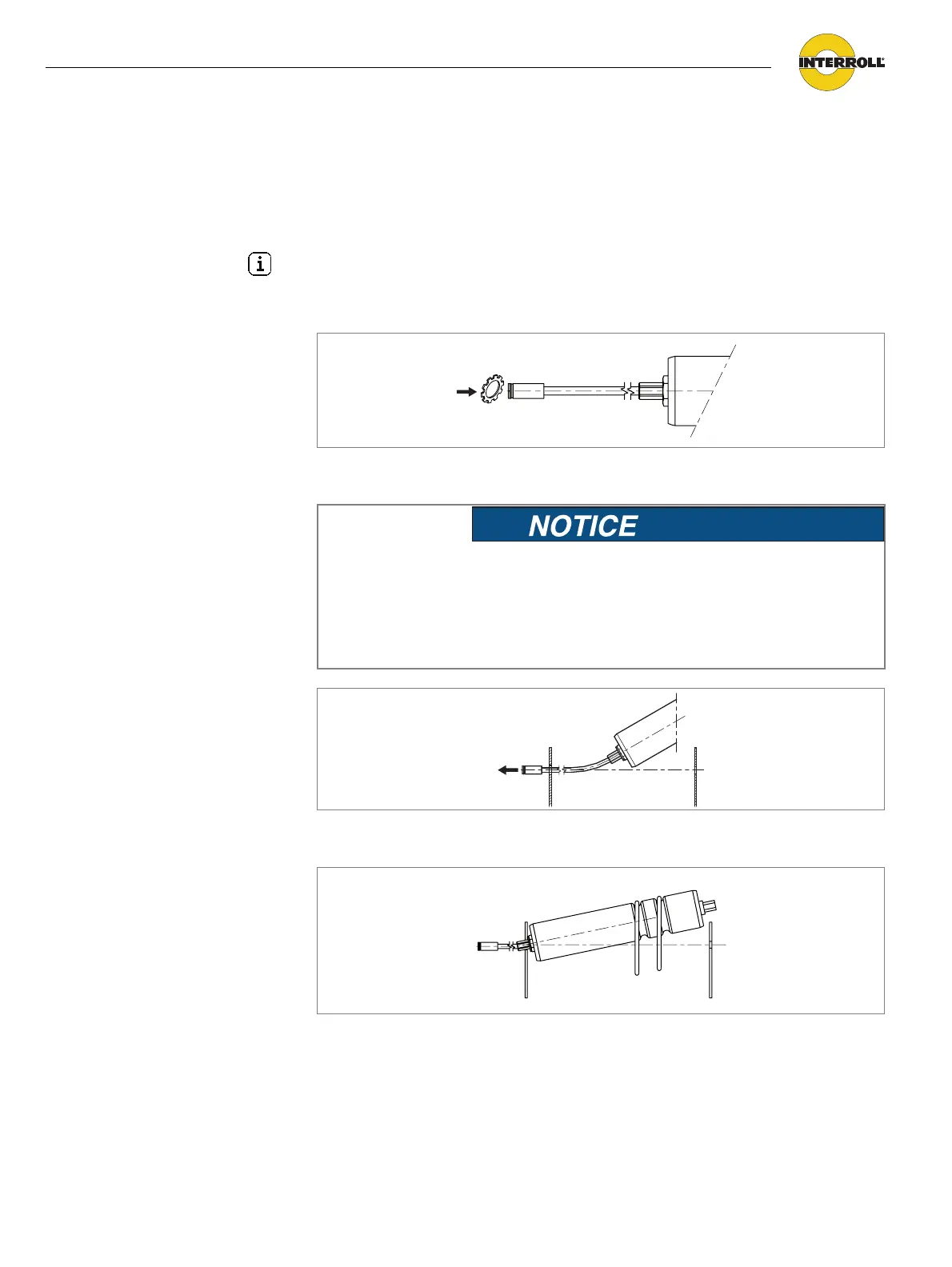

Inserting the RollerDrive EC200 in the conveyor frame
Inserting the motor shaft ¾ Remove the shipping tube from the RollerDrive/harness assembly.
¾ Place a first star washer on the motor shaft.
¾ Pass the motor cable through the 11 mm (0.44 in) hex hole in the conveyor
frame and insert the motor shaft into the hex hole.
¾ Place one or two standard 4 mm, max. 5 mm (3/16 in) O-rings or RollerDrive
belts (if used) on the idler end of the RollerDrive.
Hint
Use caution when cutting the tie-wrap from the harness. Do not cut any of the
sleeving or wires on the assembly.
Internal damage of the RollerDrive due to improper
handling
¾ Do not install the securing hardware at this time.
¾ Do not bend the motor cable at the motor shaft. Leave
a minimum of 12 mm (0.5 in) of excess cable for stress
relief.
