Outdoor Software Defined Radio (OSDR) platform
Installation & Cabling Manual - Edition 3.0
85
Radio Unit Optical Cable (Optional), Continued
Procedure, continued
Step Action

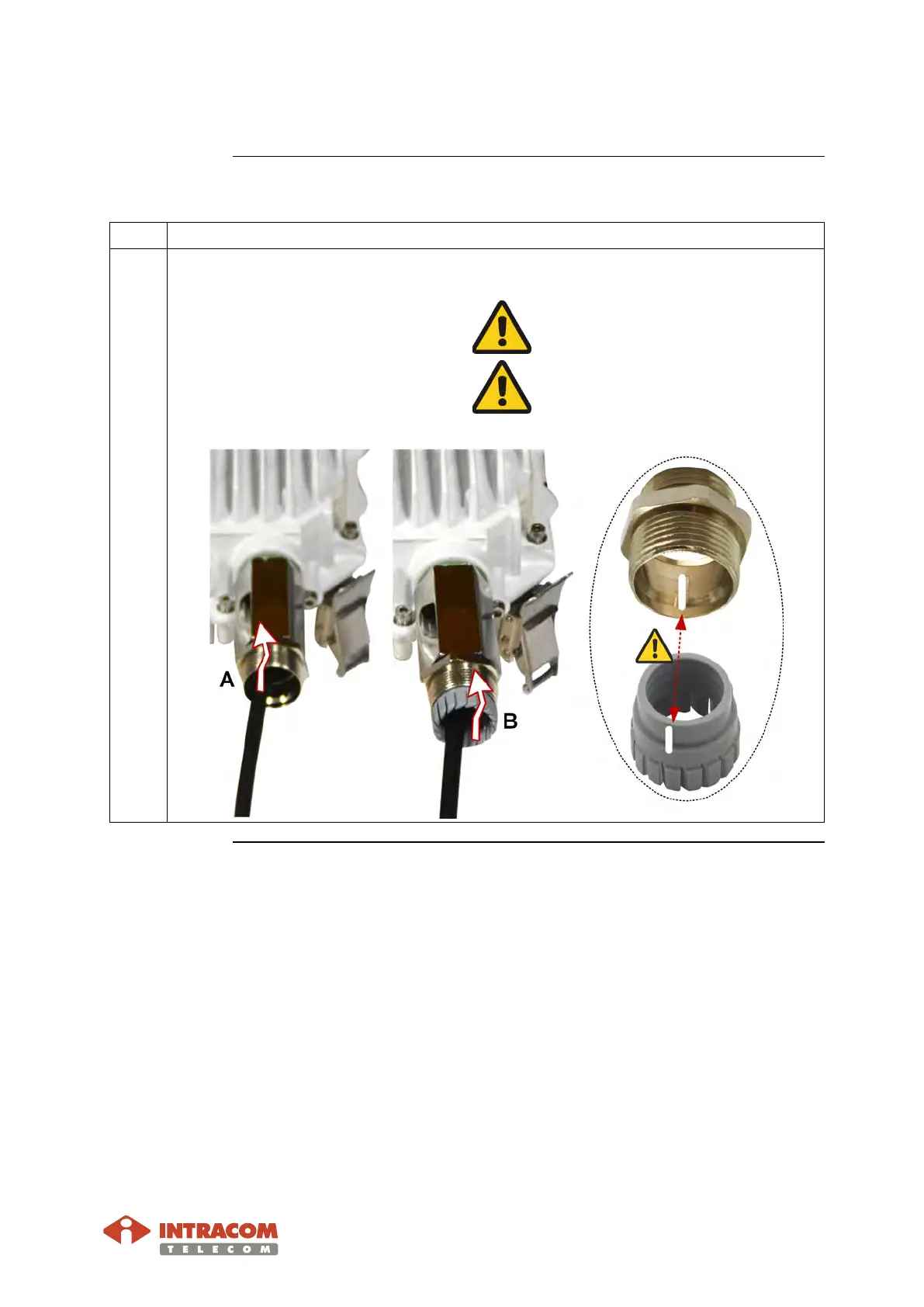

5 Perform the following actions:
A:
Screw the body into the body
extension thread.
Do not over tighten. Adjust the
tool for max tightening torque
10 Nm.
B:
Insert claw into the body
(taking into account the
caution).
Align the designated points.
Misaligning of parts will cause
damage.
