9.Toreplacetheactuator(s),reverseSTEPS5-7.
10.ReverseSTEPS3–4toreplacethesmallbasecoversand
largebasecover .

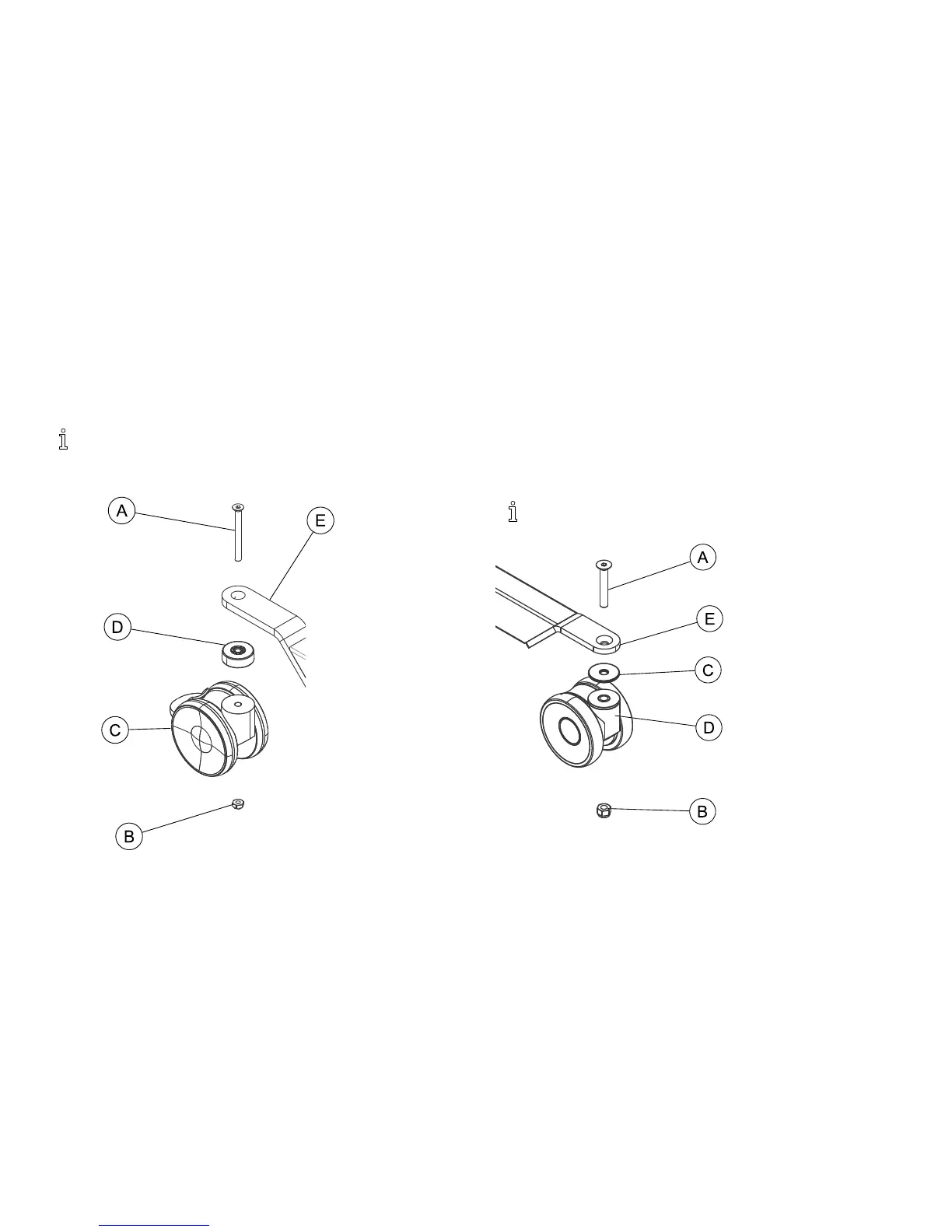

8.7ReplacingRearCasters
Thisprocedureshouldonlybeperformedbya
qualiedtechnician.
1.Placetheliftonitsside.
2.RemovetheboltAandlocknutBthatsecurethe
existingrearcasterCandbearingDtotherearcaster
bracketE.
3.Installtheboltthroughtherearcasterbracket,bearing
andnewrearcaster.Applythreadlockerandtighten
securelywiththelocknut.
8.8ReplacingFrontCasters
Thisprocedureshouldonlybeperformedbya
qualiedtechnician.
