4.4AssemblingtheKneePadtotheMast
Assembly
Thekneepadmayberemovedfromthestandassist
liftforstorageortransporting.ThekneepadMUST
beproperlysecuredtothemastassemblybeforeuse.

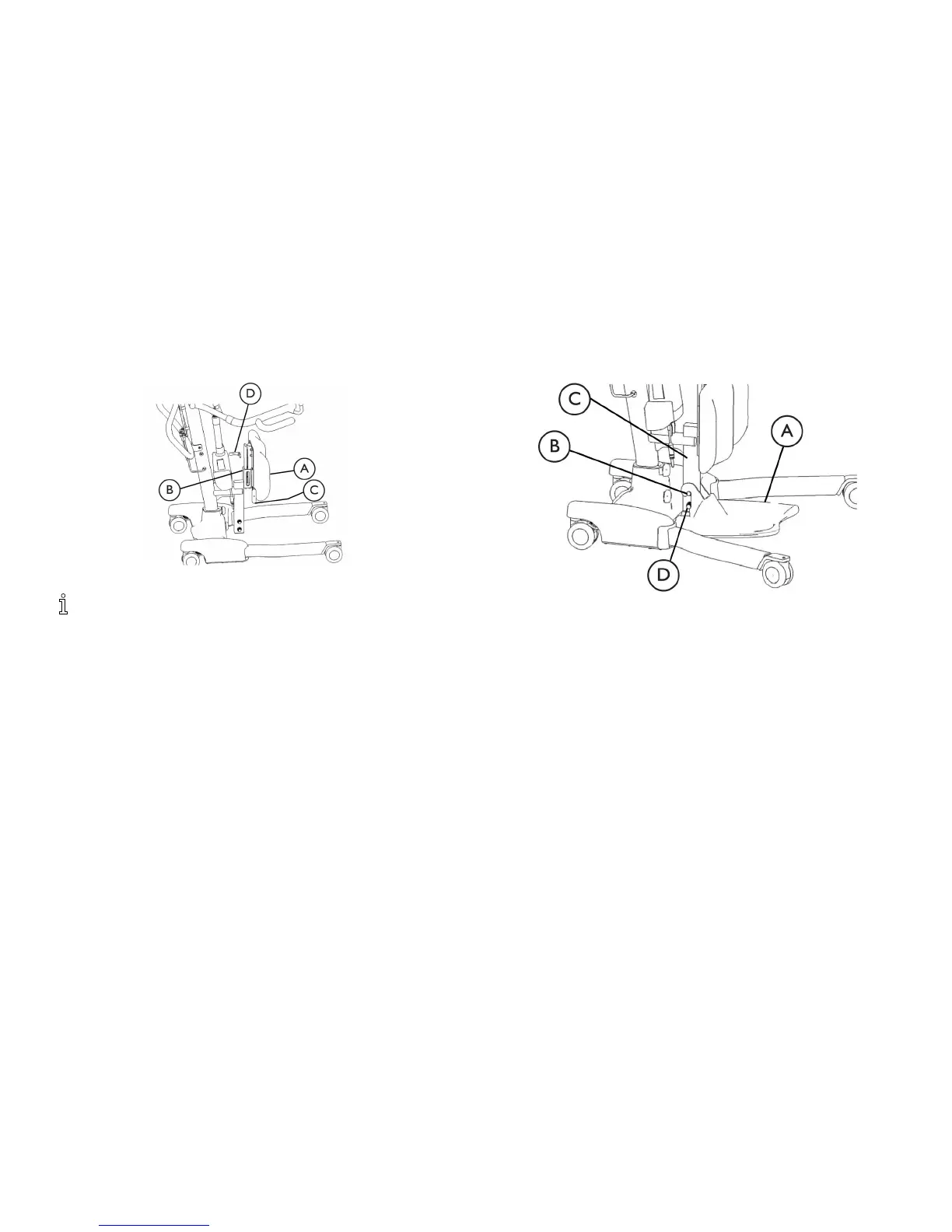

1.PushthekneepadAdownintopositionontheknee
padmountingbracketBonthemastassembly.
2.PutthexblockCinplaceonthekneepadmounting
bracket.
3.InsertthequickreleaseknobDthroughthemounting
bracket,kneepadandxblock.
4.Tightenthequickreleaseknob.
5.Toadjustthekneepad,refertoAdjustingtheKneePad
HeightintheMaintenancesectionofthemanual.
4.5AssemblingtheFootPlatetotheMast
Assembly
1.RotatethefootplateAupandplacethehooks
attachedtothefootplateontothetopmountingbolts
BinthemastassemblyC.
2.Rotatethefootplatedowntowardsthebaseassembly.
Thebottomofthefootplatewillrestagainstthe
bottomboltsDonthemastassembly.
3.Ensurethatthefootplateislevelandsecure.
