enough air. Ensure that there is no obstacle to the air intake and exhaust of the outdoor unit. If
there is any obstacle blocking the air intake or exhaust, remove it.
3. Place of installation should be strong enough to support the weight of outdoor unit, and it should
be able to insulate noise and prevent vibration. Ensure that the wind and noise from the unit will
not affect your neighbors.
4. Avoid direct sunshine over the unit. It is better to set up a sun shield as a protection.
5. Place of installation must be able to drain the rainwater and defrosting water.
6. Place of installation must ensure the machine will not be buried under snow or subject to the
influence of rubbish or oil fog.
7. The installation site must be at a place where the air exhaust outlet does not face strong wind.

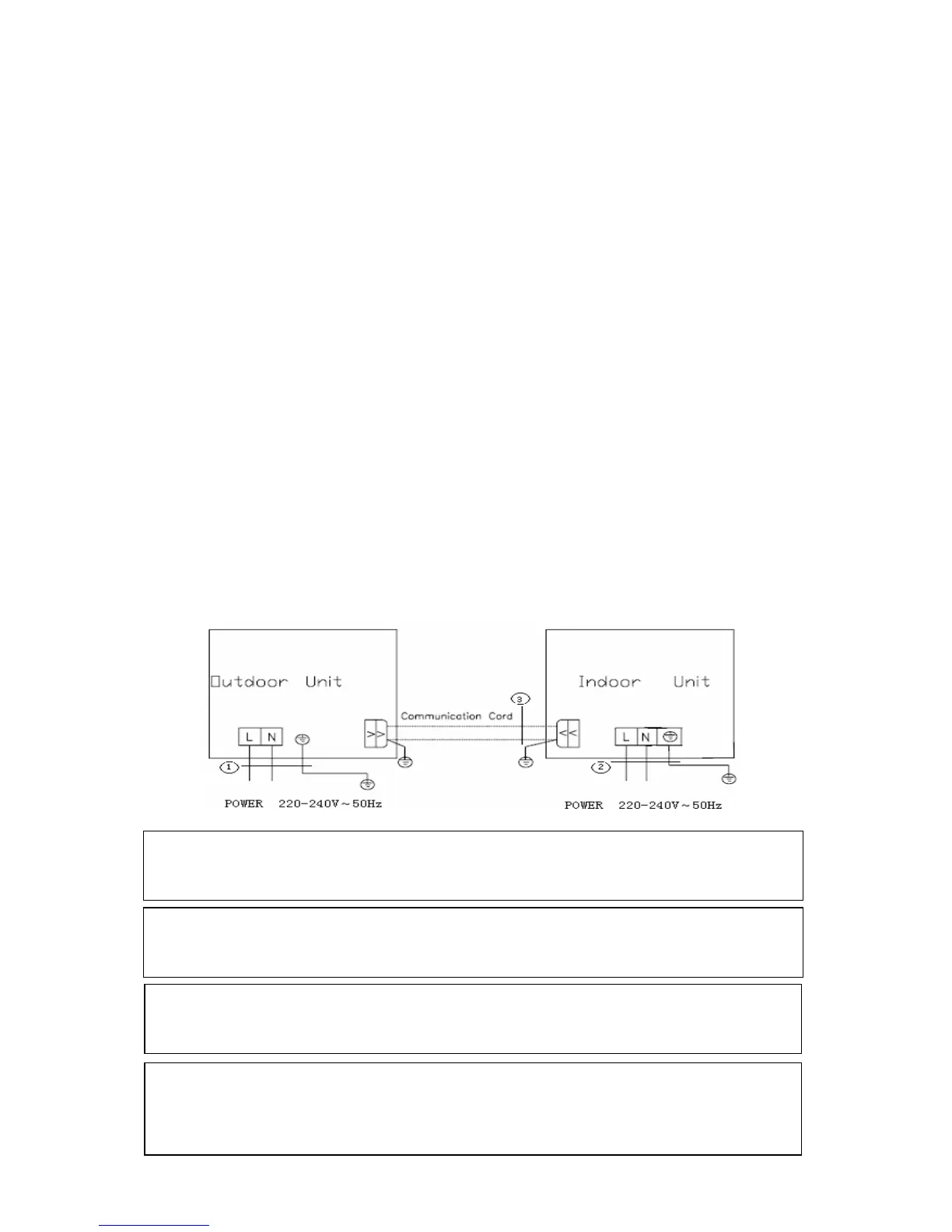

12.4 Schematic Diagram of Unit Line Connection
Electric wiring connection
The section area of cables selected by users must not be smaller than the specifications shown in
the following diagram. The signal wire between indoor and outdoor unit will be installed in the shielded
bushing.
Fig.54
1.Power cord 3×2.5 mm2(H07RN-F) 2.Power cord 3×1.0 mm2(H05VV-F)
3.Communication Cords
1.Power cord 3×4 mm2(H07RN-F) 2.Power cord 3×1.0 mm2(H05VV-F)
3.Communication Cords
1.Power cord 3×4 mm2(H07RN-F) 2.Power cord 3×1.5 mm2(H05VV-F)
3.Communication Cords
1.Power cord 3×6 mm2(H07RN-F) 2.Power cord 3×1.5 mm2(H05VV-F)
3.Communication Cords
U1RS-09
U1RS-12
U1RS-18
U1RS-24
U1RS-45
U1RS-48
U1RS-30
U1RS-36
+
+
+
+
+
+
+
+
V1KI-09
V1KI-12
V1KI-18
V1KI-24
V1KI-30
V1KI-36
V1KI-45
V1KI-50
U1RS-09
+
V1KI-09
U1RS-12
+
V1KI-12
U1RS-18
+
V1KI-18
U1RS-24
+
V1KI-24
U1RS-45
U1RS-30
+
+
V1KI-30
V1KI-45
U1RS-36
+
V1KI-36
U1RS-48
+
V1KI-50
