INVT DA180-S5R0SG0

DA180 series basic AC servo drive Overview
-8-

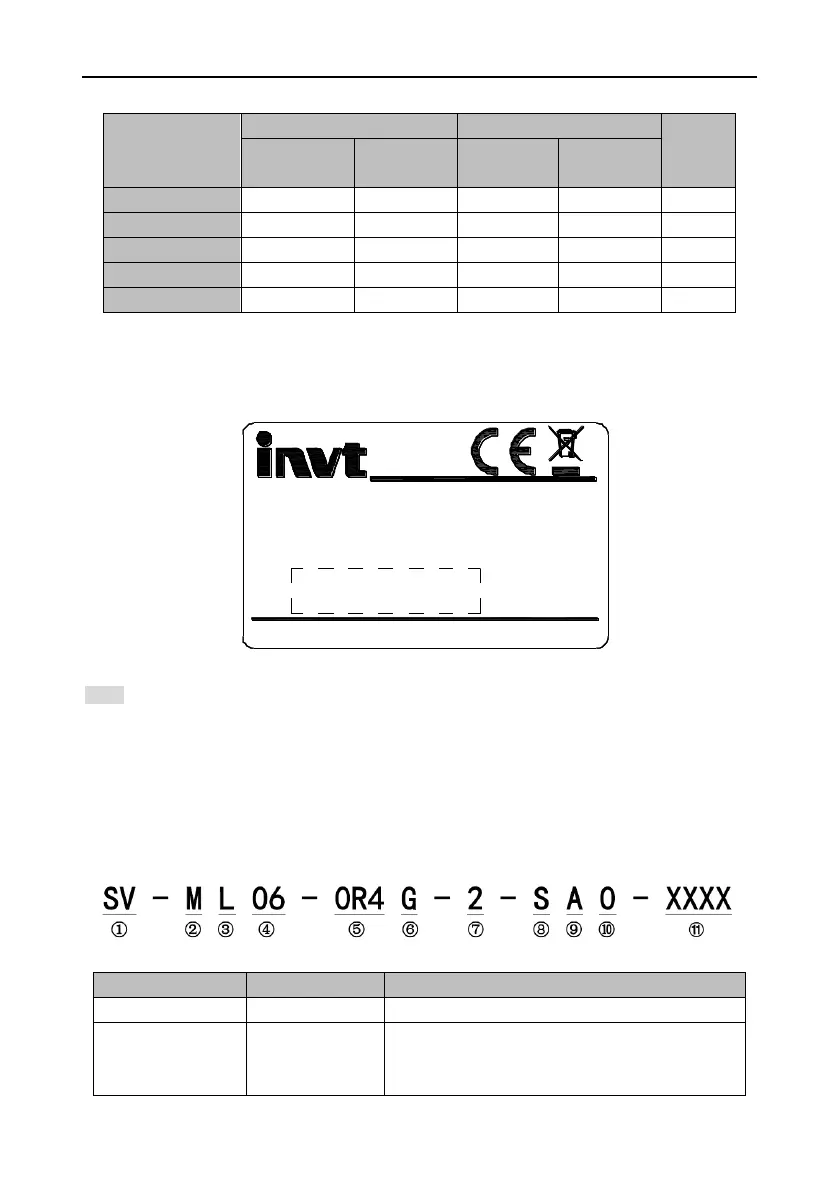

1.1.5 Drive ratings and frame sizes
Model
Input
Output
Frame
size
Voltage (V)
Rated
current (A)
Power (kW)
Rated
current (A)
DA180-S1R3SG0
1PH 220
0.9
0.1
1.3
A
DA180-S1R8SG0
1PH 220
1.8
0.2
1.8
A
DA180-S2R8SG0
1PH 220
3.6
0.4
2.8
A
DA180-S4R5SG0
1PH 220
6.8
0.75
4.5
B
DA180-S5R0SG0
1PH 220
9.1
1.0
5
B
1.2 Servo motor
1.2.1 Motor nameplate
S/N:
INPUT: AC 3PH 220V 2.8A
OUTPUT(RATED): 400W 3000r/min 1.3N·m
MADE IN CHINA
INVT INDUSTRIAL TECHNOLOGY CO.,LTD.
MODEL: SV-ML06-0R4G-2-SA0-1000
IP65 S1 CLASS F NO.3010004
Note: "No. 3010004" in the nameplate indicates the motor model code (motor code for short). Enter
this code to the servo parameter P0.00, which is a long parameter and can be set through the keypad.
For details, see Step 8 "Set long parameters (with 6 digits at least)" in "Operation flowchart" in section
5.2.1 "Display". Incorrect setting may cause abnormal running of the servo system or even a major
fault to the drive and motor.
1.2.2 Motor naming
No.
Description
Example
①
Product category
SV: Servo system product
②
Product series
M: Series M
C: Series C
S: Series S
