INVT DA180-S5R0SG0 User Manual

DA180 series basic AC servo drive Operating and running
-66-
5.2 Display and operating
5.2.1 Display

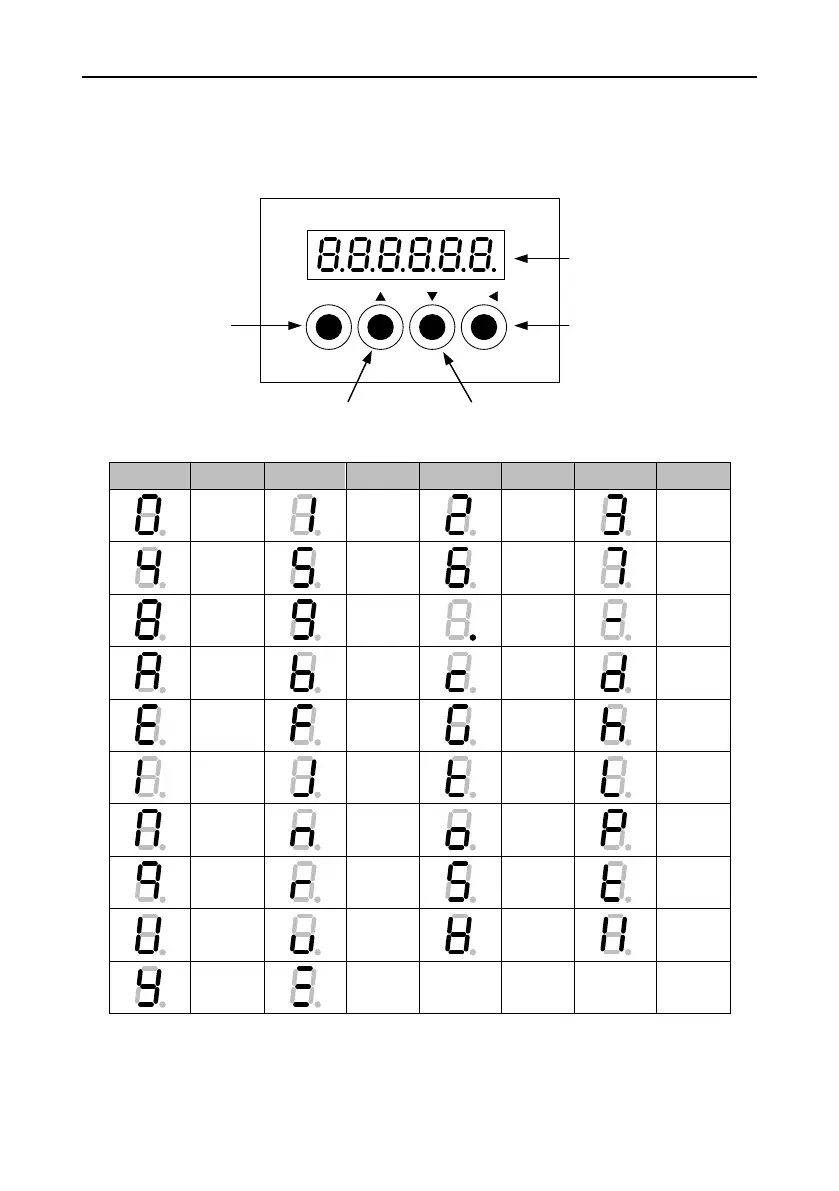

 Keypad diagram
MODE key
Display
SET/SHIFT key
UP key DOWN key
MODE SET/
 LED characters and meanings
Character
Meaning
Character
Meaning
Character
Meaning
Character
Meaning
0
1
2
3
4
5
6
7
8
9
.
-
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z

INVT DA180-S5R0SG0 Specifications

General

Model	DA180-S5R0SG0
Output Current	5.0A
Protection Level	IP20
Rated Current	5.0 A
Communication Interface	RS485
Rated Power	1.8kW
Feedback Type	Incremental Encoder
Protection Features	Overcurrent, overvoltage, undervoltage, overheat
