8.4 Upper computer software
8.4.1 ServoPlorer
ServoPlorer is the upper computer software for monitoring and commissioning DA180 servo driver. It
can:
 Monitor drive status parameters in real time.
 Modify drive parameters online.
 Support USB communication, and monitor the waveforms through four channels in real time with
a minimum resolution of 0.125ms.
 Save parameters to files in batches and download them to the servo driver in batches.
 Display and read faults.
 Provide independent function application interfaces (such as for frequency feature testing, inertia
identifying, jogging, and electronic cams)
8.4.2 Hardware
CPU
Pentium 4 or later
Memory
1G or greater
Hard disk
512M or greater
Screen resolution
1024×768 or higher
Communication interface
USB1.1
8.4.3 Software
Operating system
Windows XP, Vista, Windows7
.NET version
.NET Framework 4.0
Excel version
Excel 2007, 2010 or later

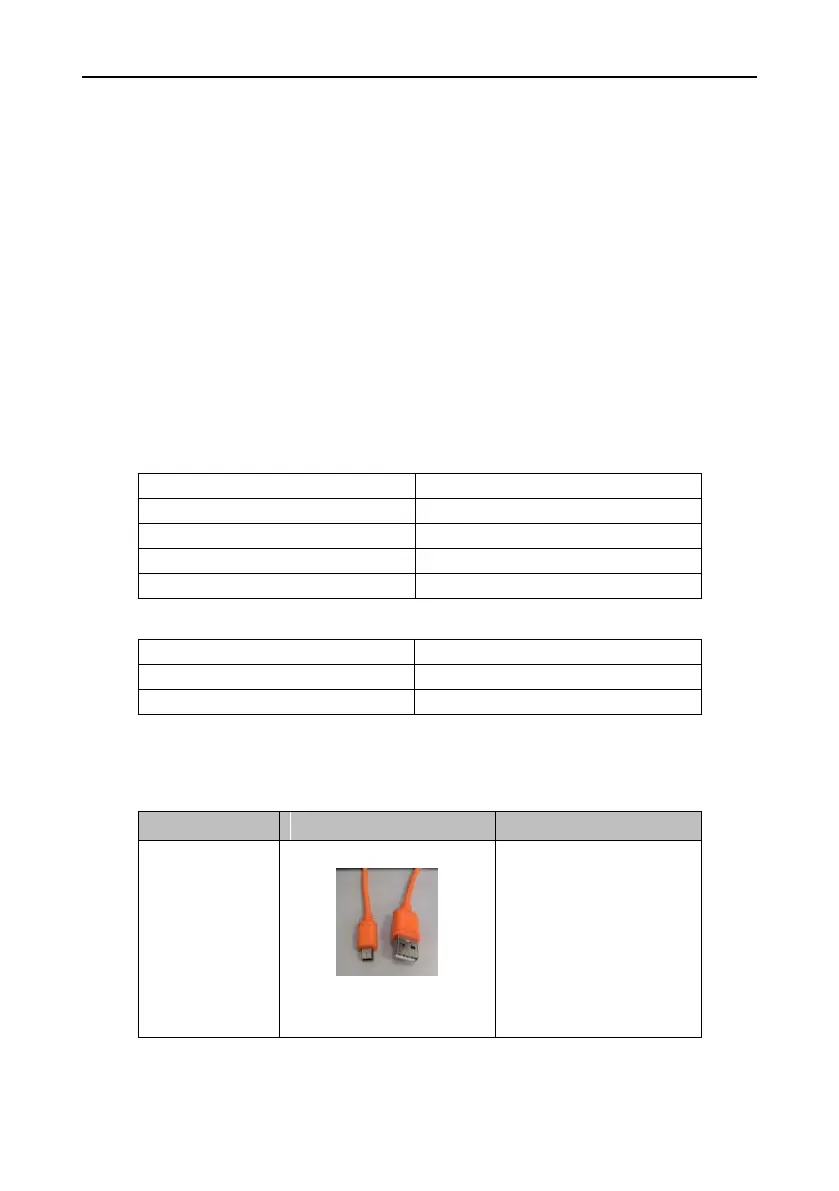

8.4.4 Communication connection
The servo driver can connect to a computer through the USB interface. See the following for the
connection.
Cable type
Appearance
Description
Mini-USB cable
Standard Mini-USB cable
After the servo drive is
powered on, you can
connect the servo drive to
the computer through the
USB cable and install the
designated the USB driver
program.
