INVT DA180-S5R0SG0

DA180 series basic AC servo drive Overview
-11-
No.
Description
Example

Serial no.
00: Standard part
01: Serial number for a non-standard part
...

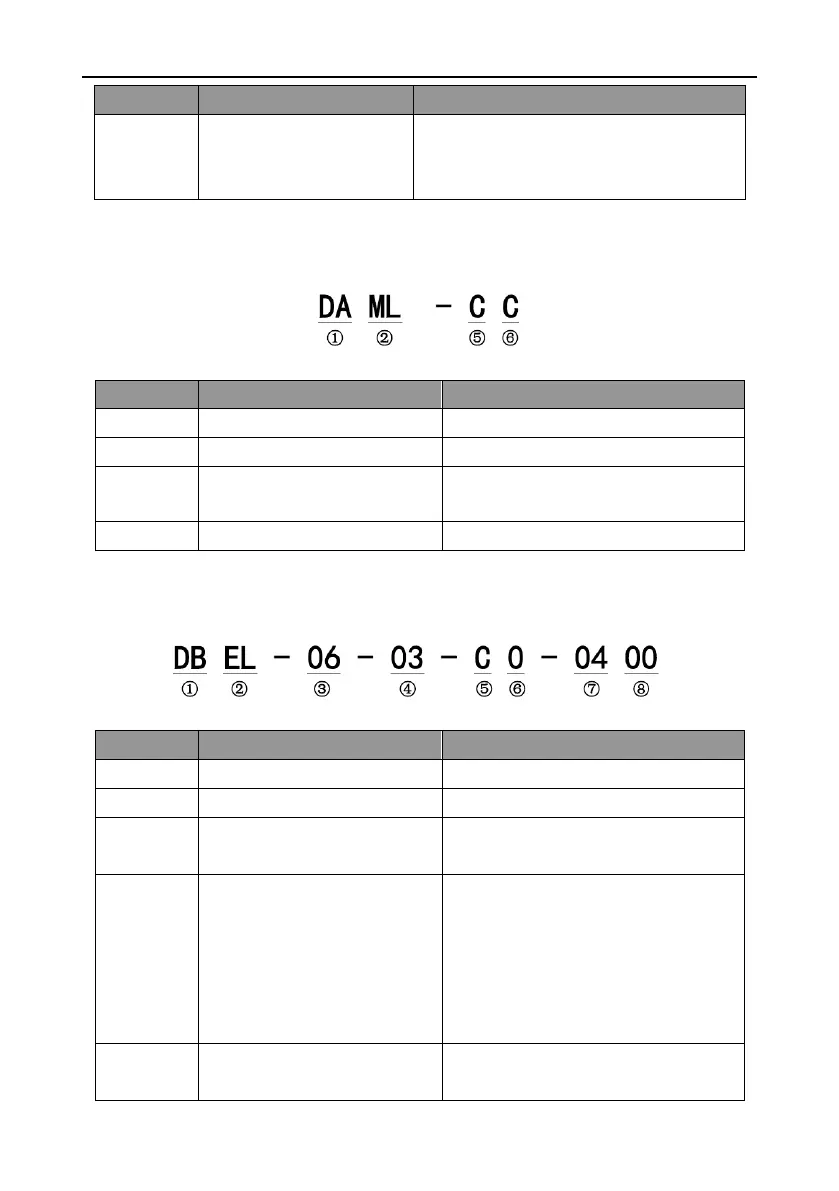

1.3.3 Power cable accessory naming
No.
Description
Example
①
Product series
Manufacturer use only
②
Power cable
ML: Power cable
⑤
Motor connection plug
B: 4-pin regular aviation plug YD28
C: 4-pin metal plug
⑥
Drive connection plug
C: European 3-pin 20A plug
1.3.4 Encoder cable naming
No.
Description
Example
①
Product series
Manufacturer use only
②
Encoder cable
EL: Encoder cable
③
Number of cores
06: 6-core cable
15: 15-core cable
④
Cable length
03: 3 meters
05: 5 meters
10: 10 meters
15: 15 meters
20: 20 meters
...
⑤
Motor connection plug
B: 15-pin regular aviation plug YD28
C: 9-pin metal plug
