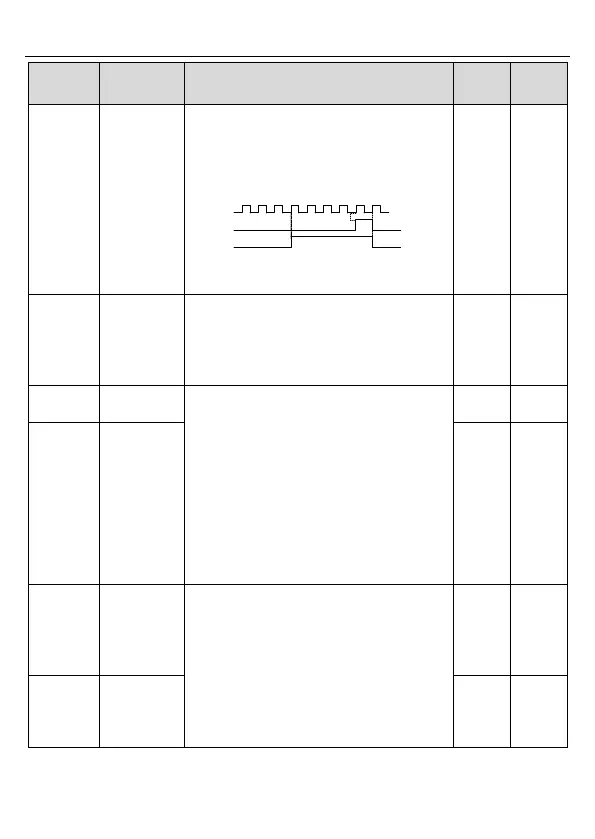

INVT GD10-0R7G-4-B User Manual

Goodrive10 Series Mini VFD Function parameters
-58-
Function
code
Name
Description
Default
Modify
recount before the next pulse.
The setting counting value P08.26 should be
no more than the setting counting value
P08.25.
The function is illustrated as below:
Y, RO
Si
Reach the set
counting value
Reach the designated
counting value
Setting range of P08.25:P08.26–65535
Setting range of P08.26:0–P08.25
P08.27
Set running
time
Pre-set running time of the VFD. When the
accumulative running time achieves the set
time, the multi-function digital output terminals
will output the signal of “running time arrival”.
Setting range:0–65535min
0m
○
P08.28
Auto fault
reset count
Auto fault reset count: When the VFD uses
automatic fault reset, it is used to set the
number of automatic fault reset times. When
the number of continuous reset times
exceeds the value, the VFD reports a fault
and stops.
Interval time of auto fault reset: Time interval
from when a fault occurred to when automatic
fault reset takes effect.
Setting range of P08.28:0–10
Setting range of P08.29:0.1–3600.0s
0
○
P08.29
Interval time
of auto fault
reset
1.0s
○
P08.32
FDT
electrical
level
detection
value
When the output frequency exceeds the
corresponding frequency of FDT electrical
level, the multi-function digital output
terminals will output the signal of “frequency
level detect FDT” until the output frequency
decreases to a value lower than (FDT
electrical level—FDT lagging detection value)
the corresponding frequency, the signal is
invalid. Below is the waveform diagram:
50.00Hz
○
P08.33
FDT lagging
detection
value
5.0%
○
