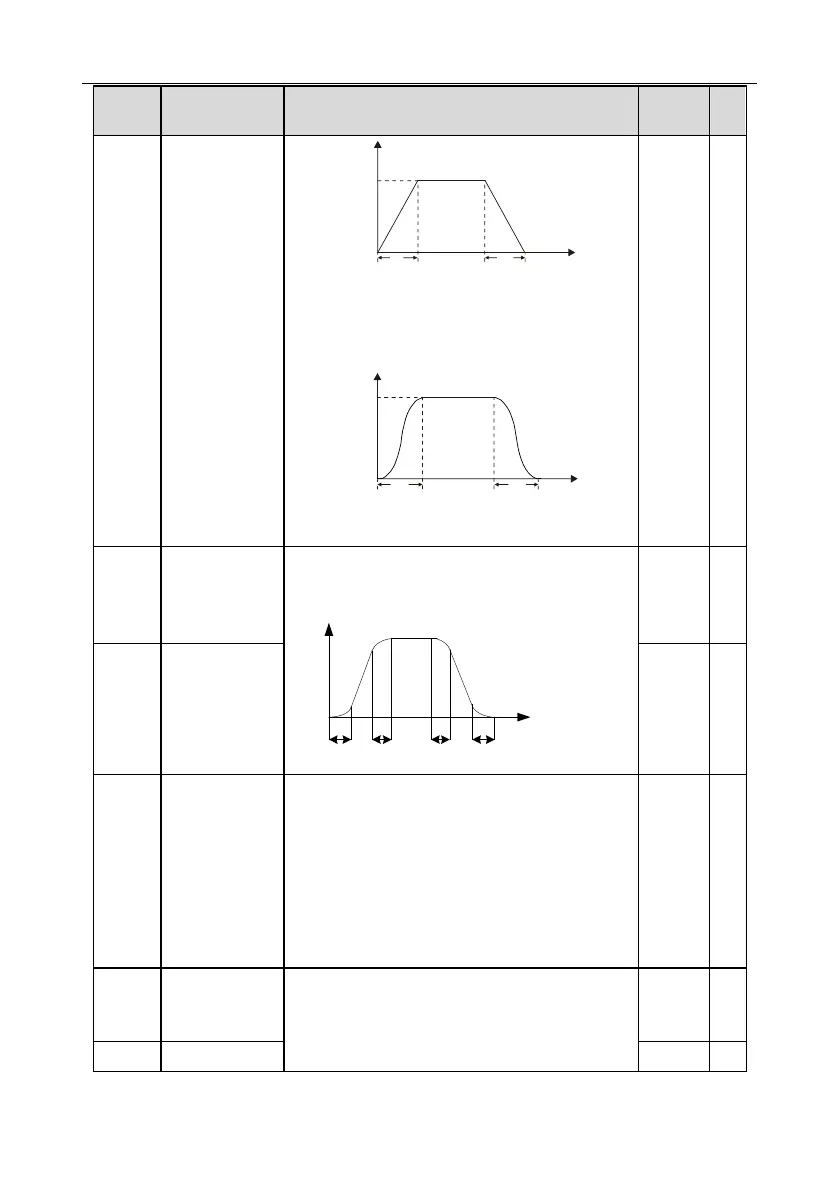

INVT Goodrive350 Series User Manual

Goodrive350 series high-performance multi-function inverter Chapter 6
-125-
Function
code
Name
Detailed parameter description
Default
value
Modi
fy
fmax
Output frequency f
t1 t2
Time t
1: S curve; the output frequency increases or
decreases in S curve;
S curve is generally used in cases where smooth
start/stop is required, eg, elevator, conveyer belt, etc.
Output frequency f
Time t
fmax
t1 t2
Note: When set to 1, it is required to set P01.06,
P01.07, P01.27 and P01.28 accordingly.
P01.06
Time of starting
section of
acceleration S
curve
The curvature of S curve is determined by
acceleration range and acceleration and
deceleration time.
Output frequency f
Time t
t1 t2 t3 t4
t1=P01.06
t2=P01.07
t3=P01.27
t4=P01.28
Setting range: 0.0–50.0s
0.1s
◎
P01.07
Time of ending
section of
acceleration S
curve
0.1s
◎
P01.08
Stop mode
0: Decelerate to stop; after stop command is valid,
the inverter lowers output frequency based on the
deceleration mode and the defined deceleration
time, after the frequency drops to the stop speed
(P01.15), the inverter stops.
1: Coast to stop; after stop command is valid, the
inverter stops output immediately, and the load
coasts to stop as per mechanical inertia.
0
○
P01.09
Starting
frequency of DC
brake after stop
Starting frequency of DC brake after stop; during
decelerating to stop, when this frequency is reached,
DC brake will be performed after stop.
Demagnetization time (waiting time of DC brake after
0.00Hz
○
P01.10
Waiting time of
0.00s
○
