however, if the torque boost is too large, the motor
will run at over-excitation, which will cause increased
output current and motor heat-up, thus degrading the
efficiency.
When torque boost is set to 0.0%, the inverter is
automatic torque boost.
Torque boost cut-off threshold: Below this frequency
threshold, the torque boost is valid, exceeding this
threshold will nullify torque boost.

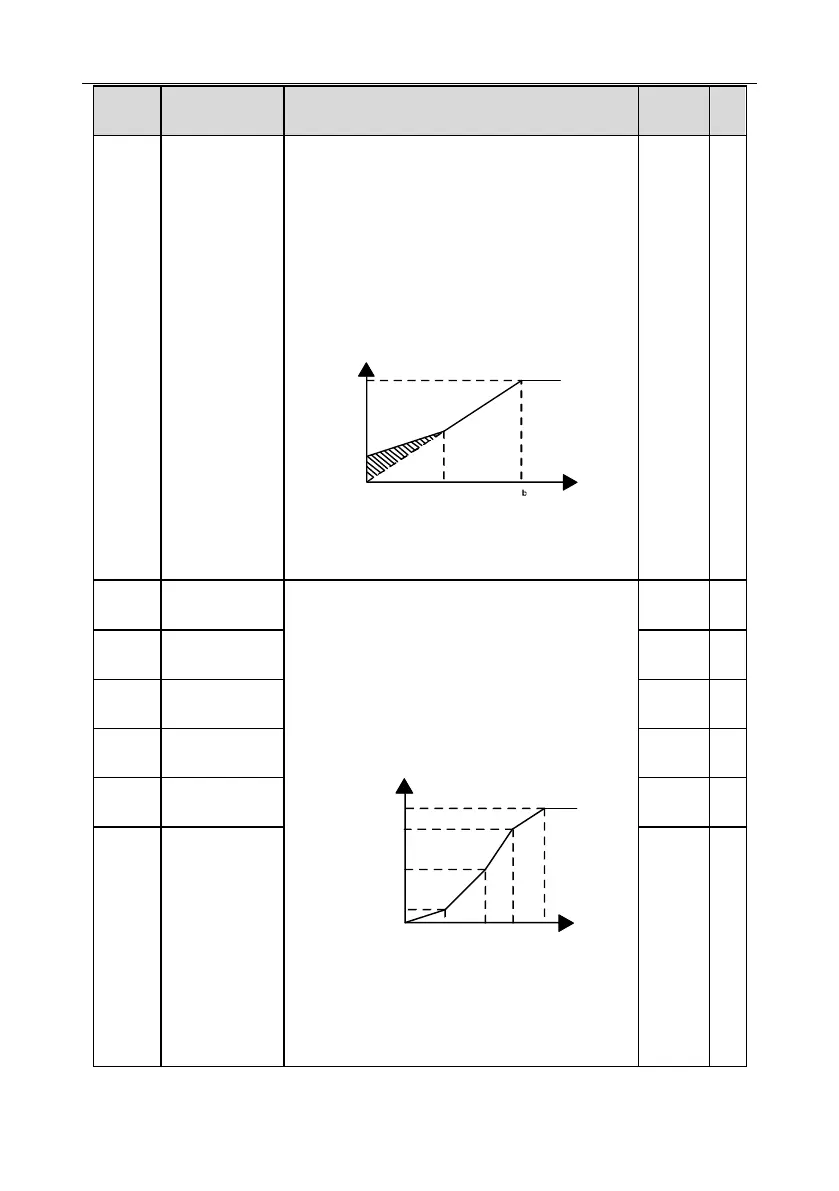

Output voltage
Output
frequency
Cut-off
boost
b
f
f
v
v
Setting range of P04.01: 0.0%: (automatic) 0.1%–
10.0%
Setting range of P04.02: 0.0%–50.0%
V/F frequency
point 1 of motor 1
When P04.00 =1 (multi-point V/F curve), users can
set V/F curve via P04.03–P04.08.
V/F curve is usually set according to the
characteristics of motor load.
Note: V1<V2<V3, f1<f2<f3. If low-frequency voltage
is set too high, motor overheat or burnt-down may
occur, and overcurrent stall or overcurrent protection
may occur to the inverter.
Output voltage
Output
frequency(Hz)
V1
V2
V3
f1 f2 f3
100.0%
b
f
b
V
Setting range of P04.03: 0.00Hz–P04.05
Setting range of P04.04: 0.0%–110.0% (rated
voltage of motor 1)
Setting range of P04.05: P04.03–P04.07
Setting range of P04.06: 0.0%–110.0% (rated
V/F voltage point
1 of motor 1
V/F frequency
point 2 of motor 1
V/F voltage point
2 of motor 1
V/F frequency
point 3 of motor 1
V/F voltage point
3 of motor 1
