INVT Goodrive350 Series

Goodrive350 series high-performance multi-function inverter Chapter 6
-172-
Function
code
Name
Detailed parameter description
Default
value
Modi
fy
T

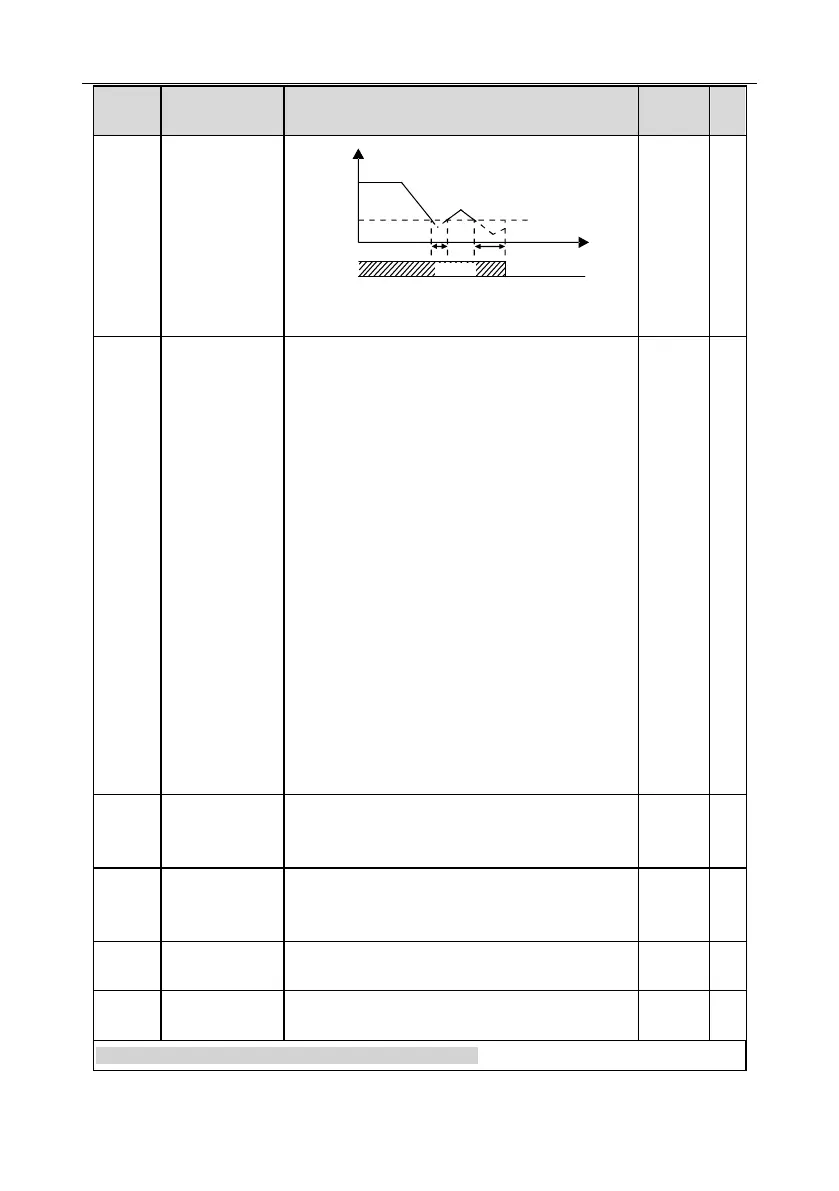

Output frequency
t1 t2
P09.11
t1＜T2, so the inverter
continues running
t2=P09.12
Running
Fault output PIDE
PIDE
Setting range of P09.11: 0.0–100.0%
Setting range of P09.12: 0.0–3600.0s
P09.13
PID control
selection
0x0000–0x1111
Ones:
0: Continue integral control after the frequency
reaches upper/lower limit
1: Stop integral control after the frequency reaches
upper/lower limit
Tens:
0: The same with the main reference direction
1: Contrary to the main reference direction
Hundreds:
0: Limit based on the max. frequency
1: Limit based on A frequency
Thousands:
0: A+B frequency, acceleration /deceleration of main
reference A frequency source buffering is invalid
1: A+B frequency, acceleration/ deceleration of main
reference A frequency source buffering is valid,
acceleration and deceleration are determined by
P08.04 (acceleration time 4).
0x0001
○
P09.14
Low-frequency
proportional gain
(Kp)
0.00–100.00
1.00
○
P09.15
Acceleration/
deceleration time
of PID command
0.0–1000.0s
0.0s
○
P09.16
Filter time of PID
output
0.000–10.000s
0.000s
○
P09.17–
P09.28
Reserved
variables
0–65536
0
○
P10 group Simple PLC and multi-step speed control
