INVT Goodrive350 Series

Goodrive350 series high-performance multi-function inverter Chapter 6
-173-
Function
code
Name
Detailed parameter description
Default
value
Modi
fy
P10.00
Simple PLC
mode
0: Stop after running once; the inverter stops
automatically after running for one cycle, and it can
be started only after receiving running command.
1: Keep running in the final value after running once;
The inverter keeps the running frequency and
direction of the last section after a single cycle.
2: Cyclic running; the inverter enters the next cycle
after completing one cycle until receiving stop
command and stops.
0
○
P10.01
Simple PLC
memory selection
0: No memory after power down
1: Memory after power down; PLC memories its
running stage and running frequency before power
down.
0
○
P10.02
Multi-step speed 0
Setting range of the frequency in 0
th
–15
th
sections
are -100.0–100.0%, 100% corresponds to max.
output frequency P00.03.
Setting range of the running time in 0
th
–15
th
sections
are 0.0–6553.5s (min), the time unit is determined by
P10.37.
When simple PLC operation is selected, it is required
to set P10.02–P10.33 to determine the running
frequency and running time of each section.
Note: The symbol of multi-step speed
determines the running direction of simple PLC,
and the negative value means reverse running.

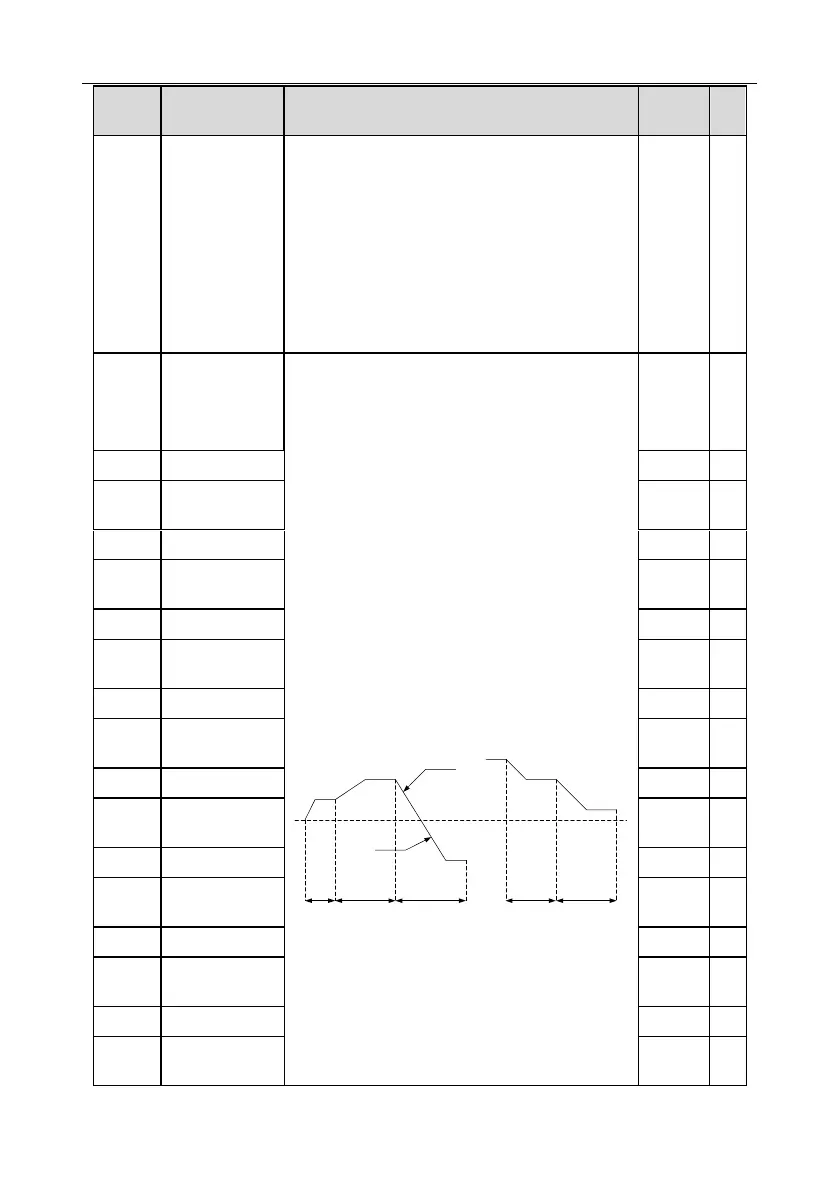

P10.02
P10.04
P10.06
P10.32
P10.30
P10.28
Deceleration time
(two sections)
Acceleration time
(two sections)
P10.03 P10.05 P10.07 P10.31 P10.33
When selecting multi-step speed running, the
multi-step speed is within the range of -fmax–fmax,
and it can be set continuously. The start/stop of
multi-step stop is also determined by P00.01.
Goodrive350 series inverter can set 16-step speed,
which are set by combined codes of multi-step
terminals 1–4 (set by S terminal, correspond to
0.0%
○
P10.03
Running time of
0
th
step
0.0s(min)
○
P10.04
Multi-step speed 1
0.0%
○
P10.05
Running time of
1
st
step
0.0s(min)
○
P10.06
Multi-step speed 2
0.0%
○
P10.07
Running time of
2
nd
step
0.0s(min)
○
P10.08
Multi-step speed 3
0.0%
○
P10.09
Running time of
3
rd
step
0.0s(min)
○
P10.10
Multi-step speed 4
0.0%
○
P10.11
Running time of
4
th
step
0.0s(min)
○
P10.12
Multi-step speed 5
0.0%
○
P10.13
Running time of
5
th
step
0.0s(min)
○
P10.14
Multi-step speed 6
0.0%
○
P10.15
Running time of
6
th
step
0.0s(min)
○
P10.16
Multi-step speed 7
0.0%
○
P10.17
Running time of
7
th
step
0.0s(min)
○
