Goodrive350 series high-performance multi-function inverter Chapter 5
-35-

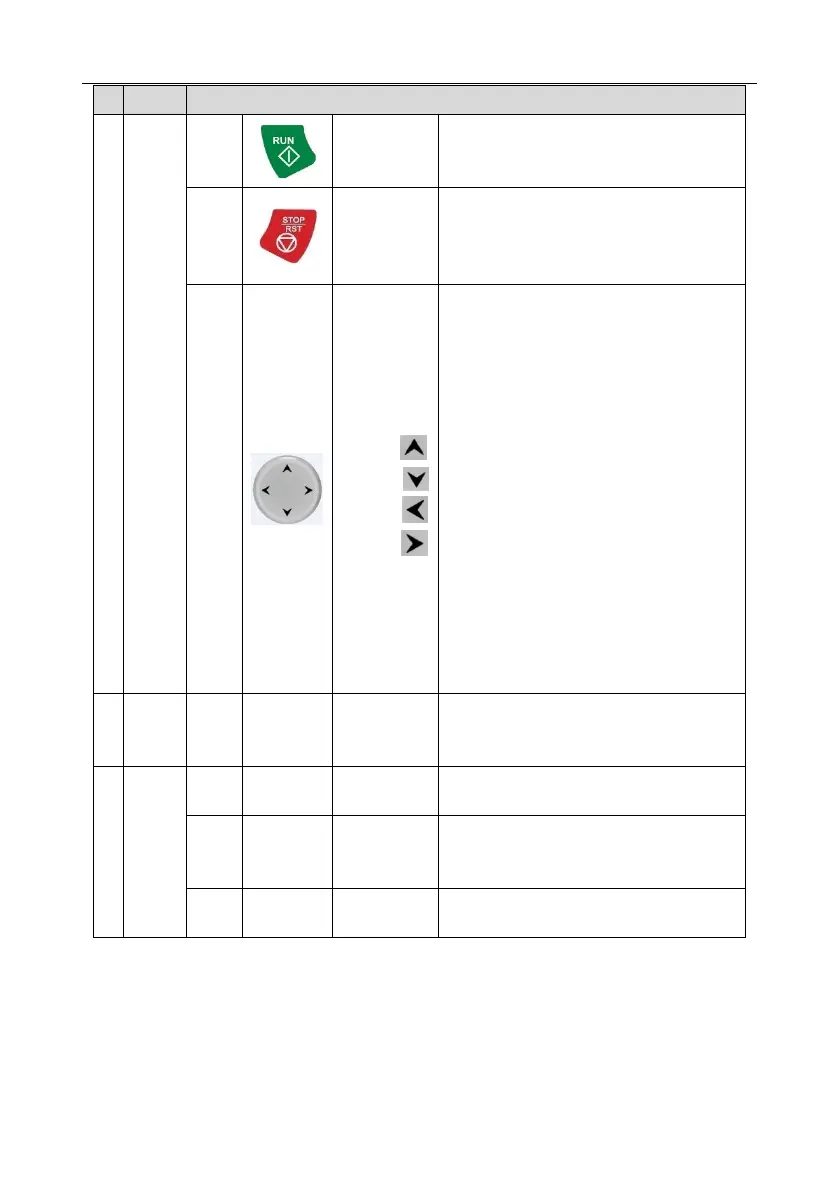

Under keypad operation mode, the running
key is used for running operation or
autotuning operation.
During running state, press the Stop/Reset
key can stop running or autotuning; this key is
limited by P07.04. During fault alarm state, all
the control modes can be reset by this key.
Direction key
UP:
DOWN:
LEFT:
RIGHT:
UP: The function of UP key varies with
interfaces, eg shifting up the displayed item,
shifting up the selected item, changing digits,
etc;
DOWN: The function of DOWN key varies
with interfaces, eg shifting down the
displayed item, shifting down the selected
item, changing digits, etc;
LEFT: The function of LEFT key varies with
interfaces, eg switch over the monitoring
interface, eg shifting the cursor leftward,
exiting current menu and returning to
previous menu, etc;
RIGHT: The function of RIGHT key varies
with interfaces, eg switch over the monitoring
interface, shifting the cursor rightward, enter
the next menu etc.
240×160 dot-matrix LCD; display three
monitoring parameters or six sub-menu items
simultaneously
RJ45 interface is used to connect to the
inverter.
Remove this cover when replacing or
installing clock battery, and close the cover
after battery is installed
The LCD has different display areas, which displays different contents under different interfaces. The
figure below is the main interface of stop state.
